high-quality JST connector harness

5 month ago

9 0 

2 year

Product details

As a professional connectivity solution provider, FUBON boasts solid supporting experience, mature process management and large-scale production capacity, fully meeting your needs for standard, customized and scenario-based connection solutions.

We focus on refined craftsmanship and scenario-oriented customization, with advantages in both electronic connection systems and automotive wiring. We have rich experience in producing high-precision car wire harness, premium Automotive Cables, and high-quality connector cables, adhering to strict quality standards to ensure stable performance.

Item	Details
Product Name	JST connector harness

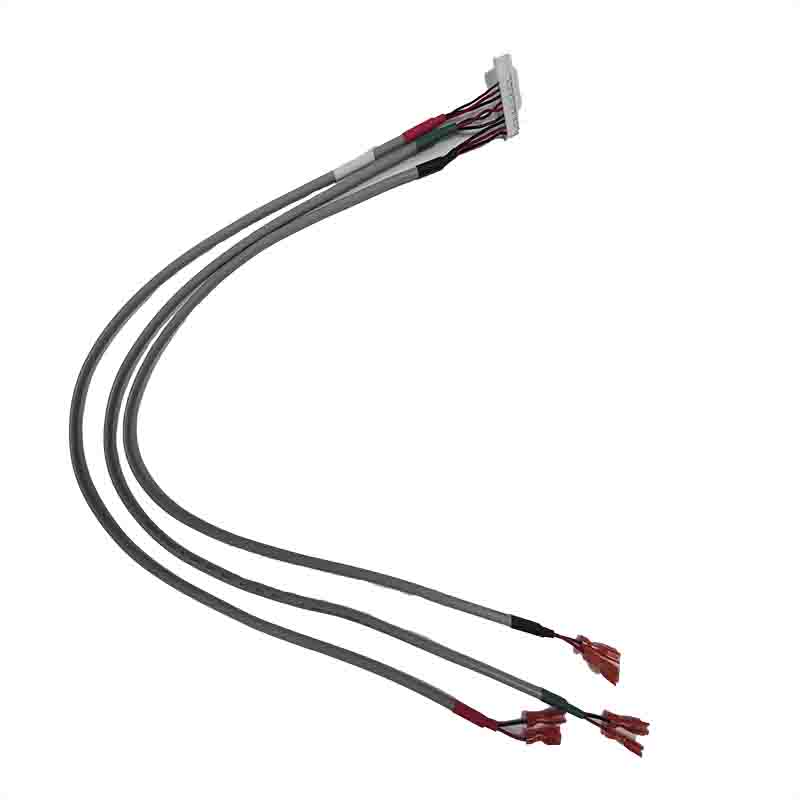

Appearance Features	1. Overall Structure: One end is a 12-pin white JST housing, the other end is split into three output branches, with red crimp terminals at the end; 2. Wire Specification: UL2464 22AWG tinned copper conductor, gray PVC outer jacket, wire length meets custom tolerance requirements; 3. Marking Design: Red, green, black, and white four-color heat shrink tubes are used to distinguish wire sequences, with production date printed on white tubes, and all heat shrink tubes must be flush; 4. Terminal Type: JST original crimp terminals at the housing end, TE original red crimp terminals at the end, available in large/small terminal specifications; 5. Appearance Standard: No deformation, missing material, blistering, scratches; no deformation, rust on pins, compliant with RoHS environmental requirements.
Electrical Performance	1. 100% continuity, no short circuit, open circuit, instantaneous disconnection or misalignment; 2. Withstand voltage test: DC 300V 10MS; 3. Continuity impedance: ≤2Ω MAX; 4. Insulation impedance: ≥10MΩ MIN; 5. Pull force between terminal and core wire: ≥5Lb(≥2.27KG).
Application Fields	Internal connection of equipment requiring 12-pin signal transmission such as automotive electronics, industrial control, smart home, consumer electronics, suitable for branch wiring and terminal crimping scenarios.
Production Standard	Compliant with RoHS environmental requirements, strictly follows drawing dimensional tolerances and electrical test standards.

This high-quality JST connector wire harness adopts original JST housing and genuine terminals, paired with UL2464 22AWG bend-resistant wires (length: 610±30mm, 580mm). It features stable conduction, excellent insulation, aging resistance and strong compatibility.

Widely used in automotive electronics, industrial control, smart home and consumer electronics, it provides safe, accurate and long-lasting signal transmission, effectively reducing signal loss and connection failures.

FUBON adheres to green production, using environmentally compliant raw materials and strict quality control. We also offer efficient customized services to meet your specific drawing and application needs, ensuring stable and reliable connectivity solutions for every project.
