4.2mm Pitch 5557 WAFER Pin header Connector Dual Row SMT 18P

4 month ago

9 0 

2 year

Product details

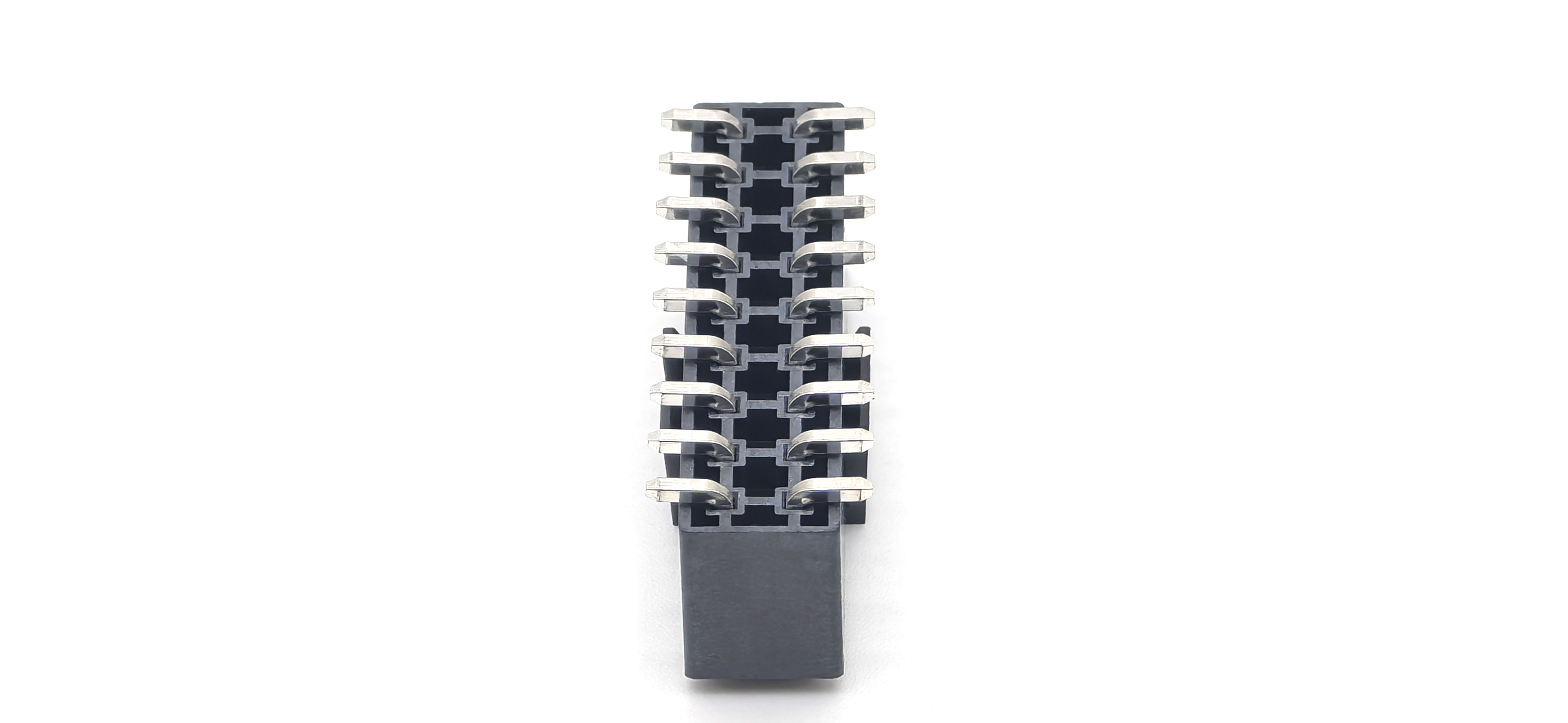

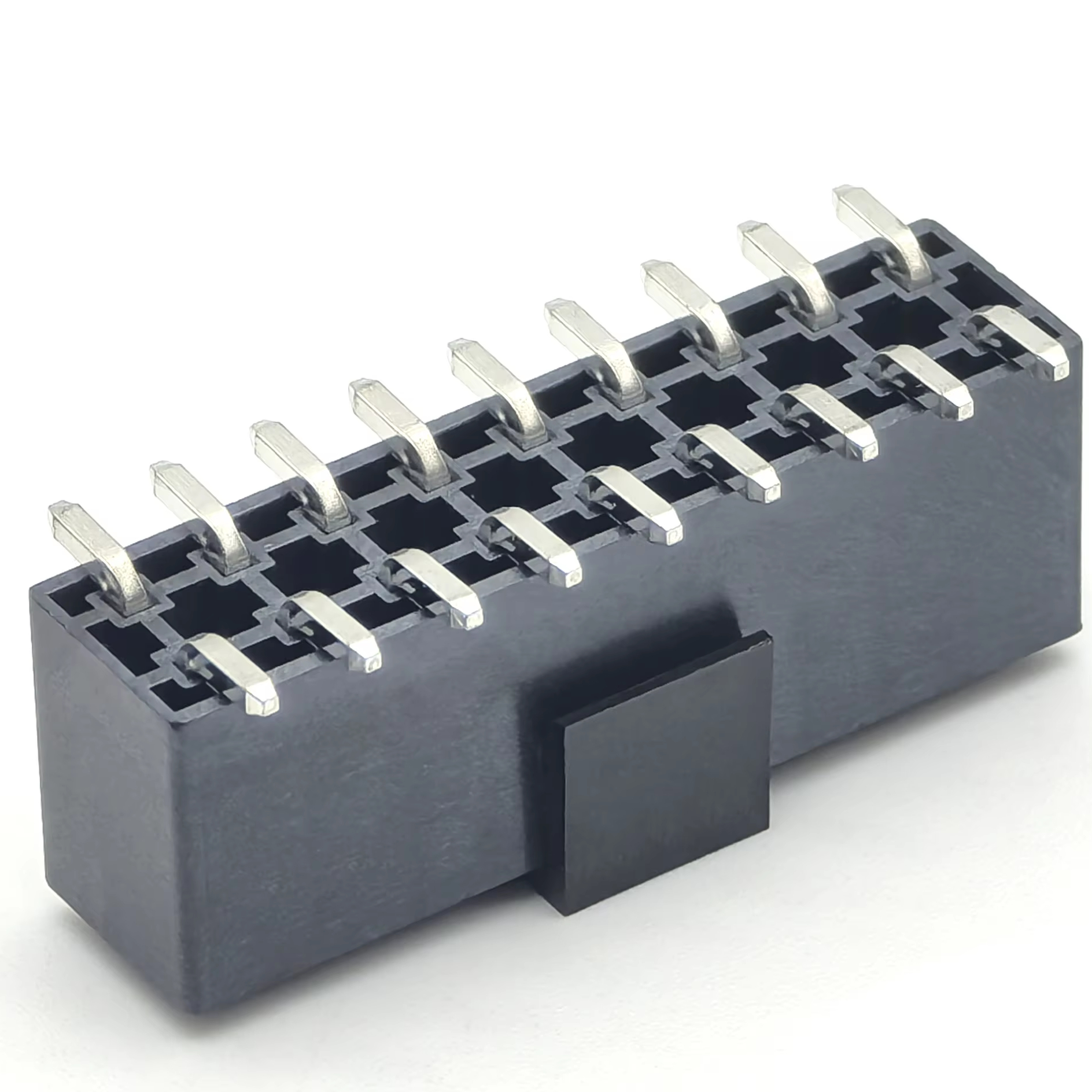

4.2mm WAFER Pin header Dual Row 18P

Designed for reliable PCB connections,the YZTECH 4.2mm WAFER Pin header Dual Row 18P features a dual-row configuration with 9 pins per row,totaling 18 positions.This 4.2mm wafer pin header dual row follows DIN-type specifications,making it suitable for industrial control,power supply units,and automotive electronics where vibration resistance and secure mating are required.The compact rectangle shape saves board space while allowing easy alignment during assembly.Rated at 7A and 250V,the 4.2mm wafer pin header smt handles moderate power and signal transmission efficiently.With an operating temperature range from -40℃to +105℃,this 4.2mm wafer pin header 18p performs consistently in harsh thermal environments,from cold storage equipment to engine-adjacent modules.It could be found in the Wafer Housing Terminal of the catalog.

Built for durability,the contact system uses high-conductivity copper alloy with a tin plating finish.The insulator is molded from LCP,a high-strength material that provides dimensional stability under heat and humidity,meeting UL94 V-0 flammability requirements.Unlike standard nylon or PBT,LCP resists warping during reflow soldering processes.The tin-plated contacts also support lead-free soldering and deliver low insertion force,reducing assembly stress.Rated current 7A and voltage 250V make it compatible with many wire-to-board applications.

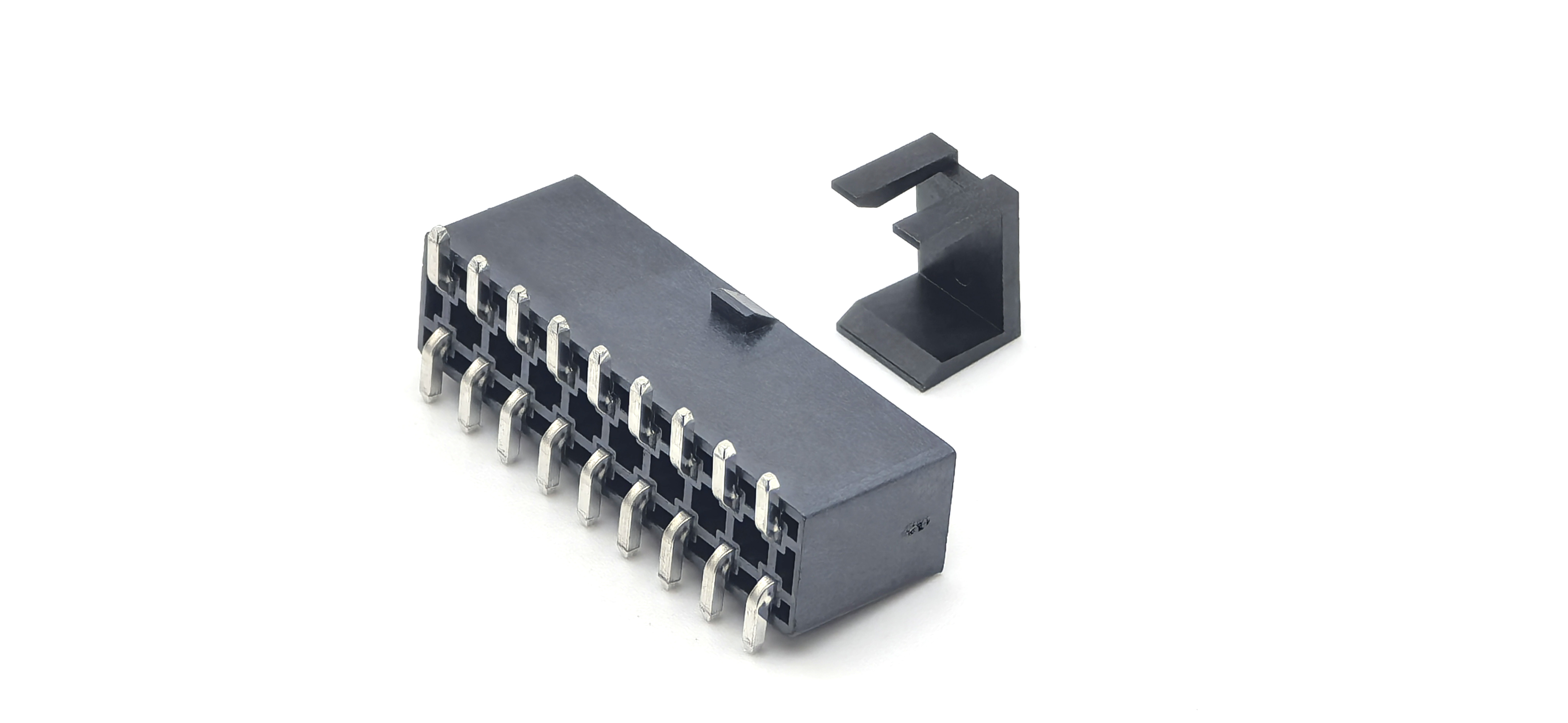

4.2mm wafer pin header smt

Supplied in reel packaging,the YZTECH Quality Terminal Solutions streamline high-volume production.Each reel maintains uniform coplanarity and orientation,minimizing downtime.
