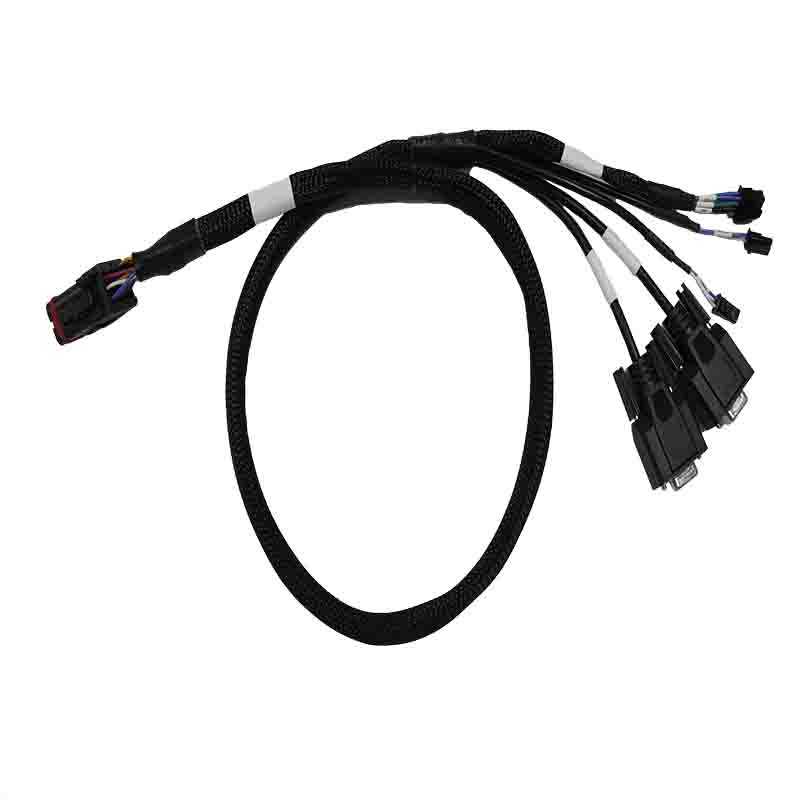

18P Male to MX & Dual DB9 Female Cable Assembly
4 month ago
Product details
FUBON owns professional manufacturing strength and rich industry experience in automotive connection solutions. We focus on innovative design and precise production of custom cable assembly and wiring harness, and keep improving the craftsmanship of custom wire harness assembly. We supply stable and durable car wiring cables for various vehicle models, and offer reliable connector cables to meet diverse industrial and automotive connection demands worldwide.
This multi-branch integrated harness adopts a 18Pin main connector and matches multiple extended interfaces such as DB9 and MX series. With scientific branch arrangement and tidy internal routing, the whole harness is compact, highly integrated and easy to install. It can work perfectly with OBD diagnostic cable to realize efficient vehicle data reading and equipment connection.
| Item | Description |
| Product Name | 18P Male to MX & Dual DB9 Female Cable Assembly |
| Core Structure | Multi-branch split harness: • Input: P1 18P male automotive connector (母端子，multi-signal integration) • Outputs: 6 independent branches: 1×MX-8P male, 2×DB-9P male, 2×MX-2P male, 1×MX-2P male |
| Length | • Total main harness length: 800±20mm • Branch lengths: 30±5mm / 40±5mm (varies by connector) • Coiled packaging dimension: 1000±30mm |

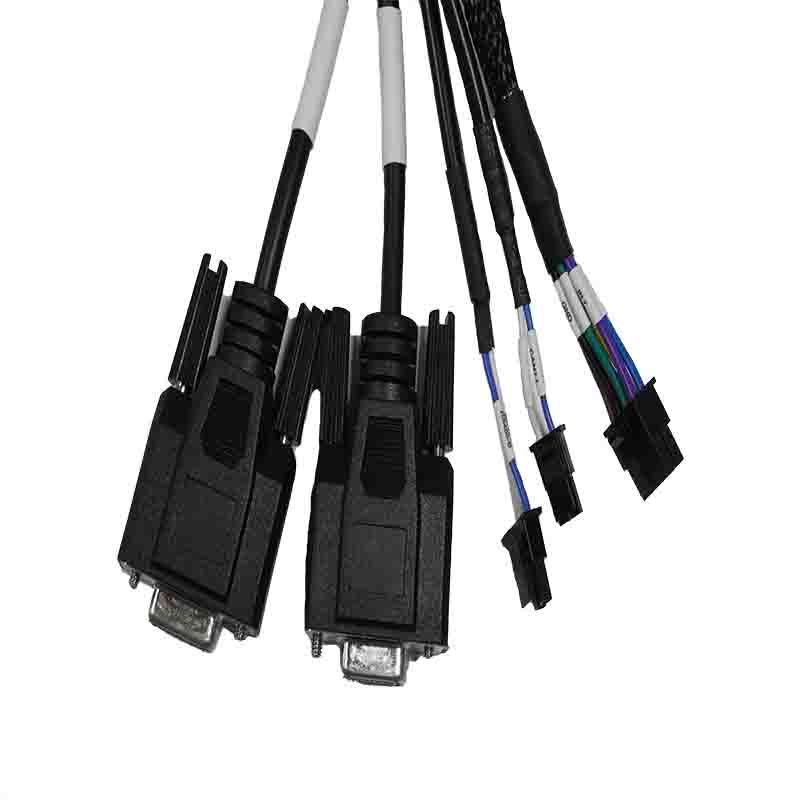

| Appearance Features | 1. Protection & Sleeving: Main cable wrapped with black expandable braided PET sleeve (anti-abrasion, flame-retardant); branches partially sleeved for protection 2. Connectors: - P1: Black 18P automotive male plug with red sealing ring, secure locking mechanism - Outputs: 2×DB-9P D-sub male connectors, 3×MX-series male connectors (MX-8P/2P), all with molded strain relief 3. Cable & Color Coding: Multi-core twisted-pair wires (GPIO, COM, RS485, CAN signals), color-coded (orange/brown/red/black/yellow/green/blue/purple/white) for easy identification 4. Assembly Details: Splits wrapped with electrical tape for strain relief; each branch clearly routed and bundled |
| Product Advantages | 1. Multi-Protocol Integration: Single input to 6 multi-type outputs, supporting GPIO, RS485, CAN and serial communication 2. Rugged Construction: Braided sleeve, strain relief, and secure locking connectors ensure long service life in harsh environments 3. Customizable Design: Tailored pinouts, lengths, and connector configurations for specific system requirements 4. Signal Stability: Proper twisted-pair and shielding design ensures reliable multi-signal transmission |
| Core Material Specifications | 1. Connectors: 1×18P automotive male plug, 2×DB-9P male plugs, 3×MX-series male plugs 2. Wire: Multi-core automotive-grade wires (color-coded for different signals) 3. Protection: Black braided PET sleeve, electrical tape, molded strain relief at connectors 4. Packaging: Coiled with cable tie, packed in bag |
Designed for professional maintenance and testing work, this high-performance car diagnostic cable adapts to complex working environments. The outer layer is covered with high-density braided sleeve, which greatly improves wear resistance, corrosion resistance and anti-interference ability. Reinforced processing at split points and connector ends effectively prevents wire breakage caused by daily extrusion and repeated bending.
Adopting premium automotive-grade core wires, this harness delivers stable signal transmission and outstanding electrical performance. Each connector is precisely processed for tight insertion and firm locking, ensuring long-term stable operation. It is widely applicable to automotive electronic systems, industrial detection equipment and mainstream OBD testing tools.
Focusing on both customized development and standardized production, FUBON always adheres to strict quality inspection standards. We insist on providing qualified wiring accessories with stable quality, and create cost-effective connection products for global customers.
