Aviation plug, male socket

5 month ago

15 0 

2 year

Product details

As a core custom product from FUBON, a forward-thinking innovator in the global wiring harness industry, the 6-Pin Aviation Male Socket Wire Harness offers rugged industrial-grade reliability to safeguard 220V power input, filter connection and grounding systems for various equipment, integrating the precision of car wire harness manufacturing into industrial applications.

FUBON stands out with dual expertise in industrial and automotive wiring, boasting a proven track record in high-performance Automotive Cable Assembly and industrial harnesses. We combine innovation with strict quality management, focusing on tailored solutions for diverse sectors.

Backed by years of cross-sector R&D, mature production processes and industry-compliant solutions, FUBON delivers high-quality industrial power connections. We also excel in premium vehicle electrical cables, leveraging cross-sector expertise to enhance product reliability.

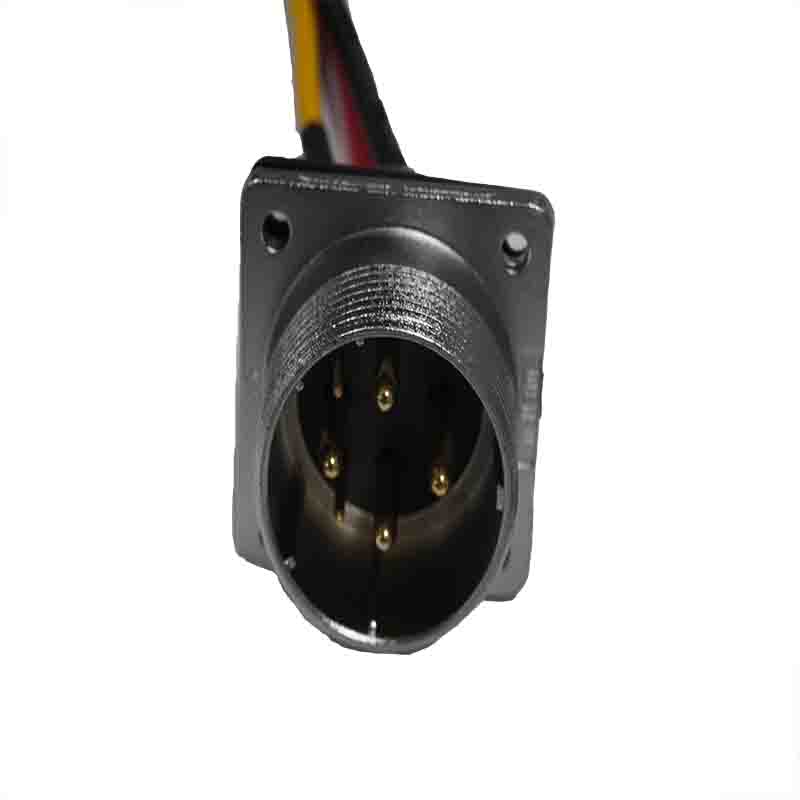

This harness features a corrosion-resistant 6-pin aviation male socket, paired with UL1015 12AWG silicone wires as durable as our top-tier connector cables, offering precise length control, excellent temperature resistance, anti-aging and anti-interference performance.

Item%	Details
Product Name	Aviation plug, male socket
Length Specification	Total finished length: 650±20mm, effective length at terminal end: 240±10mm, tail reserve for single wire: 20±5mmTotal finished length: 400±10mm, effective wire length: 410mm
Wire Specification	UL1015 12AWG 65/0.254TS OD:3.9 Silicone Wire, temperature resistance: -40℃~105℃, wire cores in red, black, yellow with green stripe
Dual-End Connectors	P1 End: PH-4P H.S.G (PHB2.0-4P, 1*4, housing with latch); P2 End: 4P H.S.G (PHB2.0 female terminal)

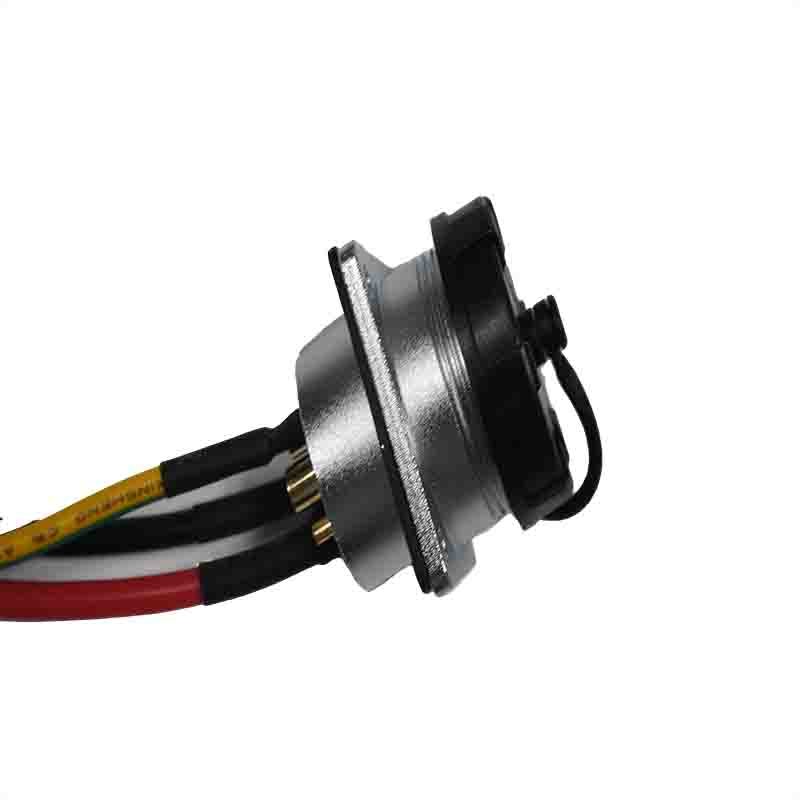

Appearance Features	1. Metal aviation male socket with black dust cap, 3 red/black/yellow-green striped silicone wires with neat branching;2. Clear printing on wires,3. Firmly crimped terminals, RoHS compliant clear identification on heat shrink tubes (marked with "220V Filter Input / GND"), free of deformation, scratches, peeling and other defects;
Application Fields	Industrial equipment, 220V power input, filter connection, electromechanical equipment, automation equipment, outdoor power systems and other scenarios, for stable power and grounding connection
Core Technical Parameters	1. 100% continuity, no short circuit, open circuit, intermittent connection or misalignment;2. Test voltage: DC 300V 10MS;3. Conduction resistance:4. Insulation resistance: 10MΩ MIN 2Ω MAX;

With neatly branched three-color wire cores, clear markings, secure crimped terminals and a dust cap for outdoor protection, its precision—inspired by Automotive Cable Assembly—also suits specialized automotive auxiliary equipment. Ideal for industrial equipment, automated lines, electromechanical devices and outdoor power systems, it ensures stable power supply and signal transmission, adhering to the same quality standards as our car wire harness and vehicle electrical cables.

FUBON upholds strict full-process quality control and is committed to meeting diverse customized needs, delivering reliable, tailored solutions beyond just manufacturing.

Choosing FUBON means stable components, consistent quality and custom harnesses, making your industrial and automotive-related projects safer and more efficient.
