OBDII-16P male connector to OBDII-16P female connector
5 month ago
Product details
As a premium custom tailored product of FUBON, the OBDII-16P Male to Dual OBDII-16P Female Wire Harness brings professional and stable working efficiency, serving as a practical and high-performance expansion solution for various automotive diagnostic scenarios, and is a must-have premium OBDII cable for auto repair and vehicle debugging.
As a trusted manufacturer focusing on refined wiring harness manufacturing and automotive connection solutions, FUBON has built solid technical strength through long-term technical precipitation and continuous process optimization in the wiring harness field, sticking to strict manufacturing standards and focusing on creating reliable automotive connection accessories. Relying on mature and stable assembly procedures, industry-standard connection designs and complete quality inspection links, we are devoted to supplying high-standard automotive diagnostic wiring harness solutions, with our automotive OBDII cable series widely recognized by global customers for its stable performance.
This 1-to-2 dual-port OBD harness is equipped with a standardized OBDII-16P male connector, and is universally compatible with Mercedes-Benz blue female connectors and Hyundai black female connectors at the same time. It strictly ensures full pin-to-pin one-to-one precise conduction and standardized wire color matching, with no signal cross or poor contact. Matched with high-spec UL2464 PVC insulated wires, this refined car OBDII cable features accurate length customization, outstanding high and low temperature resistance, excellent wear resistance and strong anti-interference performance, keeping stable transmission even in complex vehicle working environments.
| Item | Details |
| Product Name | OBDII-16P Male to Dual OBDII-16P Female |
| Length Specification | Wire cutting size: 2×330±10mm; Finished length: 330mm; Reserved length at P3 terminal tail: 30±5mm |

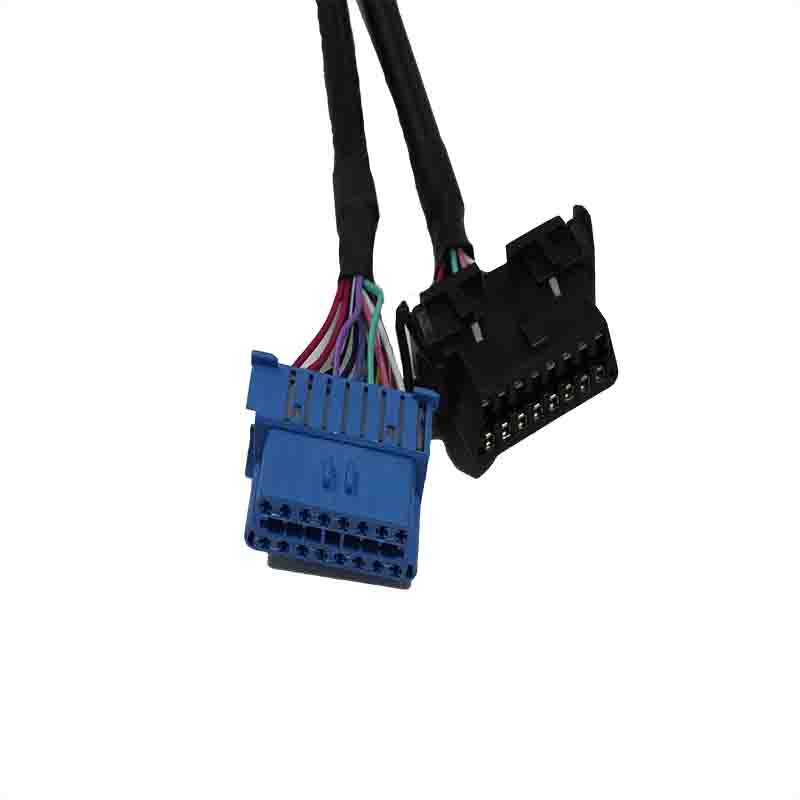

| Connector Specification | P1 End: OBDII-16P Male (Black PA66 FB, splitted housing);P2 End: OBDII-16P Female (Mercedes version, Blue housing, Gray latch);P3 End: OBDII-16P Female (Hyundai version, Black housing, Two Gray latches) |
| Wire Specification | UL2464 OD:10.0 20AWG*16C+AL Black PVC wire; Wire cores include full 16 PINs matched with colors: Brown, Orange, Yellow, Black, Green, Blue, Purple, Gray, White, Pink, Red, Light Green, Light Blue, Light Purple, etc. |
| PIN Assignment | P1 Male Pin 1-16 are fully connected to P2 Mercedes Female and P3 Hyundai Female Pin 1-16 with one-to-one correspondence; Wire colors perfectly match PIN definitions. |
| Appearance Features | 1. Overall black double-branched cable with P1 black OBD male header, P2 blue Mercedes female header, and P3 black Hyundai female header for clear identification;2. Clear printing on the cable surface, heat shrink tube protection at branch points, free of deformation, scratches, peeling, rust and other defects;3. Firmly crimped terminals, all materials comply with RoHS environmental standards. |
| Application Fields | Automotive OBD diagnosis systems, in-vehicle diagnostic device expansion, automotive modification, vehicle fault detection, in-vehicle electronic device connection, etc., used for OBD interface 1-to-2 expansion. |
| Environmental Requirement | All materials comply with RoHS environmental standards. |
It is ideally suitable for daily automotive OBD system diagnosis, in-vehicle electronic device expansion, vehicle fault code detection, automotive refitting and wiring upgrading and other diversified scenarios, realizing simultaneous connection of multiple devices to the vehicle OBD interface, and providing a safe, stable and hassle-free connection guarantee for daily repair, detection and refitting work.
FUBON always takes sophisticated manufacturing technology and full-process strict quality control as the core, from raw material selection to finished product delivery, every procedure is strictly checked, and we fully respond to and meet the personalized customized needs of customers around the world.Opting for FUBON means choosing sturdy and durable accessories, consistent and reliable product quality, and exclusive customized wiring solutions that fit actual demands, escorting the safety and efficiency of every automotive connection and diagnostic project.
