Cummins 9P male to female and OBD female connectors
5 month ago
Product details
As a flagship custom solution from FUBON, the Cummins 9-Pin Male to 9-Pin Female & OBD Female Y-Type Wiring Harness brings exceptional compatibility and reliability, offering a streamlined expansion solution for commercial vehicle diagnostic and maintenance scenarios.
Built around precision-engineered Cummins 9P male-to-female and OBD female connectors, this assembly represents the high standard of our automotive cable and connectors lineup, designed to support stable signal transmission in demanding working environments.
With years of focused R&D in automotive wiring systems, refined manufacturing processes, and full compliance with global connection standards, FUBON specializes in developing premium commercial vehicle diagnostic solutions centered on high-performance Automotive Diagnostic Connector Cables And Wires. We continuously optimize material selection and structural design to ensure our products perform reliably under long-term use.
| Item | Details |
| Product Name | Cummins 9-Pin Male to 9-Pin Female & OBD Female |
| Length Specification | Wire cutting size: 2×330±20mm; Finished length: 330mm; Reserved length at OBD terminal tail: approx. 40mm |

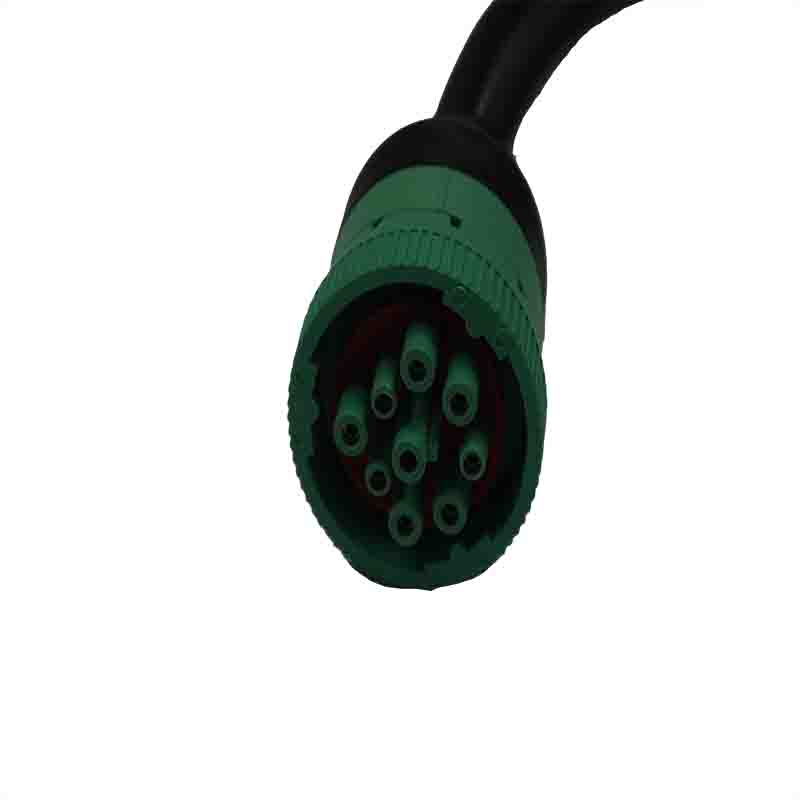

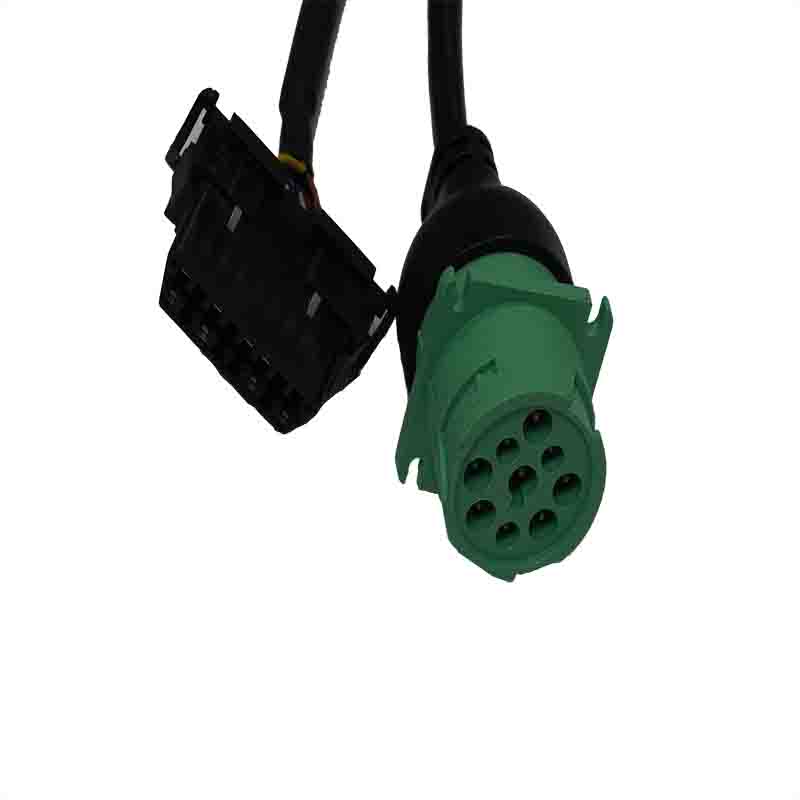

| Connector Specification | P1 End: Cummins 9-Pin Male (female pins, grass-green body with 3 small holes); P2 End: Cummins 9-Pin Female (male pins, grass-green body); P3 End: OBDII-16P Female (Hyundai version, black body with two gray latches) |
| Wire Specification | UL2464 OD:7.5 20AWG*8C+AL Black PVC wire; Wire cores include 8 colors matched with pins: Black, Brown, Red, Orange, Yellow, Green, Blue, White |
| PIN Assignment | P1 Cummins 9-Pin Male Pin A-J are fully connected to P2 Cummins 9-Pin Female Pin A-J and corresponding pins of P3 OBDII-16P Female with one-to-one correspondence; Wire colors perfectly match PIN definitions. |
| Appearance Features | 1. Overall black double-branched cable with P1 black OBD male header, P2 blue Mercedes female header, and P3 black Hyundai female header for clear1. Overall black Y-type branched cable. P1/P2 ends feature grass-green Cummins 9-pin connectors, and P3 end has a black OBD female connector for high recognition; 2. Clear printing on the cable surface, heat shrink tube protection at branch points, free of deformation, scratches, peeling, rust and other defects; 3. Firmly crimped terminals, all materials comply with RoHS environmental standards. |
| Application Fields | Cummins engine diagnosis, heavy-duty truck/construction machinery vehicle testing, OBD diagnostic expansion, vehicle fault detection, in-vehicle electronic device connection, etc. |
| Environmental Requirement | All materials comply with RoHS environmental standards. |
This Y-shaped diagnostic harness adopts a standard Cummins 9-pin male connector, supporting both a Cummins 9-pin female connector and a Hyundai-Kia OBDII-16P female connector. It achieves full pin-to-pin precise conduction and strictly follows industry standard wire color coding. Equipped with high-spec UL2464 PVC cables that meet the requirements of a professional OBDII cable, it features accurate length control, outstanding resistance to high and low temperatures, and excellent anti-interference performance.
Whether used as a dedicated OBD diagnostic cable or a practical OBD Diagnostic Cable Adapter, this product performs exceptionally well in Cummins engine testing, heavy-duty truck and construction machinery fault diagnosis, OBD port expansion, and multi-device diagnostic connection scenarios. It provides safe, stable, and convenient support for vehicle diagnosis and equipment connection.
At FUBON, we uphold a quality-centric philosophy supported by deep technical accumulation and full-cycle quality management. We continuously refine our production system to better satisfy diverse customized requirements from global clients. By choosing FUBON, you gain access to durable components, consistent quality control, and fully personalized harness solutions, ensuring your diagnostic and engineering projects operate more safely, stably, and efficiently.
