DB22-280H8 Infrared Belt Tension Tester

6 month ago

38 0 

2 year

Product details

【Product Details】

The infrared belt tension meter is a portable measuring tool used for quickly measuring the tension of belts on motors and other machinery. This device collects the vibration frequency of the belt in its natural state through infrared emission and reception in a non-contact manner. Then, by combining the mass per unit length of the belt and the length of the free section input by the user, it automatically calculates the accurate tension value of the belt. This instrument is easy to operate. The measurement process does not require direct contact with the belt and is suitable for a variety of industrial scenarios.The core function of the Belt tension meter is to help users ensure that the belts in the transmission system are in an appropriate tension state. Appropriate tension plays a significant role in ensuring mechanical transmission efficiency, reducing belt wear and prolonging the service life of equipment. By measuring the vibration frequency of the belt and inputting relevant parameters, this instrument can quickly display the tension reading, replacing traditional empirical methods such as hand feel assessment or tapping to listen, and improving the objectivity and consistency of the measurement.The Handheld belt tension gauge features portability and handheld operation. This device usually features a lightweight design and a clear display interface, making it suitable for on-site rapid detection of flat belts, V-belts or multi-ribbed belts used in motors, fans, pumps and other equipment. The user only needs to align the instrument with the vibrating belt, trigger the measurement, and input the necessary parameters to obtain the tension value.Therefore, the infrared belt tensiometer provides a rapid and non-contact method for tension detection by measuring the vibration frequency of the belt and combining it with the parameters set by the user. Digital belt tension testerRegular inspection and adjustment of belt tension during industrial maintenance and installation help maintain the stable operation of the transmission system and reduce faults caused by improper tension.

【Product Applications】

Cooling tower fan: The fan drive belt of large industrial cooling towers works in a humid environment with large temperature differences, and the tension is prone to change.

Automobile assembly line: It is used to test whether the initial tension of the front-end accessory drive system of the engine (such as the multi-ribbed belts used in generators, water pumps, air conditioning compressors, etc.) is qualified after installation.

Power plant: Belt drive systems for various large auxiliary equipment such as water pumps, fans, and supply fans.

【Product Features】

Infrared sensors are used for direct measurement, which is more convenient than mechanical sensors.

Split-type sensors are very small in size and are suitable for measurement in confined Spaces.

Readings can be displayed in either metric or imperial units.

It has an automatic shutdown function.

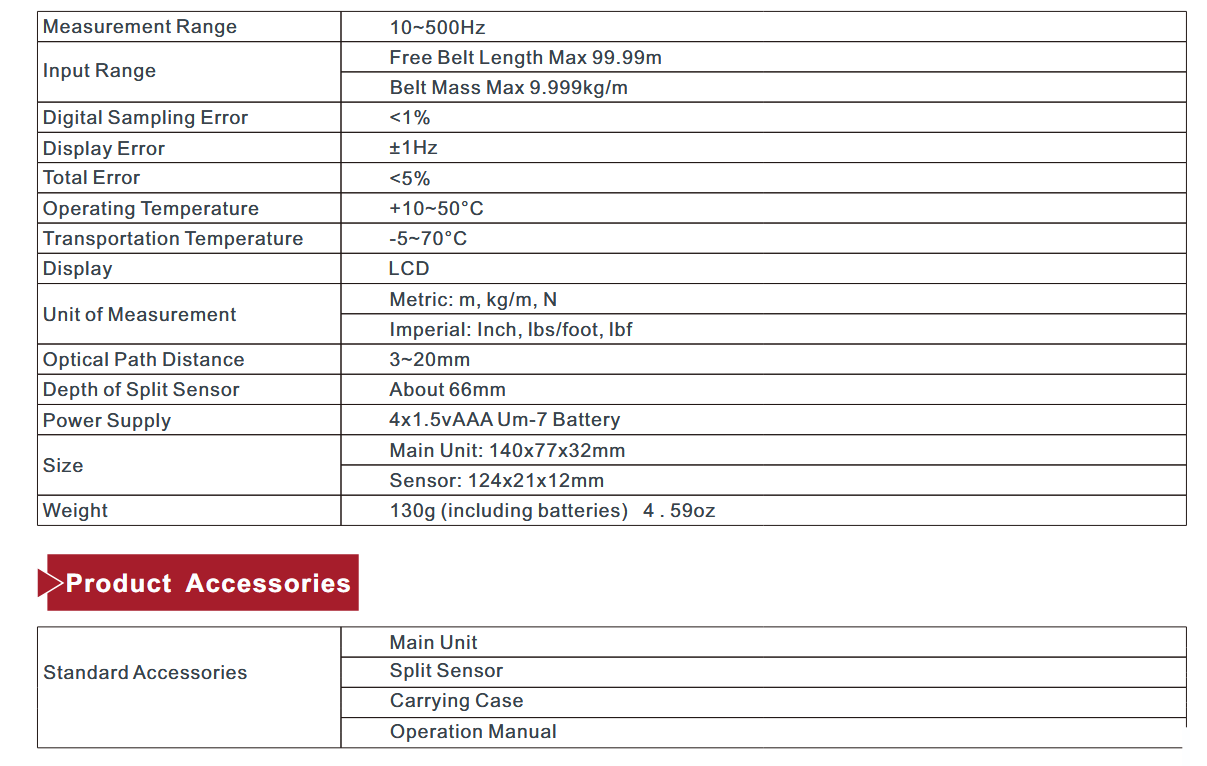

【Product Specifications】
