DB22-280B Portable Belt Tension Meter

【Product Details】

The belt tension meter is a specialized tool used for precisely measuring and adjusting the tension of belts. During the measurement process, the instrument's display screen will show the current tension value of the belt in real time. To enable users to operate without constantly staring at the screen, this instrument is equipped with indicator lights and a sound prompt system. When the measurement result shows that the tension is within the preset qualified range, the indicator light will emit a specific signal and be accompanied by a prompt sound representing "qualified". Conversely, if the tension exceeds the range, it will be warned by another indicator light (such as red light) and a different sound. This design greatly facilitates users' adjustment work, allowing them to focus more on the adjustment action itself. Belt recogniton the Gauge data automatic storage function, upper and lower bounds of Belt Tension set by the user can save for a long time, the choice of measurement unit (e.g., Newton or pounds) and equipment calibration data. Its storage chip has a power-off memory feature. Even if the instrument is turned off or the battery is removed, all saved data will not be lost, ensuring the continuity and convenience of use. The car industry, Belt recogniton Tool is the main application field, used to detect and adjust the engine accessory parts (such as generator, water pump, air conditioning compressor, etc.) the use of Belt Tension, to ensure the normal operation of vehicles, reduce wear and noise is crucial. In addition, Belt recogniton Meter application is not limited to automotive Belt. Based on its measurement principle, it is also applicable to the data detection and adjustment of tension for various strip-shaped, filamentous, linear, net-like and wide objects. Therefore, its application scope has been widely extended to multiple industrial fields such as textile and chemical fibers, wires and cables, metal wires, plastic films, paper, printing, and films, becoming a universal tension measurement tool.



【Product Features】

Conversion between metric and imperial units. It has both automatic shutdown and manual shutdown functions.

It has the functions of maximum value latching and under-voltage alarm indication.

It communicates with a PC via a USB data cable output.

Bluetooth data output options are provided.

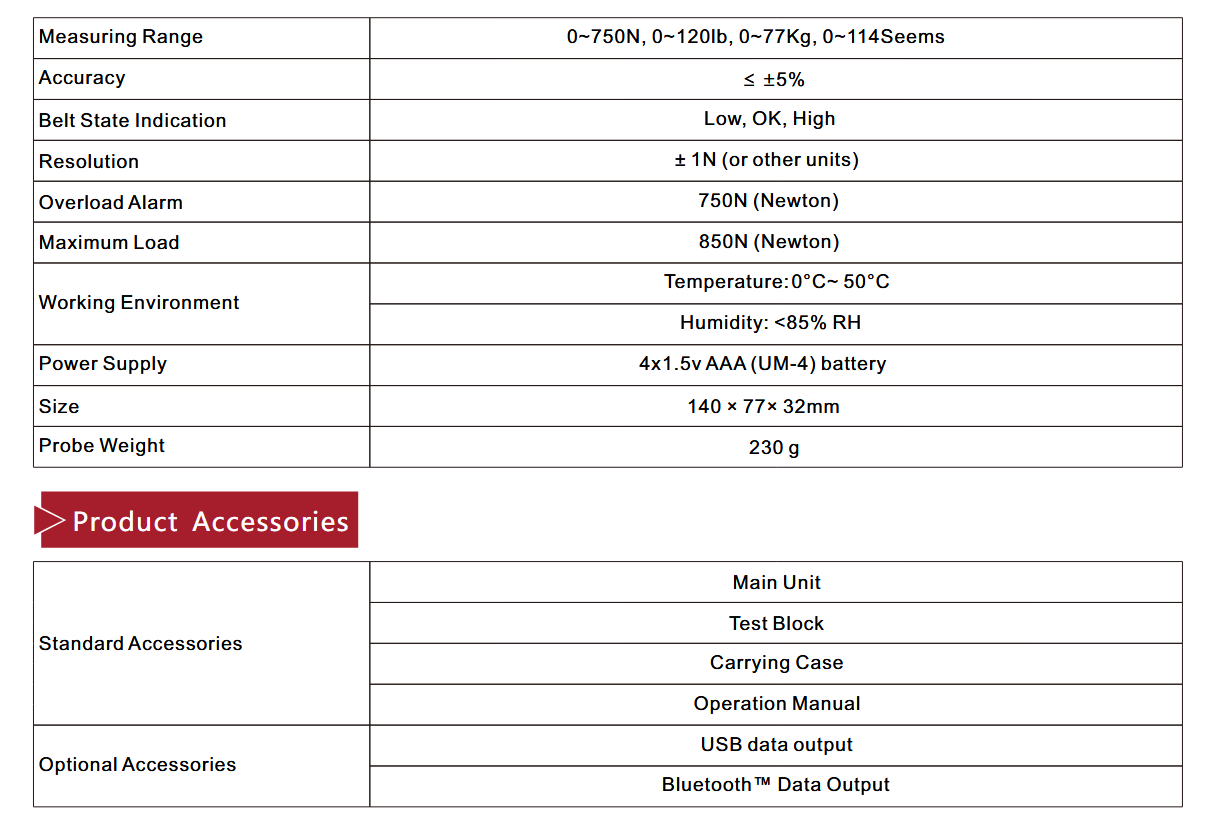

【Product Specifications】
