VT-7PRO 3AHD M12 USB Multi Signal Wiring Harness
4 week ago
Product details
When clients require unique circuit layouts for mobile recording equipment or aftermarket vehicle monitoring systems, our engineering team can select and match reliable automotive wiring harness connectors to fit different signal and power transmission demands. Every batch of finished assemblies adheres to RoHS and vehicle-grade standards; each custom automotive wire harness undergoes strict DC high-voltage insulation and tension resistance tests before shipment, serving DVR manufacturers, vehicle modification factories and electronic research labs worldwide with stable, long-lasting wiring solutions.

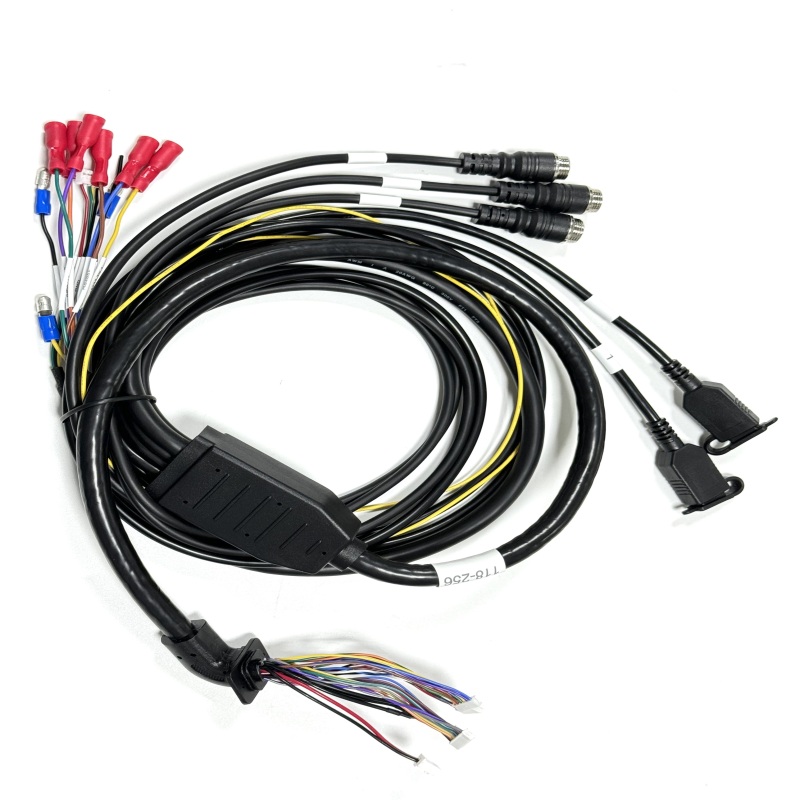

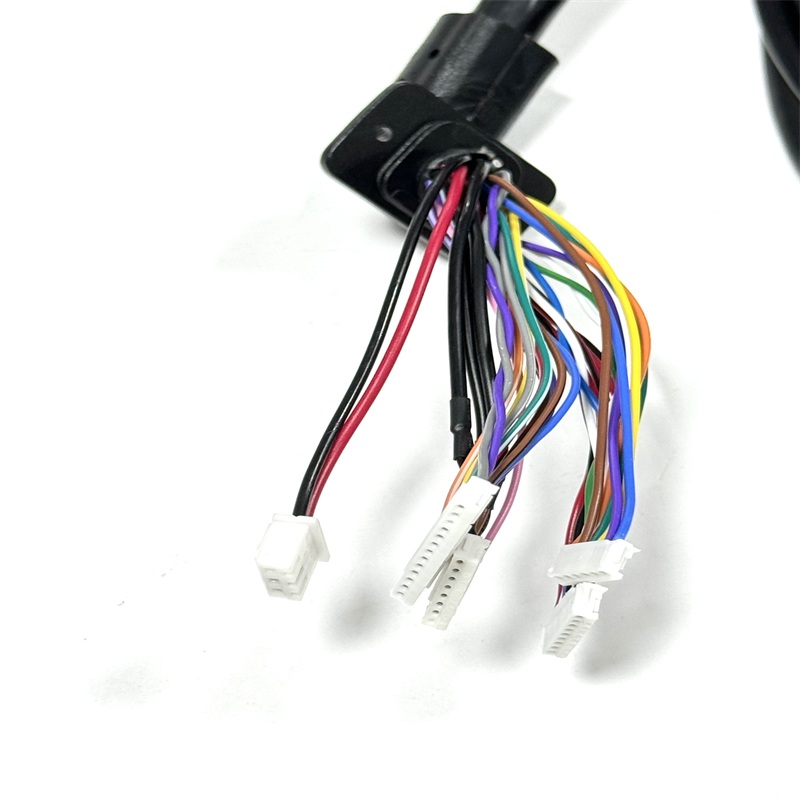

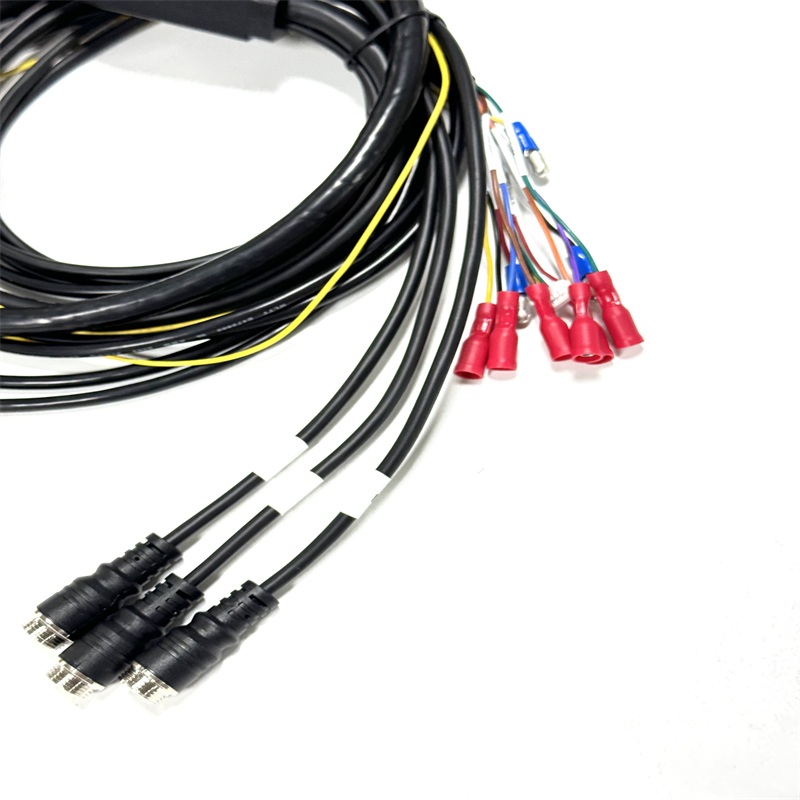

This VT-7PRO 3AHD M12 USB Multi Signal Wiring Harness is a dedicated multi-branch integrated cable built exclusively to match VT-7PRO onboard monitoring host equipment, designed to simplify complex wiring layouts for vehicle surveillance systems. Unlike split single-function cables that require separate assembly, this single harness consolidates AHD video lines, M12 aviation signal ports, dual USB data interfaces, power terminal lugs and multi-channel GPIO/RS232/RS485 breakout wires into one unified assembly, cutting on-site installation time and reducing messy wiring inside vehicle control cabinets.
| Item | Description |
| Product Name | VT-7PRO 3AHD M12 USB Multi Signal Wiring Harness |
| Type | Multi-Signal Integrated Automotive & Industrial Custom Wiring Harness |
| Voltage | DC 300V Test Voltage, 12V/24V Working DC, Customized Available |
| Pins Material | Nickel-Plated Brass Terminals, Gold-Plating Optional |
| Plug Material | PA66+GF Automotive Grade Plastic Housings, M12 Metal Aviation Connectors, Shielded USB AF Housings, Insulated Copper Terminal Lugs |
| Working Temperature | -40℃~+105℃ Or Customized |
| Length | Main Cable 1100±30mm Standard, Branch Lengths Customized Available |
| Minimum Insulation Resistance | ≥5MΩ |
| Maximum Conduction Resistance | ≤3Ω |
| Wire Specification | UL1007 22AWG / 24AWG / 26AWG, Shielded Twisted Pair Signal Wires, Multi-Color PVC Insulation |
| Built-in Features | Multi-channel AHD video transmission, RS485 / RS232 serial communication, GPIO signal input & output, dual USB data ports, power supply terminal lugs |
| Application Fields | Vehicle monitoring camera system wiring, mobile DVR integrated connection, industrial machine vision equipment, onboard surveillance equipment, agricultural machinery control wiring, electronic R&D multi-signal test bench, customized vehicle monitoring wiring projects |
| Specific Shipping Cost | Please Contact Us |
All built-in connection ends adopt standardized automotive wiring harness connectors with PA66+GF heat-resistant plastic shells and nickel-plated brass pins, maintaining steady signal output under working temperatures ranging from -40℃ to 105℃. Shielded twisted-pair internal conductors eliminate electromagnetic interference generated by vehicle engines and power circuits, ensuring clear real-time AHD video transmission without screen flicker or signal loss. The main cable trunk uses thick black anti-abrasion PVC outer skin, while each branch is protected by heat shrink tubing to prevent short circuits during long-term vibration inside trucks, buses and engineering vehicles.
If your equipment needs adjusted branch lengths, extra signal channels or revised pin definitions to fit custom monitoring hardware, our technical team can remodel every structural detail to produce a fully customized car wiring harness aligned with your exclusive device specifications. We also offer one-stop matching service for complete sets of Customized Electrical Connectors And Harnesses, allowing you to adjust connector types, wire gauges and wire color combinations to meet special industrial and onboard detection requirements. Internal wires use UL-certified 22AWG / 24AWG / 26AWG multi-color insulated conductors, with distinct color coding for power, video and communication lines to lower wiring error risks for installation technicians.
This multi-signal integrated harness fits a wide range of application scenarios, including truck and bus mobile DVR surveillance systems, agricultural machinery onboard monitoring, construction vehicle camera wiring and industrial machine vision data transmission benches. It balances compatibility with VT-7PRO recording hosts and flexible expandability for secondary development, and we provide full parameter customization on the basis of this finished product to create exclusive custom automotive wire harness for different surveillance equipment brands.
