Multi Branch Custom Wiring Harness XH MX IDC Spade Terminals

Shenzhen Fubang Wire Harness Co., Ltd. is a professional OEM & ODM manufacturer focusing on multi-branch customized wiring assemblies for industrial control, onboard detection equipment and automotive electronic systems. We equip full sets of automated production equipment from wire cutting, terminal crimping to integrated injection molding, and support small prototype trial orders and mass bulk production for global equipment developers. Whether clients need a dedicated diagnostic harness for vehicle fault scanning equipment or ordinary single-channel connecting cables for industrial instruments, our technical team can adjust branch layout, connector matching and wire gauge to meet unique circuit layout demands. All finished assemblies pass strict DC high voltage insulation and continuity testing, and comply with RoHS environmental standards, supplying stable custom wire solutions to automotive repair equipment factories, industrial automation integrators and electronic R&D laboratories worldwide.

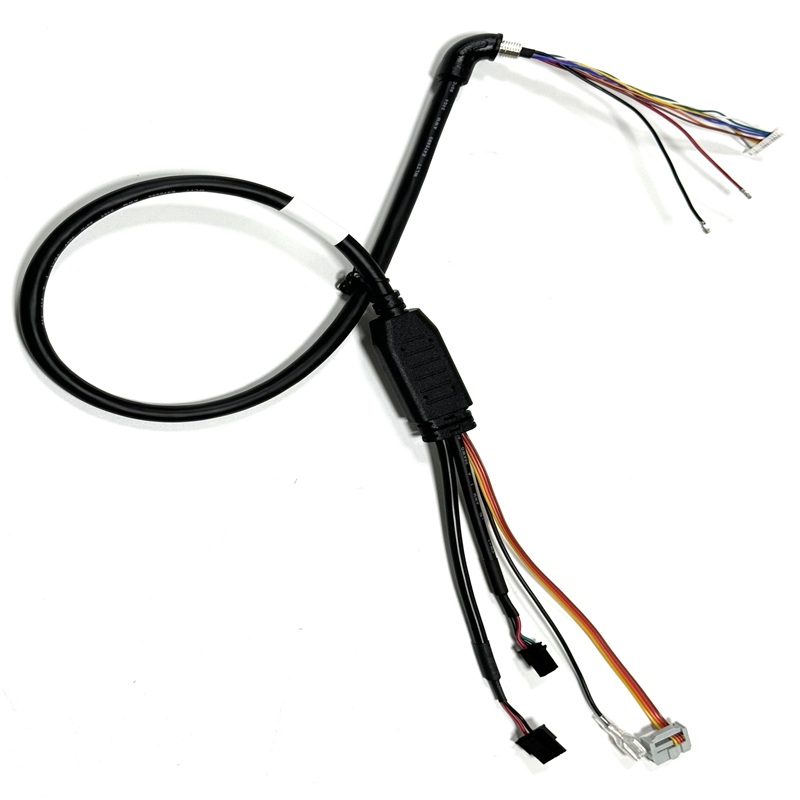

This Multi Branch Custom Wiring Harness XH MX IDC Spade Terminals is a multi-split integrated cable designed for multi-signal synchronous transmission, compatible with XH, MX, IDC and 6.3mm spade terminal connectors to realize one-main-line multi-branch signal shunting. Unlike single-pair straight-through cables with limited expansion capability, this multi-branch structure reserves multiple independent connection ports at the same time, which can simultaneously transmit power, analog signals and digital communication signals, and can be matched with an OBD diagnostic adapter to expand multi-channel detection functions of onboard diagnostic equipment.

Item	Description
Product Name	Multi Branch Custom Wiring Harness XH MX IDC Spade Terminals
Type	Custom Industrial Cable Assembly / OEM Wiring Harness
Voltage	DC 500V Test Voltage, 12V/24V Working DC Customizable

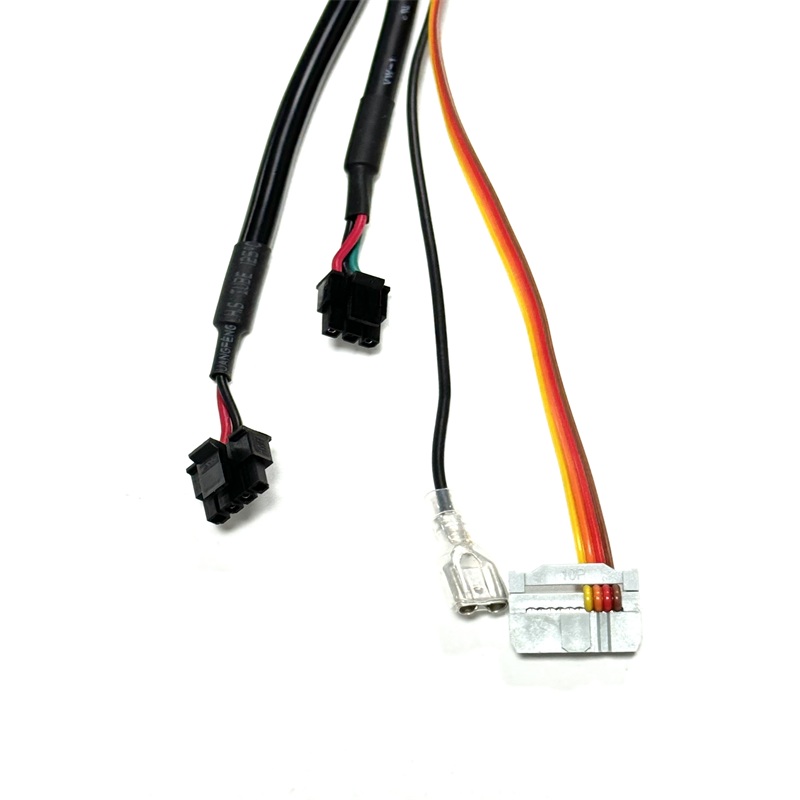

Connector Types	XH2.54 12Pin, 1.25mm 13Pin, MX3.0 3Pin Male, IDC 10Pin, 6.3mm Spade Terminal
Pins Material	Nickel-Plated Brass Terminals, Gold-Plating Optional
Plug Material	PA66+GF Heat Resistant Plastic Housings, PVC Cable Jacket, Waterproof 90° Elbow SR Mold
Working Temperature	-40℃~+105℃ Or Customized
Length	500±20mm, All Branch Lengths Custom Supported
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤3Ω
Quality Standard	100% Continuity Test, RoHS Compliant
Application Fields	Automotive diagnostic equipment internal wiring, extended diagnostic harness for vehicle scanners, matching assembly of OBD diagnostic adapter, industrial machine vision equipment, onboard monitoring host wiring, electronic prototype DIY projects, commercial vehicle multi-channel data logging, instrument control panel internal connection, customized vehicle diagnostic OBDII cable assembly, multi-signal expansion of OBD diagnostic cable
Specific Shipping Cost	Please Contact Us

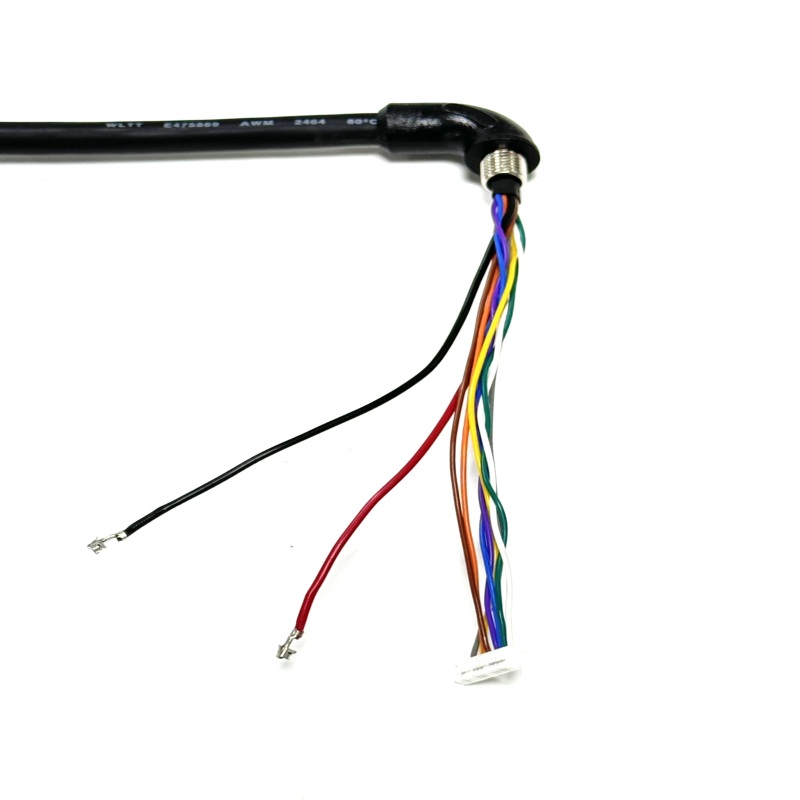

As a customizable multi-signal transmission assembly, it can be modified into a special vehicle diagnostic OBDII cable after adjusting internal pin definitions, perfectly connecting vehicle OBD interfaces and multi-channel detection host modules. The main wire adopts UL-certified multi-color insulated conductors, and all internal terminals are made of nickel-plated brass to maintain low conduction resistance under long-term continuous signal output. The 90-degree curved waterproof plastic housing at one end effectively avoids wire bending fracture caused by repeated disassembly, and each branch is protected by heat shrink tubing to prevent short circuits caused by bare wire contact.

The whole harness supports customized total length and each branch length, with a wide working temperature range of -40℃ to 105℃, adapting to indoor laboratory debugging and outdoor vehicle-mounted detection environments. Before delivery, every finished product undergoes full electrical performance inspection to eliminate hidden dangers such as open circuit, short circuit and misaligned pins. If you need to integrate extra OBD interfaces on the basis of this multi-branch cable, our workshop can add corresponding terminals and wire layouts to turn it into a professional OBD diagnostic cable that integrates power supply and vehicle data reading.

This multi-branch wiring assembly has wide application flexibility beyond single diagnostic scenarios. It can be used not only as an expanded diagnostic harness for automotive scanning equipment, but also for industrial machine vision equipment, onboard monitoring host internal wiring, DIY electronic control prototypes and commercial vehicle multi-channel data loggers. Its modular multi-connector design greatly reduces the difficulty of secondary wiring for equipment manufacturers, shortens product assembly time, and becomes a universal customizable wiring accessory covering industrial control and automotive detection dual fields.
