Product details

TThe 16PIN type c connector board-to-board with an EMI shield is specifically designed for high-speed data transmission and high-current charging. It is widely used in consumer electronics, industrial control, and automotive equipment, among other fields. The usb type c connector is suitable for high-intensity usage scenarios such as automotive electronics and industrial control equipment

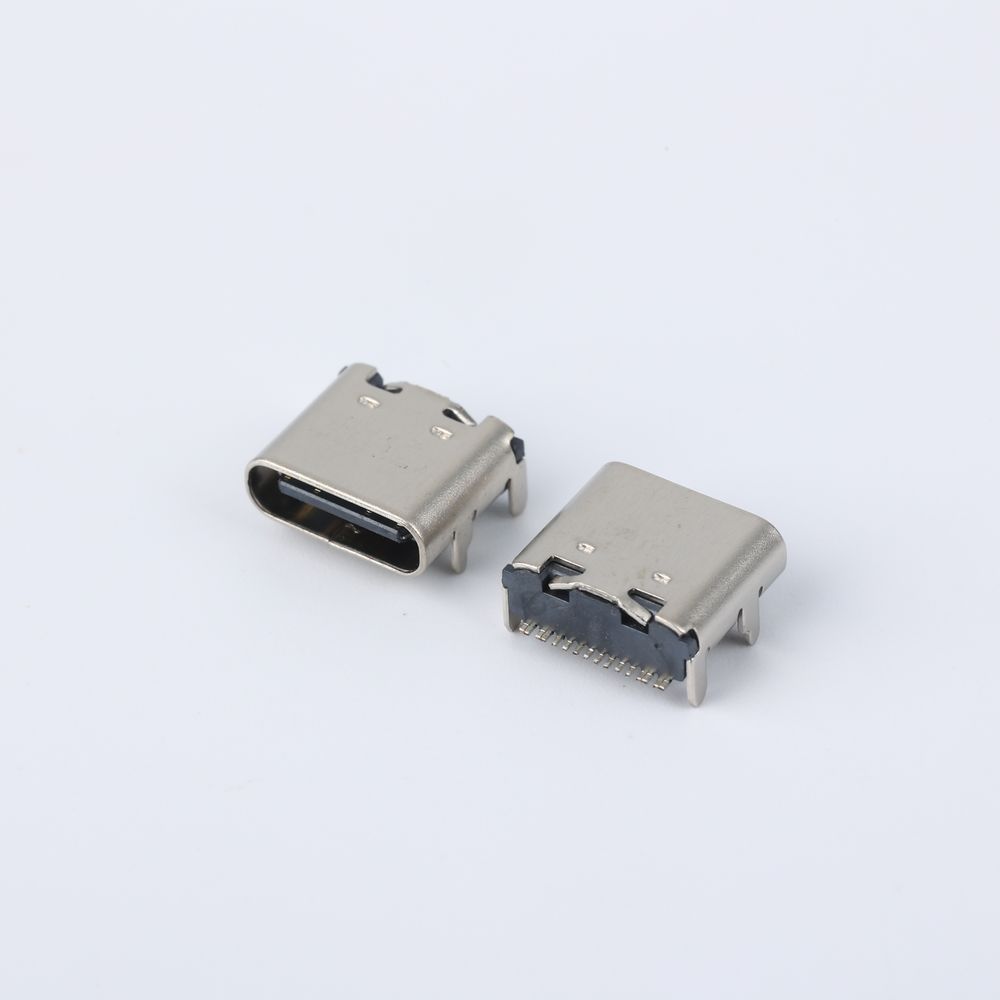

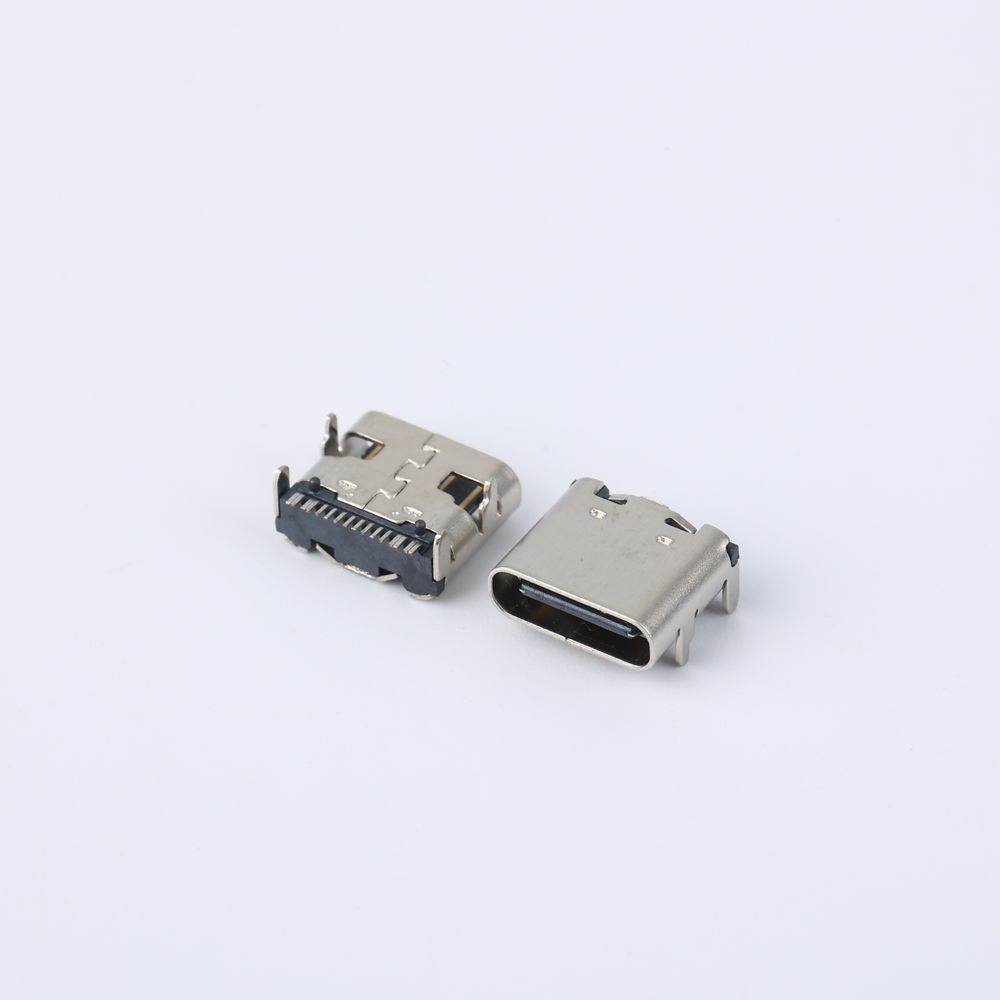

single 16pin usb c connector

MATERIAL SPECIFICATION:

HOUSING:	LCP UL94V-0 BLACK.
CONTACTS:	C7025 T=0.15
GLIP:	SUS301 T=0.15
SHELL:	SUS304 T=0.3
GND:	SUS316 T=0.1
PLATING SPECIFICATION:
CONTACTS:	0.6U” Gold In Contact Area 30U” MIN Matte Sn Plate In Solder Area. Over 30U” MIN.Ni
SHELL:	30U”MIN. Ni PLATED
MECHANICAL CHARACTERISTICS:
INSERTION FORCE :	5~20N
WITHDRAWAL FRCE :	8~20N,After Life Test Un-mating force: 6~20N
LIFE TEST:	TEST:10000 CYCLES
DTHER GENERAL SPEC, TO REFER “2XXXXXX SPEC"
TO CONFORM TO SINGATRON HAZARDOUS SUBSTANCE FREE SPECIFICATION
HALOGEN FREE PRODUCT IDENTIFICATION LOGD ON PACKAGING
PACKAGING:	REEL
ELECTRICAL CHARACTERISTICS:
RATING:	20V5A MIN FOR VBUS, 0.25A MIN FOR OTHER
CONTACT RESISTANCE:	40m MAX.
DIELECTRIC WITHSTANDING VOLTAGE:	100V AC FOR ONE MINUTE
INSULATION RESISTANCE:	100M MIN, MEASURED BY 100 VDC
