Product details

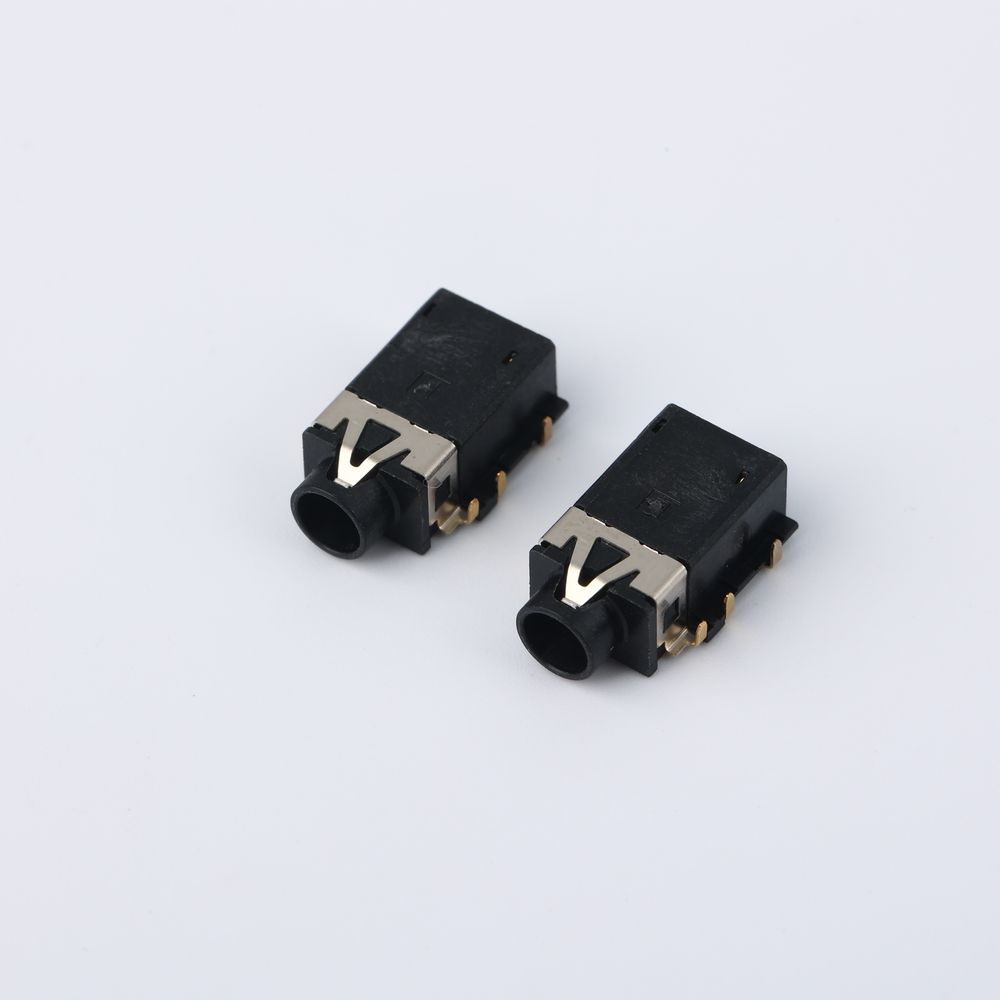

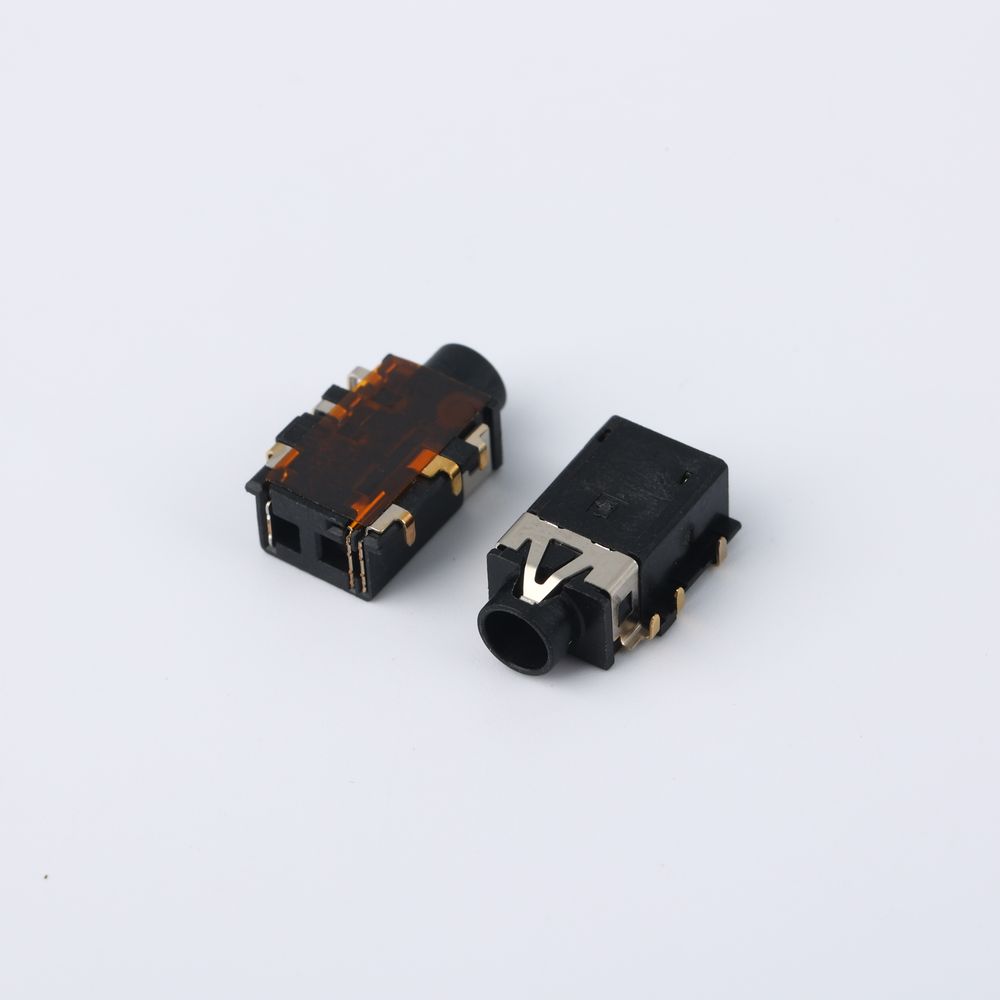

3.5 mm jack CH=-1.4mm connector, It is the audio jack connector standard for devices such as mobile phones and computers, especially suitable for scenarios that require stable sound quality. The advantages of the phone jack connector lie in clear sound quality, affordable cost, and compatibility with headphones with microphones.

Material：

HOUSING:	PA10T UL94V-0 BLACK
CONTACT-1:	C5210R T=0.2mm, G/F ON CONTACT AND SOLDER TAIL AREA, 50U'' NICKEL UNDERPLATED
CONTACT-2:	C5210R T=0.2mm, G/F ON CONTACT AND SOLDER TAIL AREA, 50U'' NICKEL UNDERPLATED
CONTACT-3:	C5210R T=0.2mm, G/F ON CONTACT AND SOLDER TAIL AREA, 50U'' NICKEL UNDERPLATED
CONTACT-4:	C5210R T=0.2mm, G/F ON CONTACT AND SOLDER TAIL AREA, 50U'' NICKEL UNDERPLATED
CONTACT-5:	C5210R T=0.2mm, G/F ON CONTACT AND SOLDER TAIL AREA, 50U'' NICKEL UNDERPLATED
CONTACT-6:	C5210R T=0.2mm, G/F ON CONTACT AND SOLDER TAIL AREA, 50U'' NICKEL UNDERPLATED
MOLDING:	PA10T UL94V-0
MALAR:	CAPTON YELLOE
CURUENT RATING:	DC 1A MAX
VOLTAGE RATING:	DC 12V
CONTACT RESISTANCE:	50mΩ MAX
INSULATION RESISTANCE:	100mΩ MIN AT 500V DC
DIELECTRIC WITHSTANDING VOLTAGE:	500V AC FOR 1 MINUTE
INSERTION FORCE :	5~22N (INITIAL), 4~22N (AFTER LIFE TEST)
WITHDRAWAL FRCE :	5~20N (INITIAL), 4~20N (AFTER LIFE TEST)
OPERATING LIFE:	5000 CYCLES MIN
