Custom Multi Split Wiring Harness XH4P 1.25mm 13P Panel Mount Connector Cable
3 week ago
Product details
We integrate mold production, wire processing, terminal crimping and finished product testing into one complete production line, and deliver flexible OEM & ODM solutions to global equipment developers. Whether clients need small prototype samples or mass bulk orders, our engineering team can adjust pin definitions, branch layouts and connector combinations to match unique circuit design demands. We devote ourselves to supplying reliable Customized Electrical Connectors And Harnesses that fit various low-voltage signal transmission scenarios, and strictly follow RoHS and automotive-grade quality standards for all outgoing assemblies.

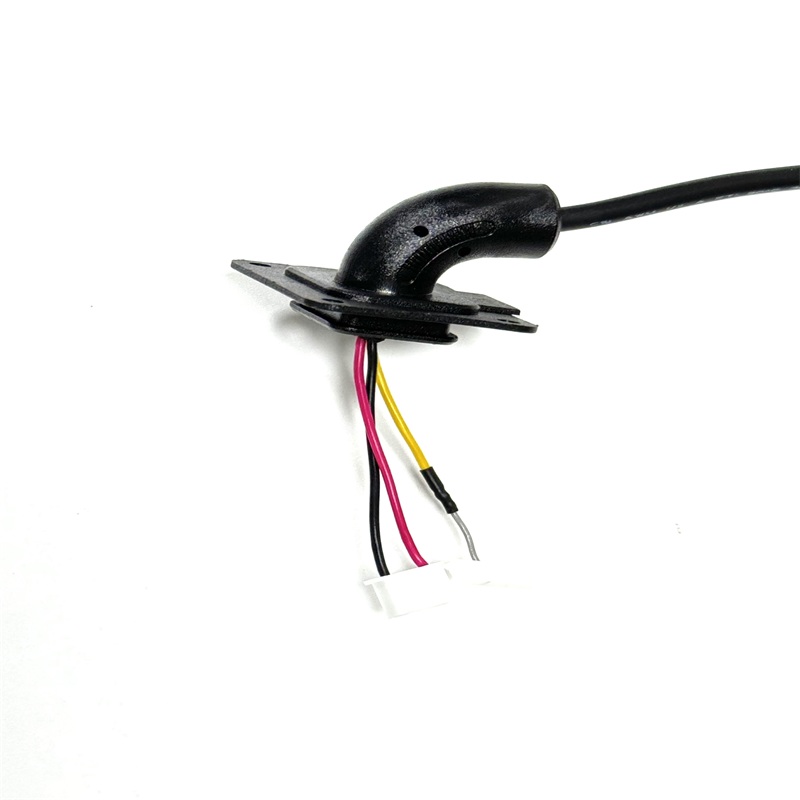

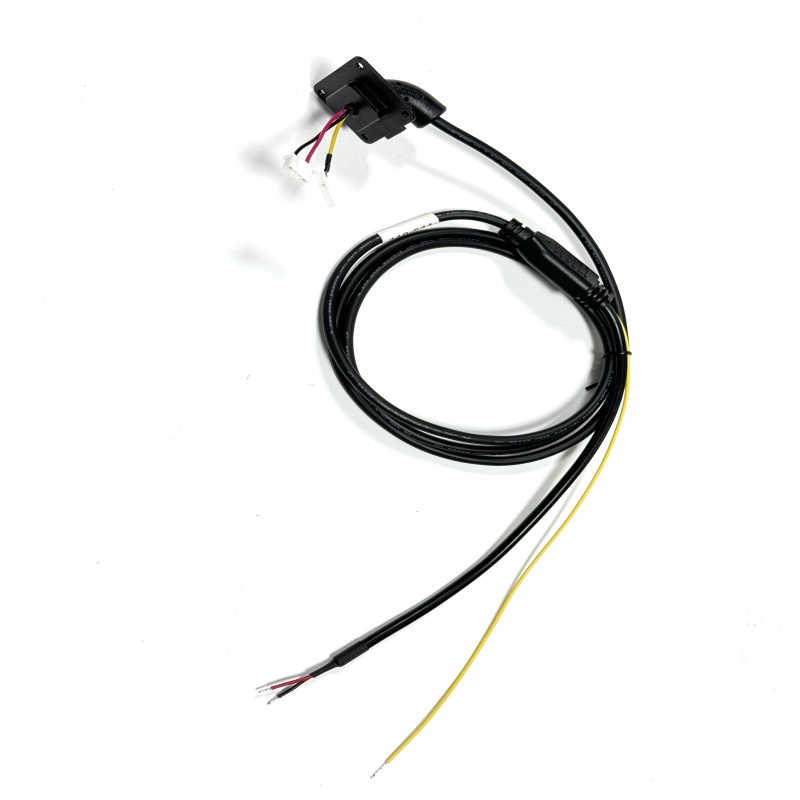

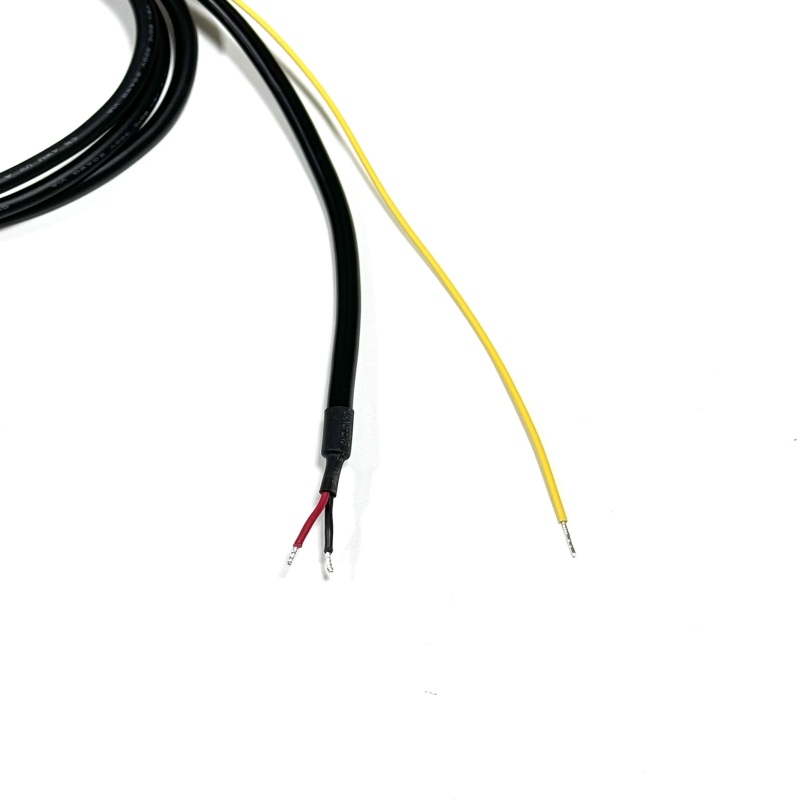

This Custom Multi Split Wiring Harness XH4P 1.25mm 13P Panel Mount Connector Cable is a multi-branch split cable tailored for compact electronic equipment internal connection. Unlike single-line straight wiring assemblies with limited expansion capacity, this harness integrates a panel mount SR elbow plug, XH 4P connector, miniature 1.25mm pitch 13Pin terminal and two groups of open tinned wire branches in one set, realizing multi-channel signal and power synchronous transmission in narrow installation space. It serves as one versatile piece of connector cables to simplify internal wiring layout for onboard control modules and industrial testing panels.
| Item | Description |
| Product Name | Custom Multi Split Wiring Harness XH4P 1.25mm 13P Panel Mount Connector Cable |
| Type | Multi Branch OEM Custom Automotive & Industrial Wiring Harness Assembly |
| Voltage | DC 300V Test Voltage, 12V/24V Working DC, Customizable |
| Pins Material | Nickel-Plated Brass Terminals, Gold-Plating Surface Treatment Optional |
| Plug Material | PA66+GF Auto-Grade Plastic SR Shell, Black PVC Cable Jacket, Heat-shrink Tubing Protection |
| Working Temperature | -40℃~+105℃ Or Customized |
| Length | 1500±30mm, Each Branch Length Fully Custom Supported |
| Minimum Insulation Resistance | ≥10MΩ |
| Maximum Conduction Resistance | ≤2Ω |
| Electrical Test Standard | 100% Full Continuity Test, No Short Circuit, Open Circuit or Misaligned Pins |
| Compliance Standard | RoHS Environmental Compliance |
| Application Fields | Onboard electronic equipment internal wiring, extended diagnostic harness for vehicle testing tools, matching assembly of OBD diagnostic adapter, industrial control panel wiring, electronic prototype DIY projects, customized vehicle diagnostic OBDII cable assembly, multi-signal expansion of OBD diagnostic cable, automotive modification wiring, low-voltage industrial device power connection |
| Specific Shipping Cost | Please Contact Us |
The whole assembly adopts layered flame-retardant insulation materials to adapt to long-term operation under -40℃ to 105℃ temperature range. The panel fixed SR elbow shell is injection molded with high toughness PA66+GF plastic, which effectively avoids wire fracture caused by frequent bending during equipment assembly. All built-in terminals are nickel-plated brass, providing stable low-resistance signal transmission; we also support gold-plated terminal customization for customers with higher anti-oxidation requirements. As a flexible matching part for automotive wiring harness connectors, it can be combined with other standard plugs to build complete internal wiring systems of vehicle diagnostic equipment.
The standard overall length reaches 1500mm, and every branch length, wire gauge and connector type can be fully modified according to customer drawings. Before packaging, each cable passes DC 300V withstand voltage test, full continuity inspection and tensile force test to rule out hidden troubles such as open circuit and short circuit. If your equipment requires special plug-in structures or customized wire color coding, our factory can remodel all structural parameters to create exclusive Customized Electrical Connectors And Harnesses that perfectly align with your equipment circuit layout.
This multi-split wiring assembly boasts wide cross-industry application value. It can be used as internal connecting connector cables for vehicle diagnostic host circuit boards, auxiliary wiring for industrial automated detection instruments, signal transmission lines for automotive modified control modules, and wiring accessories for DIY electronic prototype development. Paired with different types of automotive wiring harness connectors, it can also form complete detection wiring assemblies for after-sales vehicle maintenance equipment, meeting the diversified wiring demands of automotive electronics and industrial control fields at the same time.
