M16 12Pin Multi Branch Custom Wiring Harness with Micro USB
3 week ago
Product details
Shenzhen Fubang Wire Harness Co., Ltd. is a one-stop OEM & ODM factory specializing in custom wire assemblies for industrial equipment and automotive electronic systems. We own full independent production lines covering connector molding, wire stripping, terminal crimping and finished electrical testing. We can flexibly develop exclusive wiring solutions based on customers’ circuit drawings, and supply stable automotive cable and connectors to equipment manufacturers, vehicle maintenance brands and automation enterprises worldwide.

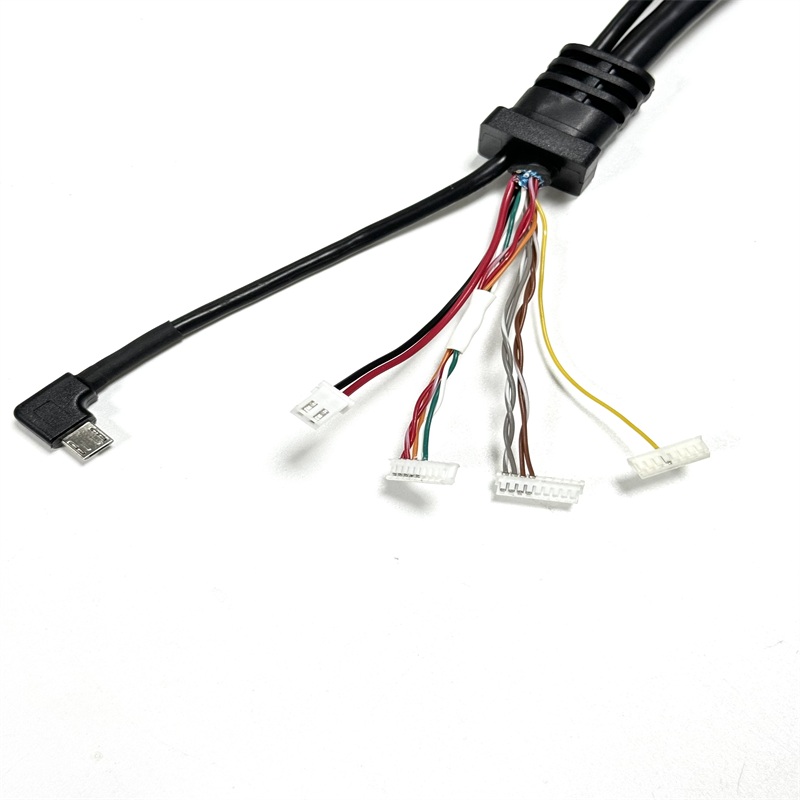

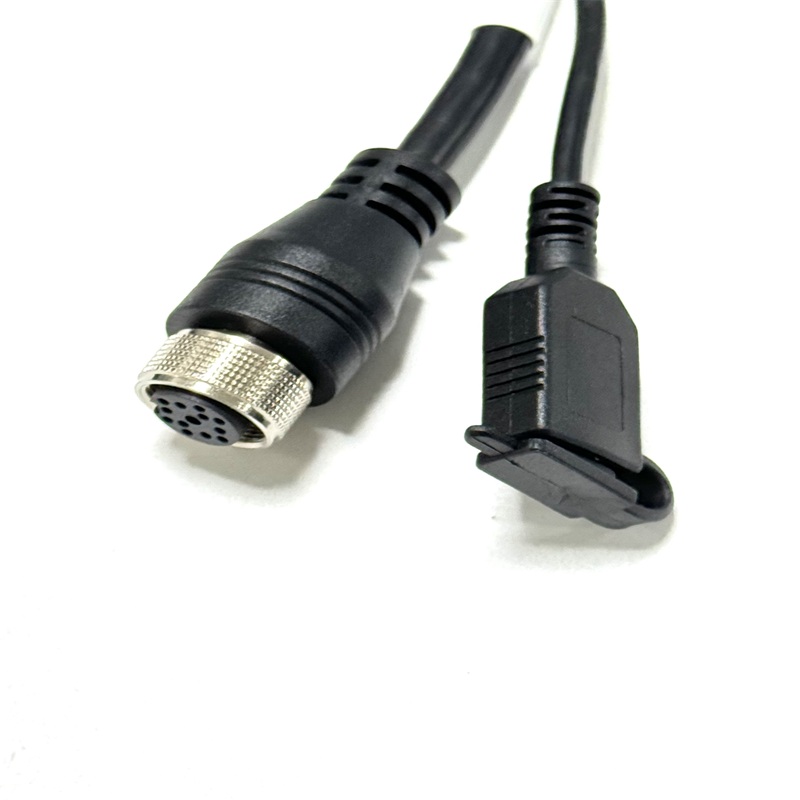

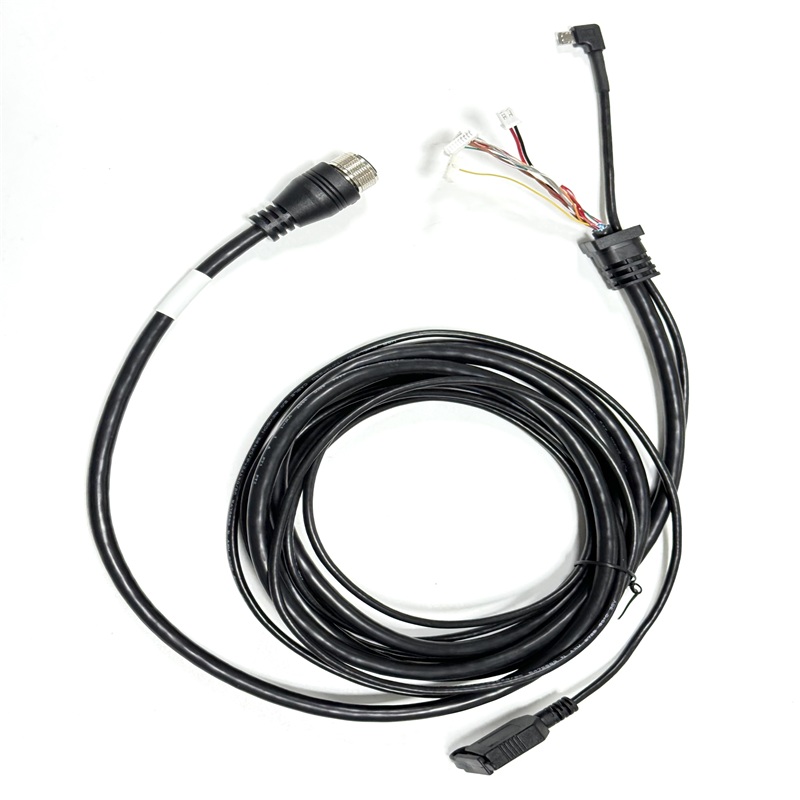

This M16 12Pin Multi Branch Custom Wiring Harness with Micro USB is an integrated multi-signal cable designed for industrial and onboard combined transmission scenarios. Different from single-port simple connection lines, it integrates M16 12-pin aviation metal plug, Micro USB elbow plug and multiple small-pitch branch connectors in one single harness, realizing simultaneous transmission of power, USB data and multi-channel sensor signals. It works as a reliable piece of car wiring cables for vehicle monitoring and detection equipment, simplifying messy internal wiring layout inside host devices.
All internal terminals are nickel-tin plated copper with low impedance, while the outer cable adopts wear-resistant PVC insulation that works steadily from -40℃ to 80℃. The metal M16 aviation connector features anti-shock and dustproof performance, perfectly adapting to bumpy vehicle operating environments. A full set of matched automotive wiring harness connectors is reserved on each split branch, allowing free secondary wiring expansion without extra conversion adapters. The standard 2500mm overall length reserves sufficient operation space for equipment installation, and all branch lengths can be adjusted as customized demands.
| Item | Description |
| Product Name | M16 12Pin Multi Branch Custom Wiring Harness with Micro USB |
| Type | Industrial Multi-Signal Custom Wiring Harness Assembly |
| Voltage | DC 300V Test Voltage, 5V/12V/24V Working DC Customizable |
| Pins Material | Tin-Plated Copper Terminals, Nickel-Plated Brass for M16 Aviation Pins, Gold-Plating Optional |
| Plug Material | Metal Threaded M16 Aviation Connector Shell, PA66+GF Plastic Connector Housings, PVC Outer Cable Jacket, Injection Molded SR Strain Relief |
| Working Temperature | -40℃~+80℃ Or Customized |
| Length | 2500±30mm, Custom Length Fully Supported |
| Minimum Insulation Resistance | ≥10MΩ |
| Maximum Conduction Resistance | ≤2Ω |
| Electrical Test Standard | 100% Full Continuity Test, No Short Circuit, Open Circuit or Misaligned Pins |
| Compliance Standard | RoHS Environmental Compliance |
| Application Fields | Industrial machine vision equipment wiring, factory automation control system connection, onboard monitoring camera harness, industrial sensor multi-signal cable, customized electronic equipment internal wiring, custom automotive wiring harness connectors assembly, matching connector cables for detection instruments, OEM Customized Electrical Connectors And Harnesses for industrial devices |
| Specific Shipping Cost | Please Contact Us |
Every harness passes DC 300V withstand voltage, continuity and tensile testing before delivery to eliminate hidden circuit faults. Our workshop can revise wire gauge, pin definition and connector collocation to make tailor-made automotive cable assembly matching proprietary industrial and onboard detection machines. The injection-molded strain relief at each split point effectively prevents wire breakage caused by long-term repeated bending during daily equipment use.
This multi-branch wiring assembly has wide dual-industry applicability. It can serve as internal connecting wires for vehicle-mounted monitoring equipment and industrial machine vision sensors. When combined with different plugs, it forms complete sets of automotive cable and connectors for commercial vehicle inspection tools. It is also widely used as customized car wiring cables for modified onboard systems, and flexible automotive cable assembly for factory automation signal collection equipment.
