M12 4Pin D Code Male to USB AF Female Panel Mount Waterproof Data Cable
3 week ago
Product details
We can customize pin assignment, shielding structure and panel installation size according to clients’ industrial equipment drawings, and supply reliable custom cable assembly and wiring harness for automation manufacturers, onboard monitoring equipment brands and machine vision enterprises across global markets. All raw materials pass RoHS inspection to meet industrial outdoor usage standards.

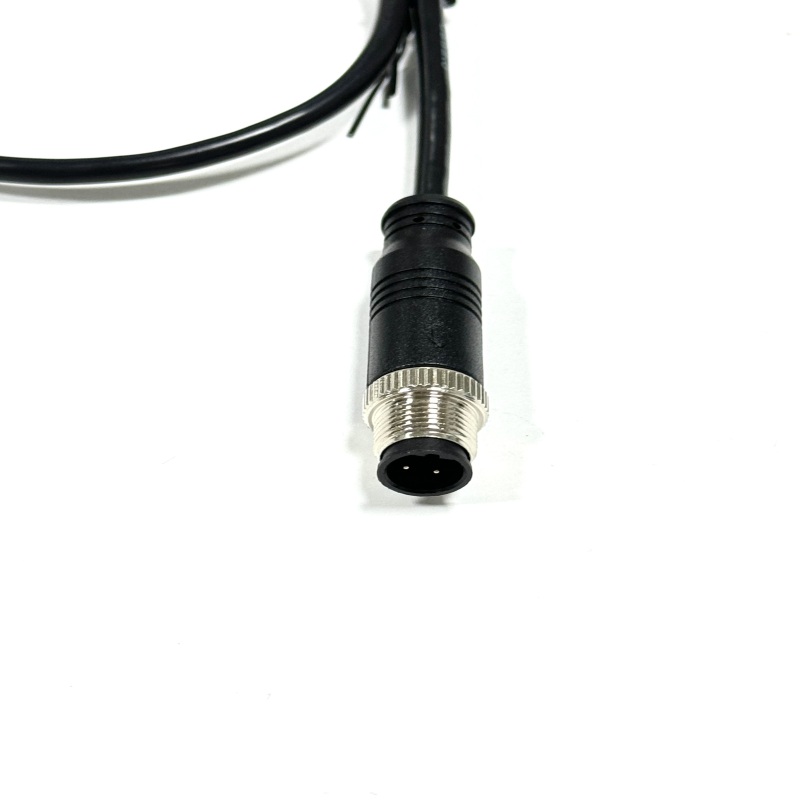

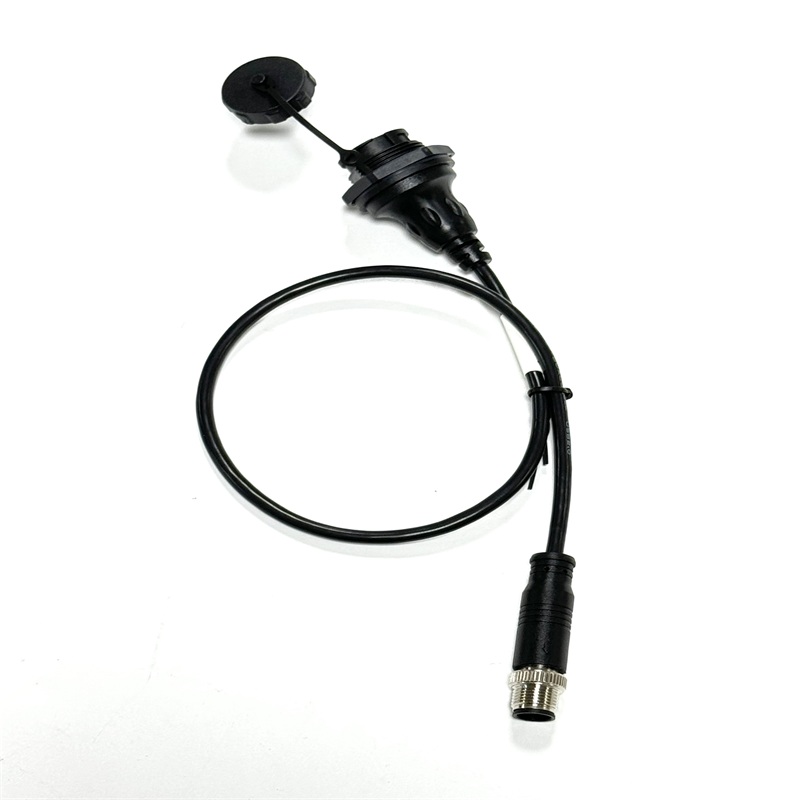

This M12 4Pin D Code Male to USB AF Female Panel Mount Waterproof Data Cable is a double-shielded waterproof data transfer line tailored for industrial harsh environment. Different from ordinary unshielded short extension wires, this integrated assembly combines metal threaded M12 D-code aviation plug, panel fixed USB-A female socket with dust cap and double shielding signal wires into one complete set, realizing stable USB data transmission in damp, dusty workshop or vehicle operation environment. It works as a durable industrial DC cable to deliver low-voltage power and synchronous digital signals for camera and sensor equipment at the same time.
| Item | Description |
| Product Name | M12 4Pin D Code Male to USB AF Female Panel Mount Waterproof Data Cable |
| Type | Industrial Waterproof M12 to USB Data Transmission Wiring Harness |
| Voltage | DC 500V Test Voltage, 5V Standard USB Working Voltage |
| Pins Material | Nickel-Plated Brass M12 Connector Pins, Tin-Plated Copper USB Terminals |
| Plug Material | Metal Threaded M12 D-Code Male Connector, Waterproof Panel-Mount USB AF Socket with Dust Cap, Black PVC Outer Jacket, Aluminum Foil + Braided Shielding Layer |
| Working Temperature | -20℃ ~ +80℃, Weather-Resistant Industrial Grade |
| Length | 420±20mm, Custom Length Fully Supported |
| Minimum Insulation Resistance | ≥10MΩ |
| Maximum Conduction Resistance | ≤3Ω |
| Connector Configuration | M12 4-Pin D-Code Male Plug (Shielded), USB Type-A Female Panel Mount Socket with Waterproof Dust Cover |
| Compliance Standard | RoHS Environmental Compliance |
| Application Fields | Industrial machine vision camera connection, factory automation sensor data transmission, vehicle monitoring equipment wiring, industrial control panel USB extension, waterproof outdoor device data cable, custom automotive wiring harness connectors data matching, vehicle cable assembly for onboard detection equipment, OEM custom cable assembly and wiring harness for industrial devices |
| Specific Shipping Cost | Please Contact Us for Accurate Quotation |

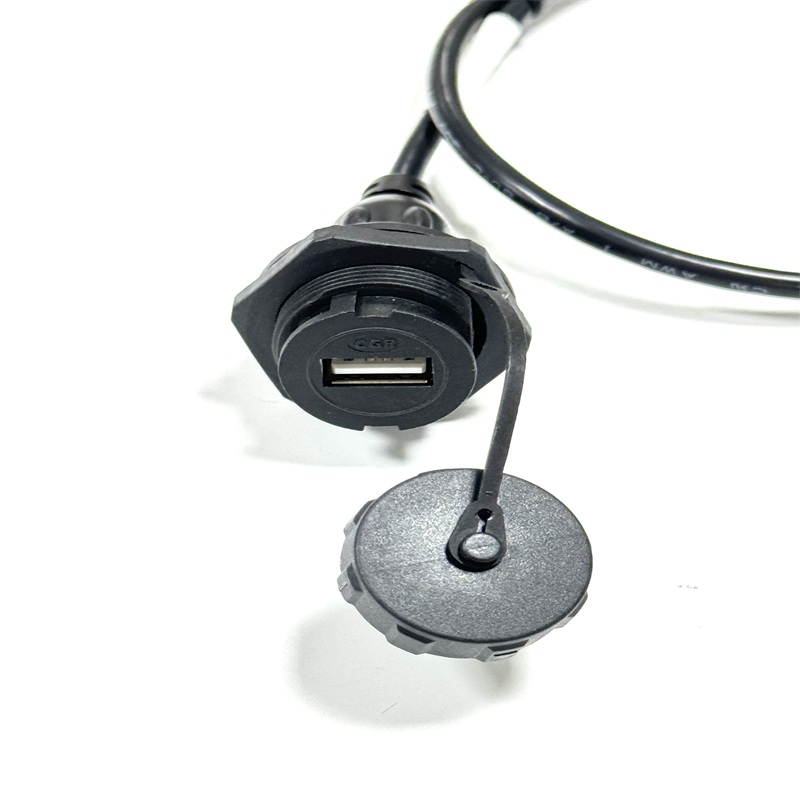

The outer shell of M12 connector adopts anti-corrosion metal thread for locking and waterproof sealing, while the panel-mounted USB female port is equipped with a matching flip dust cover to avoid water and debris erosion when idle. Internal wires apply UL2725 multi-core shielded structure with aluminum foil and copper braided double shielding layer, effectively filtering electromagnetic interference from surrounding motors and power equipment. The standard overall length is 420mm, and our engineering team can adjust branch length, wire gauge and connector installation hole size to create exclusive custom wire harness assembly matching narrow installation space of industrial control cabinets and onboard monitoring hosts.
Every finished cable undergoes DC 500V withstand voltage test, full continuity detection and tensile test before packaging, to eliminate hidden dangers like poor contact, open circuit and signal attenuation. The injection molded strain relief at both connector ends reinforces wire protection, preventing core wire fracture caused by frequent disassembly and vibration during long-term field operation. The color-coded internal copper conductors guarantee accurate circuit matching, greatly reducing wiring error rate for equipment assembly workers.
This waterproof data wiring assembly boasts strong cross-scenario adaptability. It can serve as data connection lines for industrial machine vision cameras, USB extension wiring for factory automation sensors, and signal transmission lines for onboard vehicle monitoring equipment. As a mature branch of our industrial series custom cable assembly and wiring harness, it can be combined with different aviation connectors to expand multi-channel waterproof data kits. It also acts as stable supporting DC cable for low-power industrial cameras, and flexible custom wire harness assembly for customized detection equipment that needs both data and power transmission in wet outdoor working conditions.
