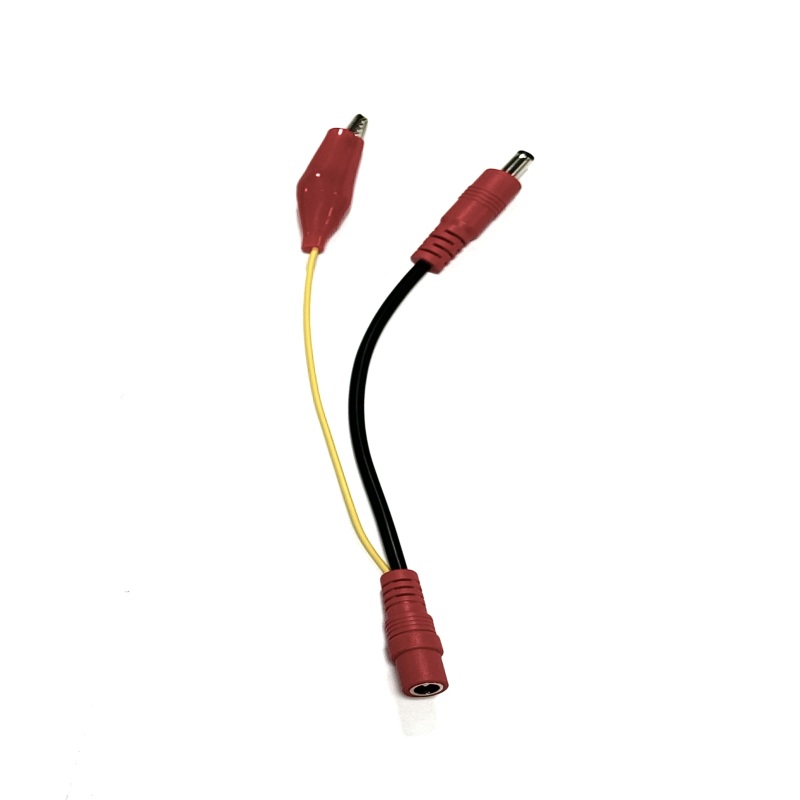

DC 5.5x2.5mm Male Female with Red Alligator Clip Power Test Cable
3 week ago
Product details
This DC 5.5x2.5mm Male Female with Red Alligator Clip Power Test Cable is a portable short-distance power conversion wire specially developed for temporary power taking and circuit debugging work. Unlike long single-function test wires on the market, this integrated wire integrates DC male plug, DC female jack and fully insulated red alligator clip into one assembly, which can realize quick switching between battery power source and DC-powered small equipment. As a compact and easy-to-carry dc cable adapter, it effectively simplifies the wiring steps of on-site maintenance and avoids messy wire layout during circuit testing.

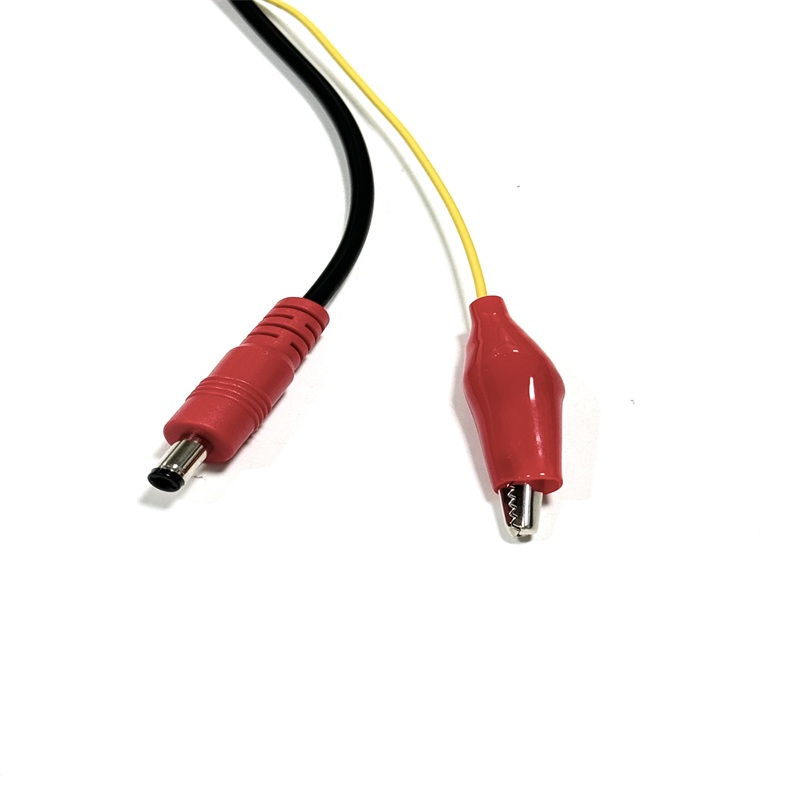

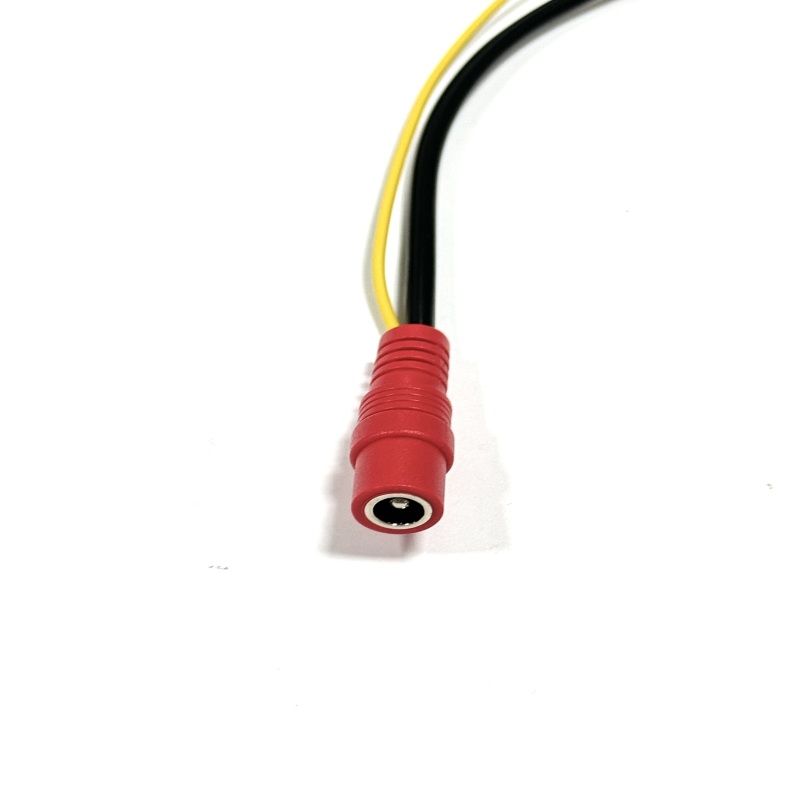

The internal conductor of the cable adopts UL1007 20AWG tinned copper wire with good electrical conductivity, which keeps low conduction resistance during long-time continuous power supply. The alligator clip is wrapped with thick red insulating rubber sleeve to prevent accidental electric shock when clamping the battery terminal, and the sharp copper jaw can firmly fit the electrode without slipping. The outer layer uses wear-resistant PVC sheath that can adapt to the temperature range of -20℃ to 80℃, and the injection-molded strain relief at both DC connectors can slow down wire breakage caused by frequent plugging and pulling. The standard total length is controlled at 200mm, and we support customized length modification to create targeted custom wire harness assembly for equipment with narrow operation space.
| Item | Description |
| Product Name | DC 5.5x2.5mm Male Female with Red Alligator Clip Power Test Cable |
| Type | Low-Voltage DC Test Wiring Harness / Portable Temporary Power Connection Cable |
| Voltage | DC 500V Test Voltage, 12V/24V Working DC, Custom Voltage Supported |
| Pins Material | Nickel-Plated Brass DC Barrel Terminals, Tin-Plated Copper Alligator Clip Jaws |
| Plug Material | Red PVC DC Connector Housing, Full Red Insulated Alligator Clip Cover, Black/Yellow PVC Outer Wire Jacket |
| Working Temperature | -20℃ ~ +80℃, Weather-Resistant Industrial Grade |
| Length | 200±20mm, Custom Length Fully Adjustable |
| Minimum Insulation Resistance | ≥10MΩ |
| Maximum Conduction Resistance | ≤3Ω |
| Electrical Test Standard | 100% Full Continuity Test, No Short Circuit, Open Circuit or Pin Misalignment |
| Compliance Standard | RoHS Environmental Compliance |
| Application Fields | Electronic circuit debugging, laboratory prototype power supply, auto equipment temporary power inspection, DIY electronic project wiring, battery pack power transfer connection, portable maintenance testing, small electronic device temporary power supply |
| Specific Shipping Cost | Please Contact Us for Accurate Quotation |
Every finished test cable will pass DC 500V withstand voltage test, full continuity inspection and swing mechanical test before leaving the factory to eliminate hidden dangers such as poor contact, short circuit and wire fracture. The separated yellow and black color-coded wires can help maintenance personnel quickly distinguish positive and negative poles, greatly reducing the probability of wiring errors in the debugging process. The dual DC male and female design also supports series connection of multiple small test equipment at the same time, significantly improving the working efficiency of electronic engineers and maintenance technicians.
This mini power conversion cable has a wide range of practical application scenarios. It can be used for power supply of electronic laboratory prototype testing, temporary power inspection of automotive small electronic equipment, wiring matching of DIY electronic production projects, and quick power transfer between battery packs and monitoring equipment. As a lightweight branch of our full series of custom cable assembly and wiring harness, it can be matched with different terminals and plugs to expand multi-specification test wire kits. It is also a practical dc cable adapter for daily circuit maintenance, and our team can redesign the wire structure to make exclusive custom wire harness assembly according to the special testing equipment parameters provided by customers.
