printing machine

Paper feed continuously,heavy-duty mechanism structure,full

functions,suitable for color printing with thin and thick paper.

FEATURES:

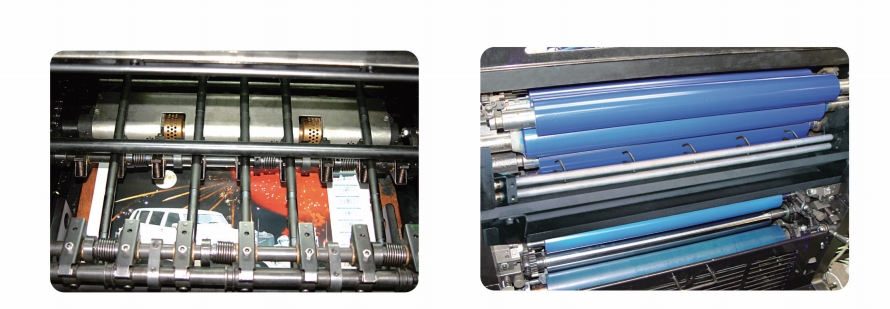

1.Heavy duty mechanism structure .Cast iron pedestal,frame, cylinders etc, have the

good intension and tenacity, ensuring high stability and good printing impression.

2.Underswing feeder, paper transferring structure is used high point gripper closed

structure, insuring paper transferring system more stably.

3.Double diameter impression cylinder and triple diameter transferring cylinder are

available, reducing the times of paper connection, improving register precision.

4.Plate cylinder and blanket cylinder go through with bearer, running stably ,ensuring

qualified printing image.

1. Plate adjustment function in vertical, lateral and cocking position. The minimum adjustment is based on 0.01mm,saving auxiliary adjustment time.

2. Semi-automatic plate loader and tightening equipment, make the plate loading more easy and convenient, shorten plate changing time, improving working efficiency.

3. Special design in paper feed head,paper board,front lay,gripper and other equipments.insuring all kinds of thick and thin paper printing.

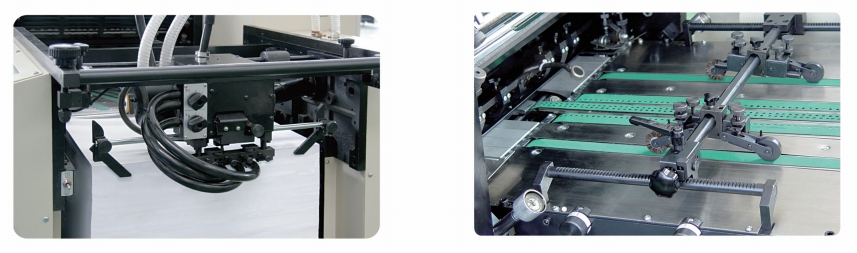

1.Paper fed continuously and stably,more suitable for thick and Thin paper printing.

2.Vacuum sucker table, 3 sucker type paper feed tape insures all kinds of paper conveying.

2. Pneumatic control system ,ensuring the press more stably.

3. High precision imported bearing, ensuring cylinder impression even in the high speed rotation.

4. Chromed cylinder, prolongs the operation life.

5. Automatic centralized oiling system,prolongs the working life.

6. Operators are under protection because of the installation of safety guard

1.Blower sucker and suction wheel are available in paper delivery section, insuring the paper delivery both in high and low rotation.

2.Auto ink roller cleaning equipment, shortens cleaning time, increases the color changed speed, reduces the labor work of operator. (OPTIONAL)

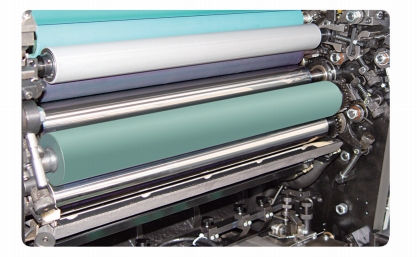

1.Alcohol dampening solution,continuous water feed,insuring water

balance during printing.

2.Automatic water volume tracking device, the water volume could

be changed according to the running speed of the machine after

the water volume fixed.

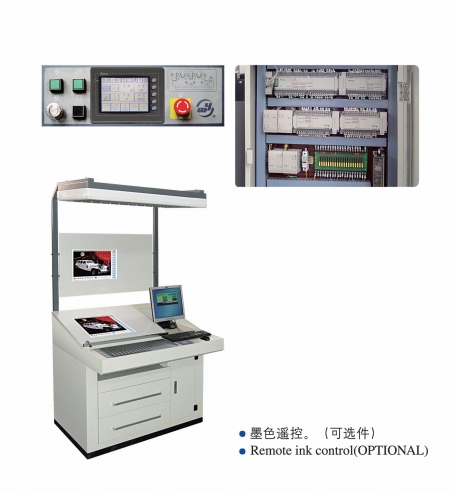

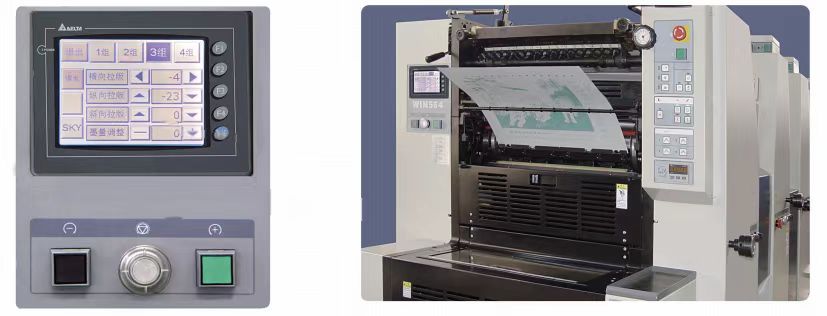

3.PLC device and touch-screen operating.
