Light Duty Vehicle OBDII 16Pin Male to Female Custom Wiring Harness
3 week ago
Product details
Equipped with full-automatic production lines covering wire cutting, terminal crimping, injection molding and comprehensive electrical performance testing, we support one-stop development from customer drawings to finished goods delivery. We keep optimizing production craftsmanship to deliver reliable vehicle cable assembly for auto repair chains, vehicle diagnostic equipment brands and automotive modification factories across global markets, and all raw materials strictly comply with RoHS automotive environmental standards to meet overseas vehicle aftermarket access requirements.
This Light Duty Vehicle OBDII 16Pin Male to Female Wiring Harness is a multi-branch expansion cable tailor-made for vehicle fault diagnosis and on-board electronic refitting. Unlike simple straight OBD extension leads with single output port on the market, this integrated assembly is equipped with standard OBDII male and female plugs, multiple split pigtail terminals and a matched fixed mounting bracket, realizing simultaneous data reading and multi-channel power tapping for vehicle ECUs. As a versatile vehicle diagnostic OBDII cable, it breaks the limitation of single-line signal transmission, bringing great convenience to maintenance technicians during vehicle detection and circuit modification work.
| Item | Description |
| Product Name | Light Duty Vehicle OBDII 16Pin Male to Female Custom Wiring Harness |
| Type | OBD Diagnostic Extension Wiring Harness / Custom Automotive OBD Cable Assembly |
| Voltage | DC 500V Test Voltage, 12V/24V Working DC, Custom Voltage Available |
| Pins Material | Nickel-Plated Brass OBDII 16Pin Terminals, Tinned Copper Wire Conductors |
| Plug Material | PA66+GF Automotive Grade OBDII 16Pin Male/Female Connector Housing, Black PVC Outer Jacket, Nylon Cable Ties, Plastic Mounting Bracket |
| Working Temperature | -40℃ ~ +105℃, Automotive Grade Weather Resistance |
| Length | 1676±40mm Total Length, Custom Length Fully Supported |
| Minimum Insulation Resistance | ≥10MΩ |
| Maximum Conduction Resistance | ≤3Ω |

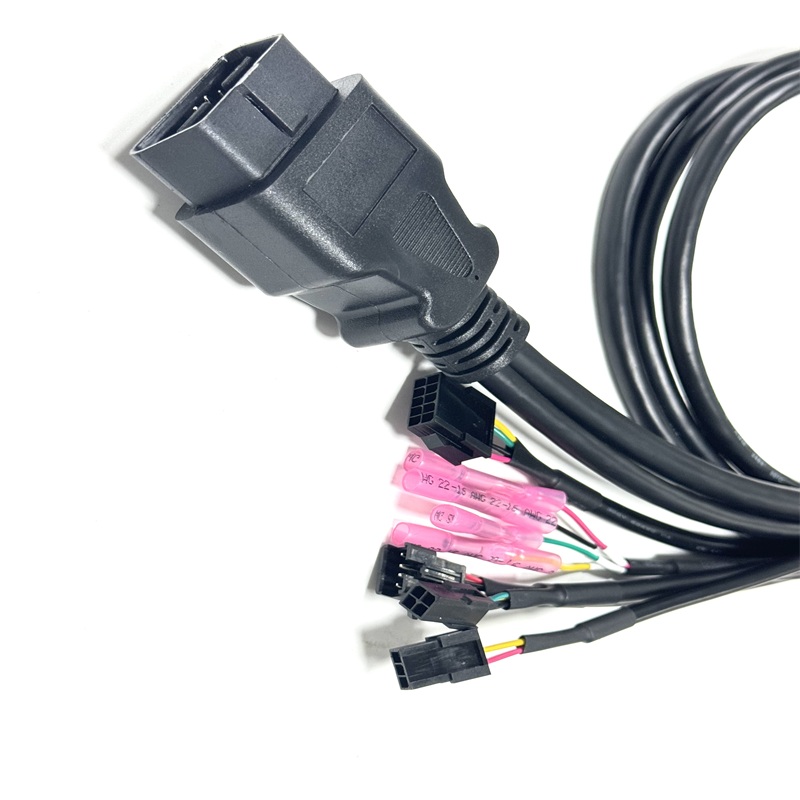

| Connector Configuration | OBDII 16Pin Male Plug, OBDII 16Pin Female Socket, Multiple Pigtail Terminals with Heat Shrink Tubing, Plastic Mounting Bracket |
| Application Fields | Automotive OBD diagnostic extension, vehicle fault code reading, car modification wiring, automotive electronic device power supply, DIY automotive electrical projects, fleet vehicle maintenance, custom automotive wiring harness projects |
| Specific Shipping Cost | Please Contact Us |

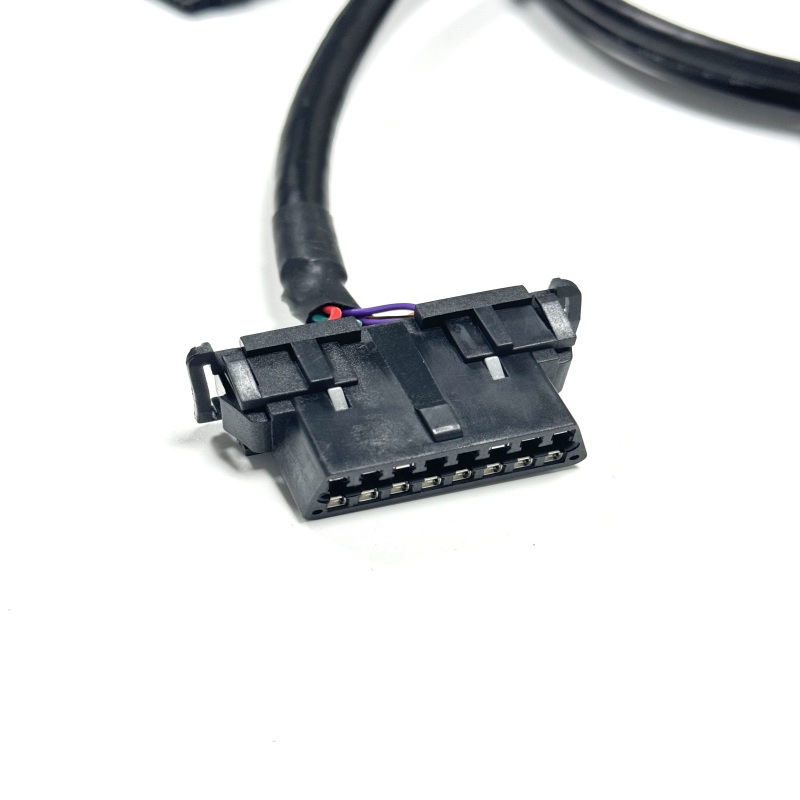

The two ends adopt PA66+GF automotive-grade OBD connector shells, with nickel-plated brass pins that maintain stable signal transmission even after thousands of plug-and-pull cycles. The internal wires adopt UL2464 multi-core composite shielded cable, which effectively isolates electromagnetic interference generated by vehicle engines and electrical modules, avoiding data loss or reading failure during diagnosis. We classify internal conductors with standard color coding, and use heat shrink tubes to wrap all split terminal joints for insulation protection. The overall finished length is controlled at 1676mm, and our engineering team can adjust branch length, wire gauge and pin definition to create exclusive automotive diagnostic cables matching different light-duty vehicle detection equipment installation space.

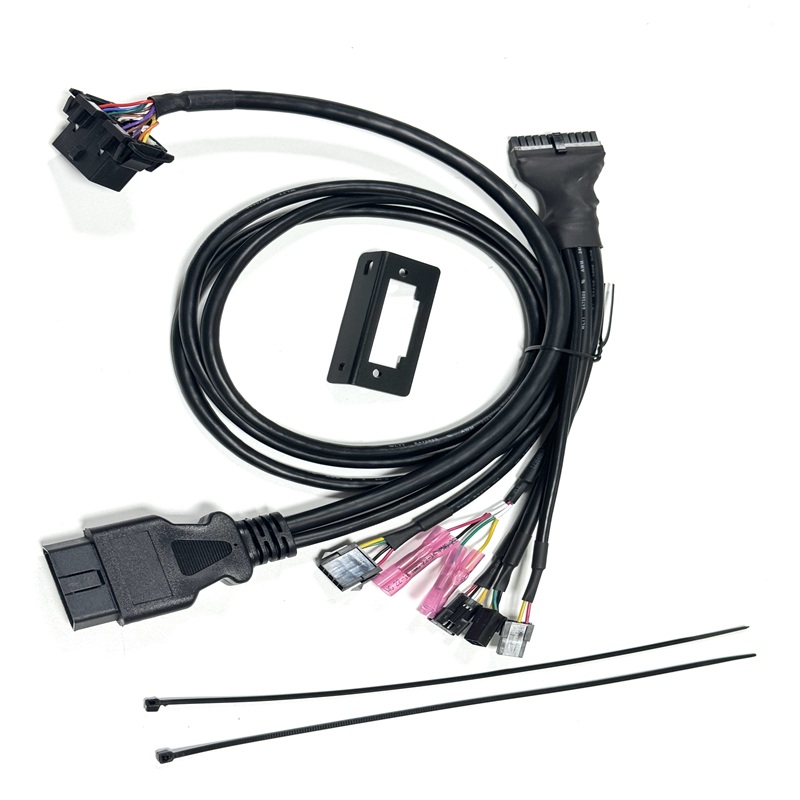

Every finished harness undergoes DC 500V withstand voltage test, full continuity inspection and terminal tensile strength test before packaging, eliminating hidden dangers such as open circuit, short circuit and loose terminal shedding. The matched plastic mounting bracket allows fixed installation inside the cab, preventing the harness from shaking and abrasion caused by vehicle bumps during driving. Supporting nylon cable ties are provided in the package to help workers tidy up redundant wiring, effectively reduce messy wiring layout during maintenance and modification operations.
This multi-branch OBD expansion wiring assembly has rich cross-scenario application value. It can be used as an extension connection line for vehicle fault diagnostic scanners, power tapping harness for modified on-board electronic equipment, and signal test wiring for light commercial vehicle ECU detection. As a mature customized branch of our full series of vehicle cable assembly, it can be matched with different terminal connectors to expand multi-channel diagnostic wiring kits. It also serves as core supporting vehicle diagnostic OBDII cable for portable vehicle detection instruments, and we can redesign branch layout and wire structure to produce targeted automotive diagnostic cables according to the special detection demands of commercial vehicle maintenance manufacturers.
