Multi Terminal Wire Harness

We have rich experience in designing multi-branch, high-temperature resistant wiring assemblies for automotive and industrial control devices, and deliver stable finished wiring products to modification factories, industrial equipment manufacturers and electronic engineering brands all over the world. Our mature production process can flexibly realize customized branch layout and terminal matching, supporting clients to obtain exclusive electrical harness assembly that perfectly matches their equipment internal wiring space, and all raw materials pass RoHS compliance inspection to meet global export standards.

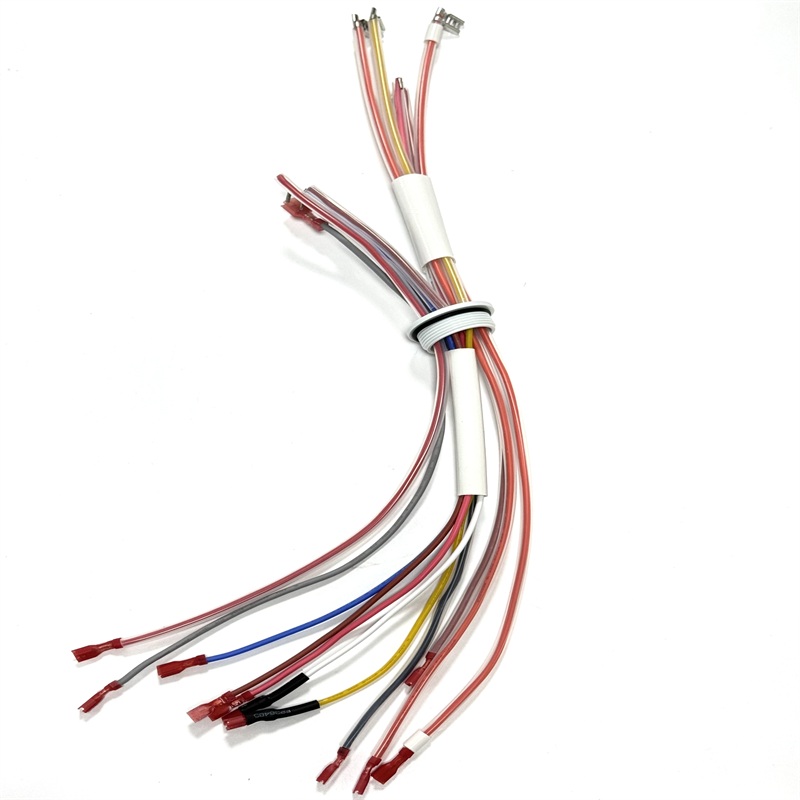

This Multi Terminal Wire Harness (LOOM-05) is a high-temperature resistant multi-branch wiring assembly developed for equipment internal signal and power distribution transmission. Unlike ordinary single-color PVC wire harnesses with simple branch layout, this product adopts multi-color UL3135 silicone high-temperature wires, matched with multi-type terminals including spade terminals, flag terminals and full-wrap pin headers on both ends, and is equipped with M32 threaded waterproof nylon gland and fiberglass protective sleeves to realize waterproof, high-temperature and wear-resistant integrated protection. It can serve as core internal wiring for on-board control modules, being a reliable customized branch of standard car wiring harness.

Item	Description
Product Name	Multi Terminal Wire Harness
Type	Multi Pin Terminal Wiring Harness / Custom Multi Branch Cable Assembly
Voltage	DC 500V Test Voltage, 12V/24V Working DC, Custom Voltage Available
Pins Material	Tin-Plated Brass Spade Terminals, Nickel-Plated Brass 2.8mm Pin Headers
Plug Material	PA66+GF Nylon Threaded Cover, Silicone Rubber Waterproof Gasket, Fiberglass Sleeves, Black PVC Insulation, Transparent PVC Tubing
Working Temperature	-40℃ ~ +105℃, High Temperature Resistant Silicone Wire Insulation
Length	Customized Branch Lengths (350mm/400mm/450mm etc.), Custom Length Fully Supported
Minimum Insulation Resistance	≥10MΩ
Maximum Conduction Resistance	≤3Ω
Compliance Standard	RoHS Environmental Compliance
Application Fields	Automotive electronic wiring, industrial control equipment wiring, custom multi-branch cable assemblies, DIY electronic projects, automotive modification wiring, sensor signal transmission harnesses
Specific Shipping Cost	Please Contact Us

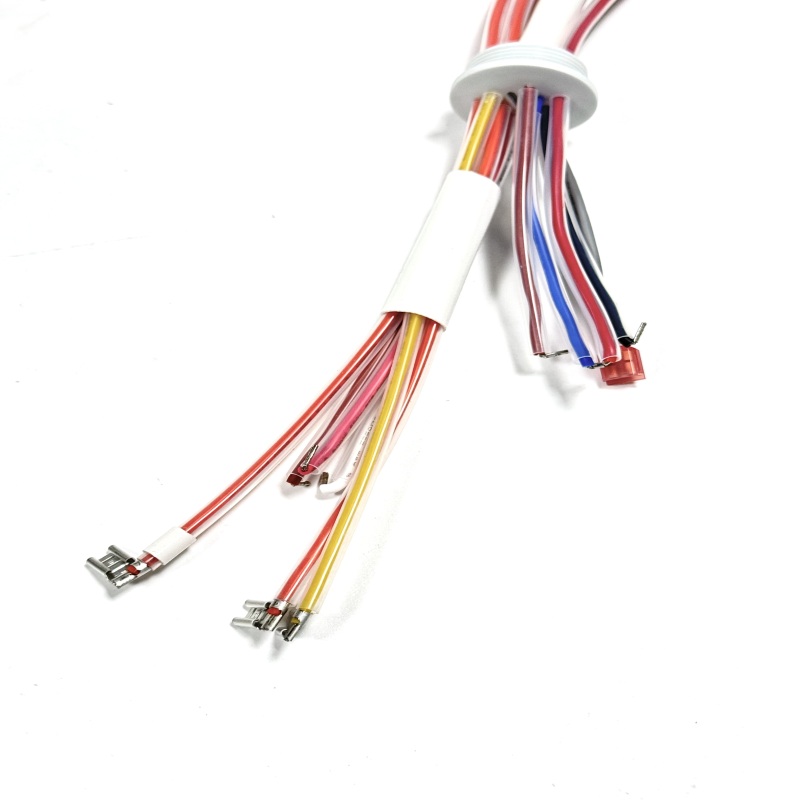

All internal conductors are 18AWG tin-plated silicone wires that can stably work under -40℃ to 105℃ extreme temperature environment, effectively avoiding insulation aging caused by long-term heat accumulation inside vehicle equipment or industrial cabinets. Different branch lengths are preset according to equipment wiring layout, and transparent PVC sleeves and heat shrink tubes are wrapped at each terminal joint for double insulation isolation, which can effectively prevent short circuit caused by wire friction and contact. The middle section adopts large fiberglass tube for concentrated wire bundling, which avoids messy wire arrangement and improves the tidiness of internal equipment wiring. We can adjust wire gauge, single branch length, terminal type and color collocation according to customer equipment drawings, to build exclusive custom cable assembly and wiring harness suitable for compact installation space of automotive electronic control boxes and industrial sensor modules.

Every finished wiring assembly will pass DC 500V withstand voltage test, full continuity inspection and terminal tensile test before leaving the factory, eliminating hidden dangers such as open circuit, poor contact and terminal falling off. The matched silicone waterproof ring at the threaded gland can block dust, water mist and oil stain from invading the equipment interior, greatly extending the service life of internal circuit transmission. Color-coded wires can help maintenance engineers quickly distinguish power supply, ground wire and signal lines, significantly reducing the error rate during equipment assembly and after-sales overhaul.

This multi-terminal silicone wiring assembly has wide cross-industry application adaptability. It can be used as internal distribution wiring of automotive electronic control modules, signal transmission harness for industrial automation sensors, multi-channel power split wiring for DIY electronic test equipment, and high-temperature wiring for vehicle modified control boxes. As a high-temperature resistant customized branch of our full series of electrical harness assembly, it can be combined with different waterproof glands and terminal accessories to expand multi-channel equipment internal wiring kits. It is also a high-performance variant of conventional car wiring harness for engine compartment and instrument panel internal wiring, and our engineering team optimizes wire bundling and heat insulation structure to create targeted custom cable assembly and wiring harness for clients with high temperature and multi-branch wiring demands.
