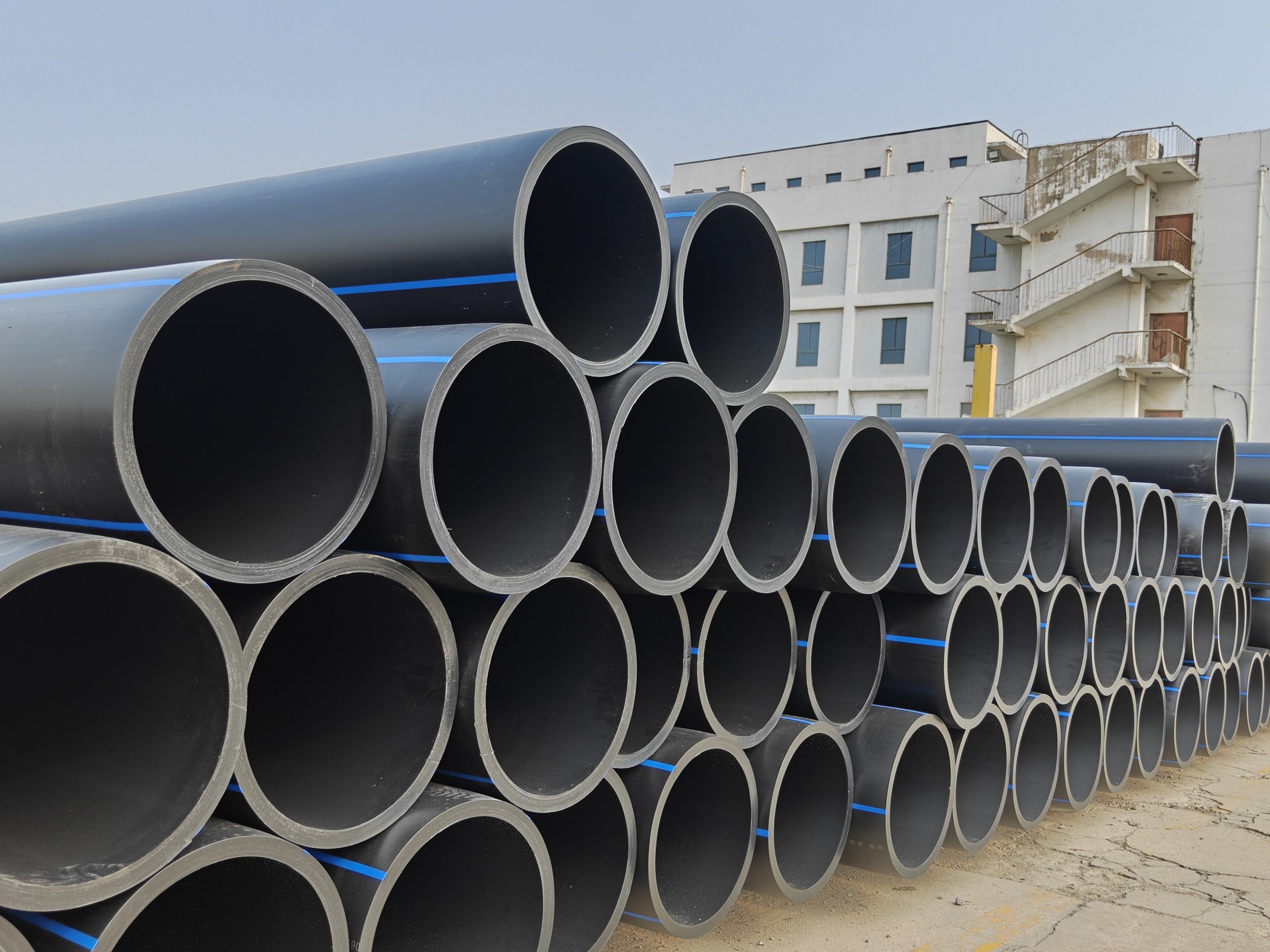

PE100 WATER PIPES

2 week ago

0 0 

10 month

Product details

Application precautions

1. PE water supply pipelines shall not be arranged on materials, products, and equipment that may cause combustion, explosion, or damage when in contact with water.

2. The installation location shall not hinder production operations, transportation, or the use of buildings.

3. Pipelines shall not pass through flues or air ducts.

4. It is not allowed to hang it in food warehouses, valuable commodity warehouses, ventilation rooms, and power distribution rooms.

5. Waterproof measures should be taken when PE water supply pipelines pass through the exterior walls of basements or underground structures.

6. Efforts should be made to avoid crossing rooms with high hygiene and installation requirements, such as bedrooms and wards, and to avoid approaching interior walls adjacent to bedrooms.

7. It shall not be arranged above the main and auxiliary food operation rooms in the living room, canteen, and kitchen; It cannot be installed in food storage rooms, halls, libraries, or factories with special hygiene requirements.

8. When there is a requirement for anti condensation in buildings, anti condensation measures should be taken in places where there is a possibility of condensation on the outer wall of PE water supply pipes.

PE water supply pipe product specifications

Outside	0.6MPa	0.8MPa	1.0MPa	1.25MPa	1.6MPa	2.0MPa
Diameter	Thickness (mm)	Thickness (mm)	Thickness (mm)	Thickness (mm)	Thickness (mm)	Thickness (mm)
Dn(mm)
20				2	2.3	2.3
25					2.3	3
32			2.3	2.4	3	3.6
40			2.4	3	3.7	4.5
50		2.4	3	3.7	4.6	5.6
63	2.5	3	3.8	4.7	5.8	7.1
75	2.9	3.6	4.5	5.6	6.8	8.4
90	3.5	4.3	5.4	6.7	8.2	10.1
110	4.2	5.3	6.6	8.1	10	12.3
125	4.8	6	7.4	9.2	11.4	14
140	5.4	6.7	8.3	10.3	12.7	15.7
160	6.2	7.7	9.5	11.8	14.6	17.9
180	6.9	8.6	10.7	13.3	16.4	20.1
200	7.7	9.6	11.9	14.7	18.2	22.4
225	8.6	10.8	13.4	16.6	20.5	25.2
250	9.6	11.9	14.8	18.4	22.7	27.9
280	10.7	13.4	16.6	20.6	25.4	31.3
315	12.1	15	18.7	23.2	28.6	35.2
355	13.6	16.9	21.1	26.1	32.2	39.7
400	15.3	19.1	23.7	29.4	36.3	44.7
450	17.2	21.5	26.7	33.1	40.9	50.3
500	19.1	23.9	29.7	36.8	45.4	55.8
560	21.4	26.7	33.2	41.2	50.8	62.5
630	24.1	30	37.4	46.3	57.2	70.3
710	27.2	33.9	42.1	52.2	64.5	79.3
800	30.6	38.1	47.4	58.8	72.6	89.3
900	34.4	42.9	53.3	66.2	81.7
1000	38.2	47.7	59.3	72.5	90.2
1200	45.9	57.2	67.9	88.2

The full product portfolio we specialize in manufacturing covers all mainstream plastic pipeline systems for global municipal, agricultural and industrial projects:

1.PE Water Supply Pipe

2.PVC-U water supply pipe

3.PVC-M water supply pipe

4.PVC-UH Pipes

5.PVC chemical pipes

6.PE-RT II type insulation pipe

7.PERT floor heating pipes

We warmly welcome customers from all over the world to visit our factory for field inspection and business negotiation.
