2x1x1m Hexagonal Woven Gabion Basket 80x100mm – Galvanized & PVC Coated Stone Cages for Retaining Walls
2x1x1m Standard Size | 80x100mm Hex Mesh | 2.7-5.0mm Wire | HDG / PVC Coated | Double-Twist Woven
Product Overview
ANJIA Group supplies 2x1x1m hexagonal woven gabion baskets with 80x100mm mesh opening – a flexible double-twist wire mesh cage designed for retaining walls, riverbank erosion control and slope stabilization. Manufactured from galvanized steel wire with optional PVC coating in multiple colours, the hexagonal double-twist structure allows the basket to flex and adapt to uneven ground without structural failure. When filled with stone, each 2x1x1m basket forms a permeable gravity-retaining unit that drains freely and integrates naturally with the surrounding landscape. The 80x100mm mesh opening provides reliable stone retention for medium-sized rock fill while maintaining structural flexibility. Flat-packed panels with lacing wire and spiral binders included for efficient transport and quick on-site assembly. Custom basket sizes, wire diameters and coating options can be confirmed according to project drawings and BOQ.

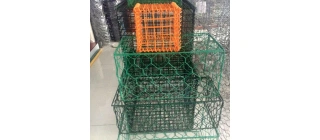

PVC coated hexagonal gabion baskets – multi-colour options

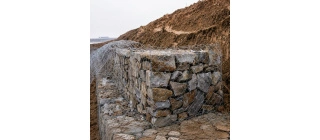

Hexagonal gabion baskets at riverbank project
2x1x1m Hexagonal Woven Gabion Basket Specifications
| Parameter | Standard Options |
|---|---|
| Product Type | Hexagonal Woven Gabion Basket / Double-Twist Wire Mesh Cage |
| Mesh Type | Hexagonal double-twist woven wire mesh |
| Standard Size | 2x1x1m (LxWxH); other sizes fully customizable |
| Mesh Opening | 80x100mm (standard); 60x80mm, 100x120mm available |
| Wire Diameter | 2.7mm, 3.0mm, 4.0mm, 5.0mm (confirm per project) |
| Surface Treatment | Hot-dip galvanized (HDG), PVC coated (green, grey, black, brown) |
| Selvedge Wire | 3.0mm, 4.0mm (heavier than mesh wire for edge reinforcement) |
| Lacing Wire | 2.2mm, 3.0mm |
| Diaphragm | Every 1m (standard); spacing adjustable |
| Packing | Flat-packed panels on pallets, spiral binders & lacing wire included, moisture-proof wrap |
Key Advantages – Hexagonal Woven Gabion Baskets
Hexagonal double-twist weave allows the basket to flex with ground movement without breaking, ideal for riverbanks and uneven terrain.
Available in green, grey, black and brown PVC coating for enhanced corrosion protection and aesthetic integration with natural surroundings.
Stone-filled baskets allow water to drain freely, reducing hydrostatic pressure. Vegetation can grow through the structure over time.
Folded panels on pallets with all assembly accessories included, maximizing container space and reducing freight cost.
Applications
Information Needed for a Quotation
- Basket dimensions (confirm 2x1x1m or specify custom)
- Mesh opening (confirm 80x100mm or specify alternative)
- Wire diameter (mesh, selvedge, lacing)
- Surface treatment (HDG or PVC coated; PVC colour if applicable)
- Diaphragm spacing
- Quantity (pieces or total volume)
- Destination port and project drawings if available
Packing & Export
Gabion baskets are flat-packed as folded mesh panels on pallets with spiral binders and lacing wire included. Moisture-proof film, corner protectors and steel strapping are applied. A container loading plan is provided before shipment.
Related Products
Hexagonal Wire Mesh | Chain Link Fence | Welded Wire Mesh | Galvanized Wire
FAQ – Hexagonal Woven Gabion Basket 2x1x1m
It is a stone cage made from woven wire mesh where each wire is twisted twice around adjacent wires, creating a flexible hexagonal structure that can absorb ground movement without breaking.
Woven gabions are flexible and suit uneven terrain, riverbanks and slopes. Welded gabions offer a rigid, clean appearance for straight retaining walls and landscaping where uniform shape is preferred.
Green, grey, black and brown are standard. PVC coating provides enhanced corrosion protection and allows the gabion to blend with natural surroundings.
Yes. Length, width, height, mesh opening, wire diameter and coating can all be customized according to your project BOQ or drawings.
Flat-packed as folded panels on pallets with spiral binders and lacing wire included. Moisture-proof film and steel strapping applied. Container loading plan provided.
ANJIA Group – Gabion Basket Manufacturer Since 1996
Hebei Conquer Hardware Wire Mesh Co., Ltd., a subsidiary of Anjia Group, operates a 72,000m2 ISO 9001:2015 and ISO 14001:2015 certified factory in Anping, China. With over 30 years of manufacturing experience, we produce hexagonal woven and welded gabion baskets with integrated wire drawing, galvanizing and PVC coating lines. Exported to 80+ countries. Available inspection and material documents can be checked for the ordered configuration.
