Product details

The DC jack connector this interface is commonly used in compact devices like home toys and routers, achieving low-impedance connection through phosphor bronze contacts. Some models also integrate auxiliary switches for power management. DC power socket is a 90-degree right-angle socket designed specifically for PCB boards. Its off-center layout effectively saves space, and the full DIP package ensures stable soldering. Interface size needs to match the power adapter, with common specifications such as 5.5*2.5mm.

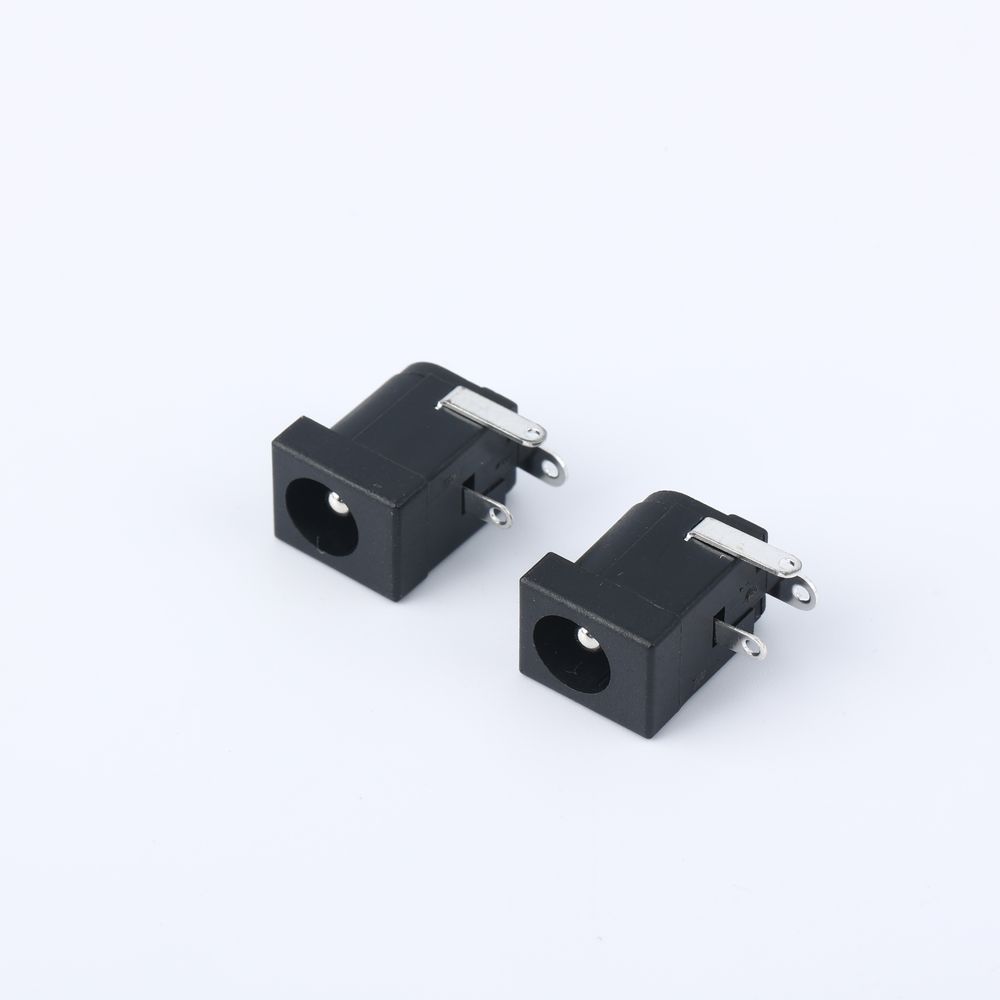

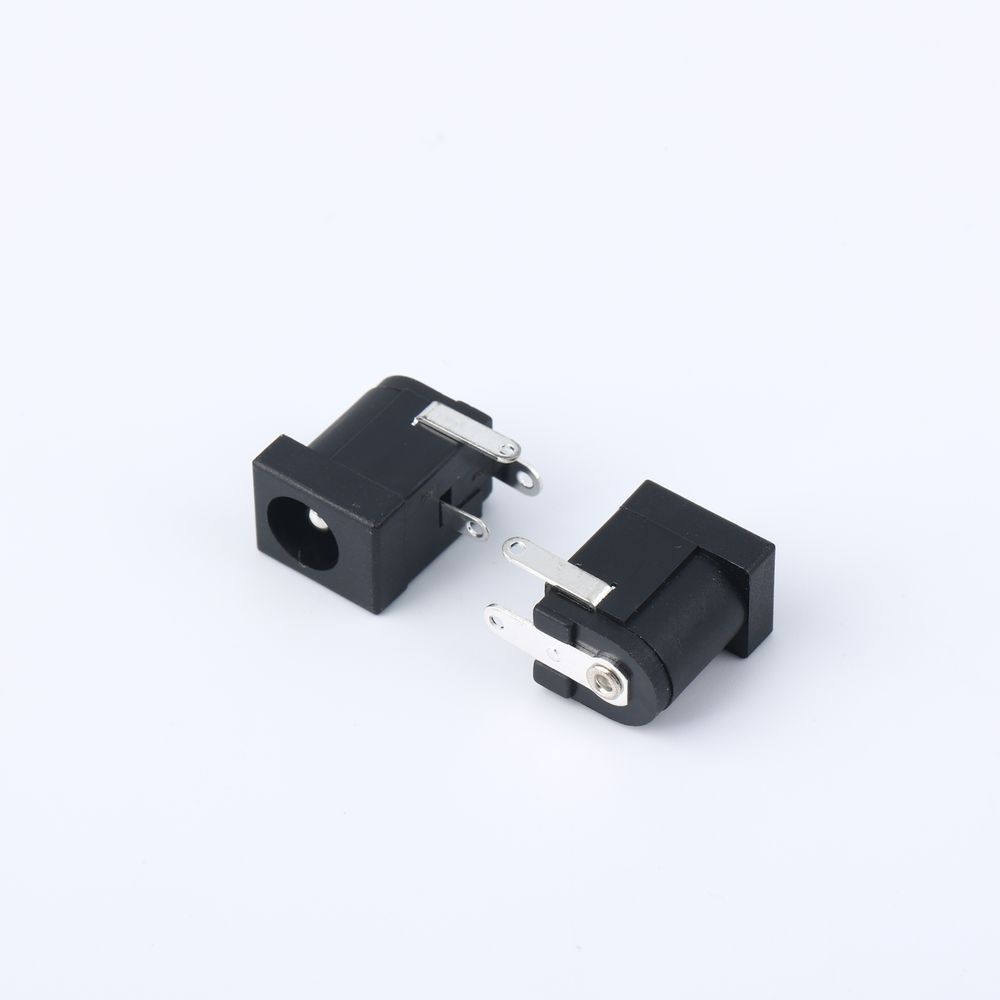

DC Power Jack connector

Material：

FLAT PIECE:	Brass H 65 T =0.4, Ag plated
SPRING:	phosphor Bronze T=0.3, Ag plated
CURVE PIECE:	Brass H 65 T=0.4, Ag plated
PIN:	Brass H65, Tin plated
Housing:	PBT BLACK
COVER:	PBT BLACK
ELECTRICAL CHARACTERISTICS:
RATING:	DC 20V 5A
CONTACT RESISTANCE:	30m MAX (INITIAL)
DIELECTRIC WITHSTANDING VOLTAGE:	500V AC FOR ONE MINUTE
INSULATON RESISTANCE:	100m MIN. MEASURED BY 250V DC
MECHANICAL CHARACTERISTICS:
INSERTION FORCE :	0.3~3.0 KGF
WITHDRAWAL FORCE :	0.3~3.0 KGF
LIFE TEST:	5000 CYCLES MIN.
Operation temperature:	-16~65℃
