Audio Jack connector

4 week ago

6 0 

Dong-Guan Yi-Feng Precision Metals Co.,Ltd

10 month

Product details

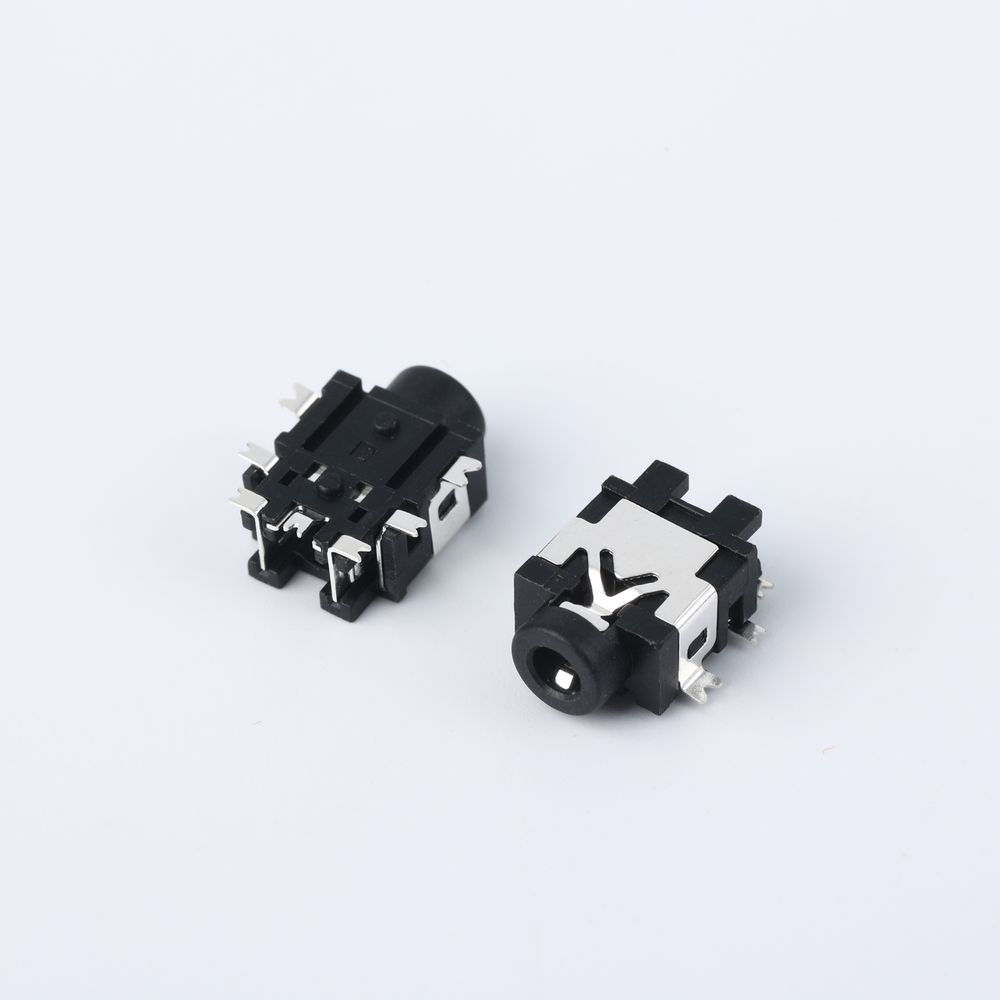

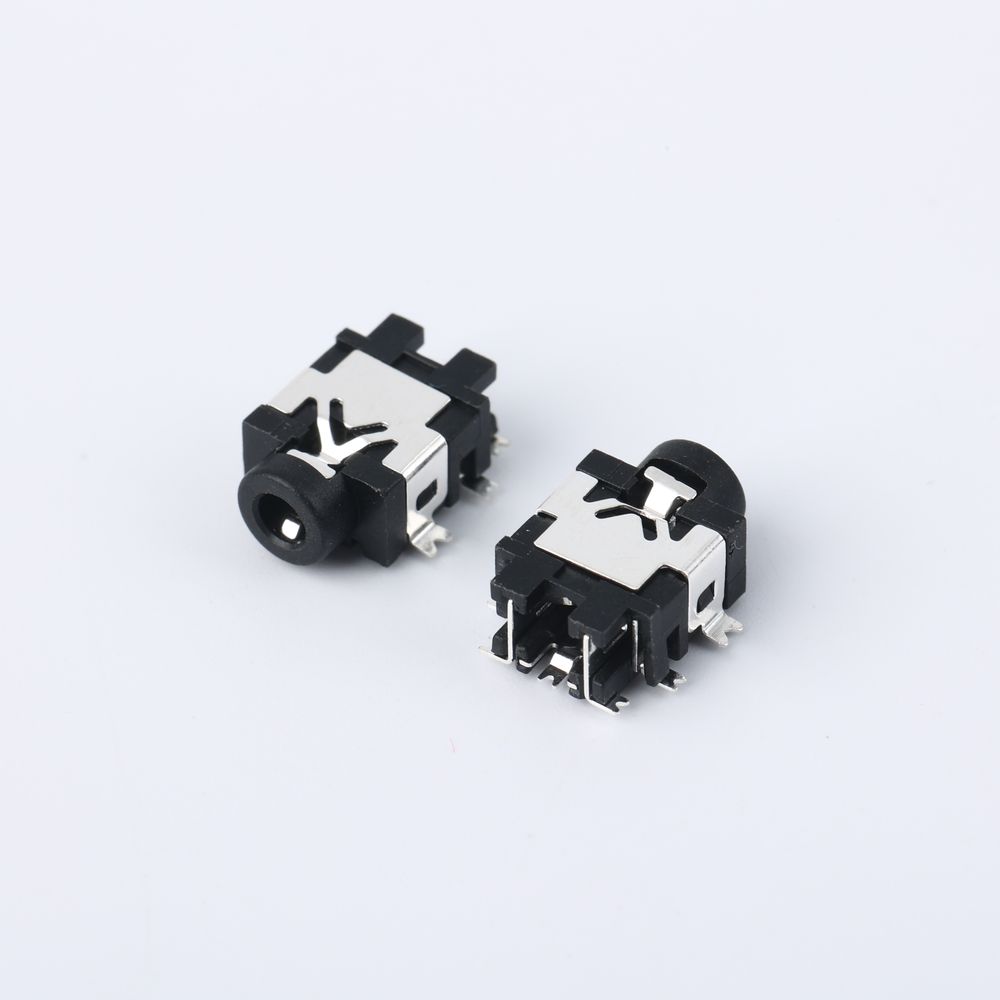

2.5mm jack connector, a two-ring three-level board with a circular opening, fully SMT (Surface Mount Technology) dual switch and positioning structure, is designed for ultra-small, high-density electronic devices.

Material description

HOUSING:	PA BLACK
TERMINAL:	BRASS T=0.25, AG PLATED
TERMINAL:	BRASS T=0.25, AG PLATED
TERMINAL:	PHOSPHOR BRONZE T=0.25, AG PLATED
TERMINAL:	PHOSPHOR BRONZE T=0.25, AG PLATED
TERMINAL:	PHOSPHOR BRONZE T=0.25, AG PLATED
TERMINAL:	PHOSPHOR BRONZE T=0.25, AG PLATED
CURUENT RATING:	1AMP
VOLTAGE RATING:	12VAC RMS
CONTACT RESISTANCE:	50mΩ MAX INITIAL, 100mΩ MIN AFTER LIFE TEST
INSULATION RESISTANCE:	100mΩ MIN, 500V DC INITIAL, 50mΩ MIN, 500VDC AFTER HUMIDITY TEST
DIELECTRIC WITHSTANDING VOLTAGE:	500V AC RMS 50(60) HZ 1 MINUTE
INSERTION FORCE :	0.3~3.0kgf
WITHDRAWAL FRCE :	0.3~3.0kgf
OPERATING LIFE:	5000 CYCLES MIN
OPERATING TEMPERATURE:	-30℃~+80℃

The core value of the audio jack connector lies in the extreme space compression, compatibility with automation, and intelligent audio switching capability. It is the preferred audio interface solution for TWS earphone charging cases, smart wearables, and industrial portable terminals. The phone jack connector support for professional-grade monitoring headphones or medical-grade heart rate audio feedback devices, meeting the requirements of low latency and high fidelity.
