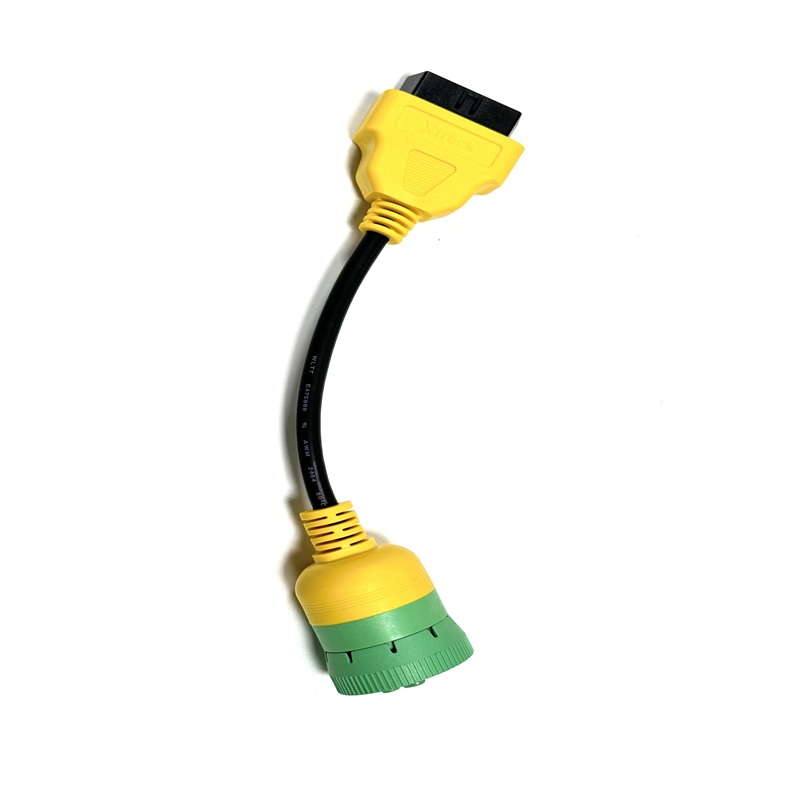

OBDII 16Pin Female to Cummins 9Pin Male Diagnostic Cable, Yellow-Green Overmold
6 day ago
Product details
With mature overmolding technology and strict electrical testing standards, we can produce reliable wiring accessories that adapt to harsh outdoor maintenance environments. We supply stable aftermarket connection products to global truck repair workshops and diagnostic tool manufacturers, and continuously optimize structural durability of various automotive diagnostic cables for commercial vehicle maintenance scenarios. All raw materials comply with RoHS requirements to meet international heavy-duty equipment supply standards.
This OBDII 16Pin Female to Cummins 9Pin Male Diagnostic Cable is a dedicated protocol conversion adapter for Cummins diesel engine diagnosis. Distinguished from ordinary passenger vehicle connection wires, this short adapter cable realizes seamless signal conversion between standard OBD interface and Cummins 9Pin circular port. It acts as a professional OBD diagnostic cable, enabling diagnostic scanners to communicate directly with heavy-duty truck ECUs without cumbersome intermediate wiring during on-site maintenance.
| Item | Description |
| Product Name | OBDII 16Pin Female to Cummins 9Pin Male Diagnostic Cable, Yellow-Green Overmold |
| Type | Heavy Duty Truck Diesel Engine Diagnostic Wiring Harness / Commercial Vehicle OBD Adapter Cable |
| Voltage | DC 300V Test Voltage, 12V/24V Working DC, Custom Voltage Available |
| Pins Material | Nickel-Plated Brass OBD Terminals, High Foot Nickel-Plated Cummins 9P Contacts |

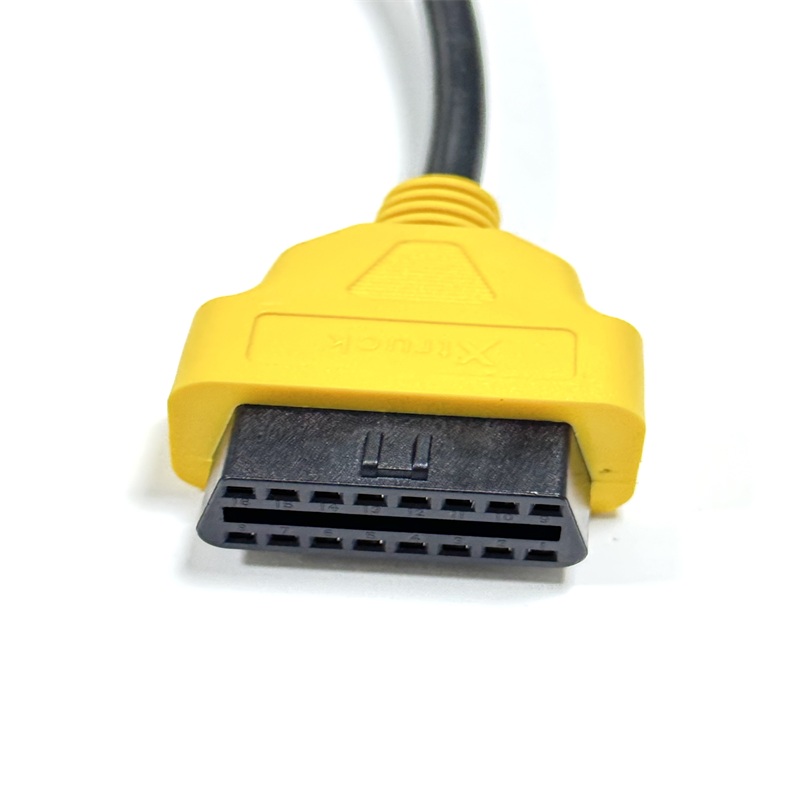

| Plug Material | ABS+PC OBDII 16P Connector Housing, PA66 Cummins 9Pin Green Connector Shell, Black UL2464 PVC Cable Jacket, Yellow PVC Injection Overmold with Strain Relief |
| Working Temperature | -40℃ ~ +105℃, Heavy-Duty Commercial Vehicle Grade |
| Length | 230±5mm Total Length, Custom Length Fully Supported |
| Minimum Insulation Resistance | ≥3MΩ |
| Maximum Conduction Resistance | ≤5Ω |
| Compliance Standard | RoHS Environmental Compliance |
| Application Fields | Heavy-duty diesel truck diagnostic scanning, Cummins engine fault code reading, commercial vehicle ECU programming, truck repair shop diagnostic tool connection, diesel machinery maintenance wiring, fleet vehicle inspection equipment accessory cable |
| Specific Shipping Cost | Please Contact Us |

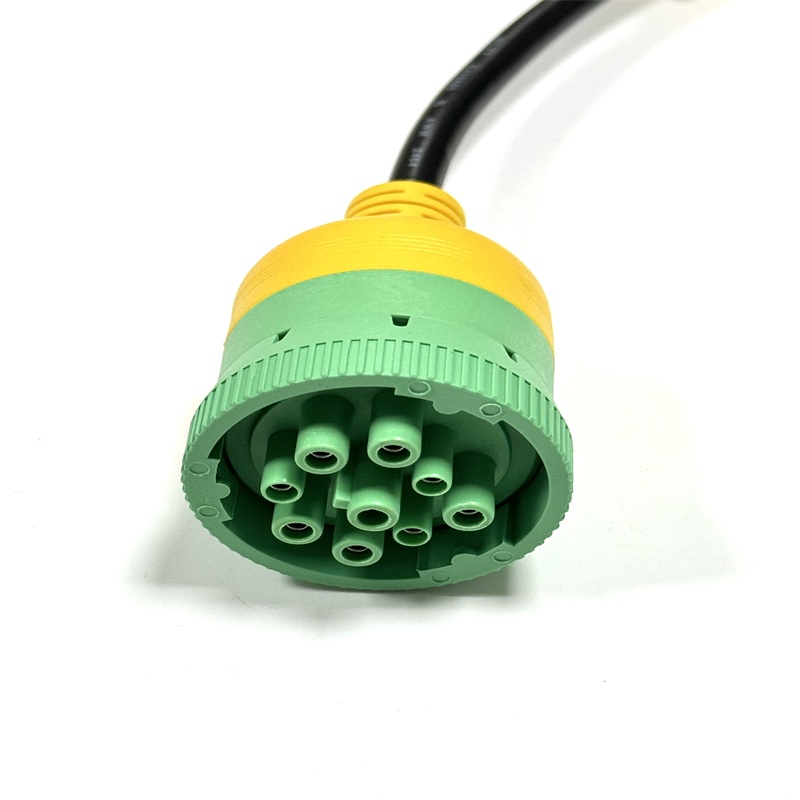

The cable adopts UL2464 multi-core composite wire with color-coded conductors, guaranteeing stable data transmission under continuous vibration of diesel vehicles. The integrated yellow injection molding overmold provides reinforced strain relief at the wire outlet to avoid wire fracture caused by frequent plugging and bending. The matching grass-green Cummins 9Pin circular connector features precise pin layout and tight locking structure, effectively preventing loose connection in bumpy working conditions. Our engineering team can adjust cable length, connector color and pin assignment according to different diagnostic device models to customize exclusive OBD cable suitable for various heavy-duty engine detection equipment.
Every finished adapter cable undergoes DC 300V withstand voltage test and full continuity inspection before delivery. All nickel-plated contact terminals are processed to resist oxidation, ensuring consistent signal conduction after long-term repeated use. Strict pin assignment follows Cummins official definition standards to avoid communication failure or equipment damage caused by wrong wiring. The compact short-body design makes it easy to carry and operate inside narrow truck cabins.
This heavy-duty diagnostic adapter cable has clear industry positioning and wide applicability. It is widely used for fault code reading, parameter monitoring and ECU programming of Cummins diesel heavy trucks and commercial vehicles. As a typical commercial vehicle model within our full series of automotive diagnostic cables, it can be combined with other conversion adapters to form a complete diesel engine diagnostic wiring kit. As a portable on-site maintenance OBD diagnostic cable, it greatly improves maintenance efficiency for truck service stations. We can further optimize anti-interference structure and wear-resistant outer sheath to deliver high-performance OBD cable solutions for professional heavy-duty diagnostic equipment brands.
