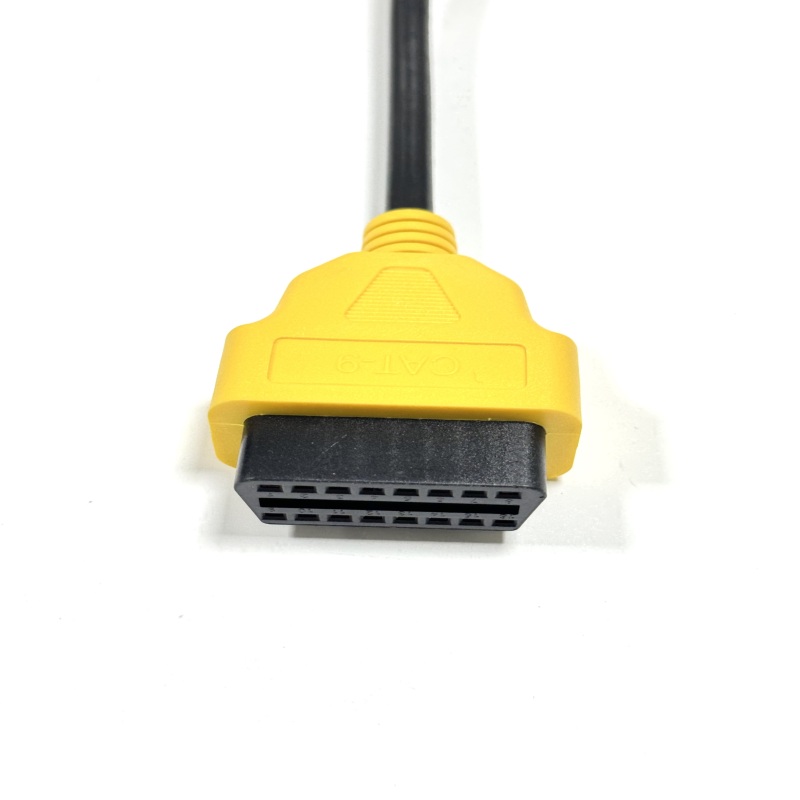

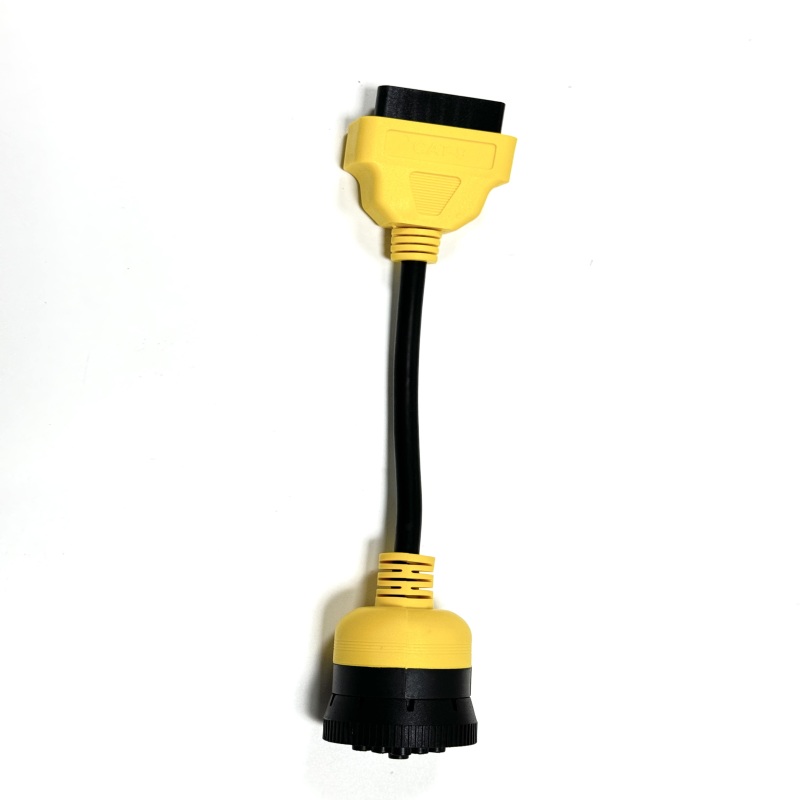

OBDII 16Pin Female to Cummins 9Pin Male CAT9 Diagnostic Adapter Cable, Black Connector Ring
6 day ago
Product details
We keep optimizing the structural stability and signal transmission consistency of various automotive diagnostic cables, providing reliable aftermarket supporting products for global heavy truck maintenance service providers and diagnostic tool manufacturers. All raw materials strictly comply with RoHS standards to meet cross-border automotive parts access requirements.
This OBDII 16Pin Female to Cummins 9Pin Male CAT9 Diagnostic Adapter Cable is a dedicated conversion harness for Cummins diesel heavy-duty vehicles. Different from general-purpose passenger car connecting wires, this adapter realizes signal intercommunication between standard OBD interface and Cummins 9Pin circular port. It works as a practical OBD diagnostic cable, allowing maintenance technicians to connect diagnostic scanners to vehicle ECUs directly without extra wiring when detecting heavy-duty trucks equipped with Cummins engines.
| Item | Description |
| Product Name | OBDII 16Pin Female to Cummins 9Pin Male CAT9 Diagnostic Adapter Cable, Black Connector Ring |
| Type | Heavy-Duty Truck Diesel Engine Diagnostic Wiring Harness / Commercial Vehicle OBD Conversion Cable |
| Voltage | DC 300V Test Voltage, 12V/24V Working DC, Custom Voltage Available |
| Pins Material | Nickel-Plated Brass OBD Terminals, High Foot Nickel-Plated Cummins 9Pin Contacts |
| Plug Material | ABS+PC OBDII 16Pin Connector Housing, PA66 Cummins 9Pin Connector Shell with Black Outer Ring, Black UL2464 PVC Cable Jacket, Yellow PVC Injection Overmold with Reinforced Strain Relief |
| Working Temperature | -40℃ ~ +105℃, Heavy-Duty Commercial Vehicle Grade |
| Length | 230±5mm Total Length, Custom Length Fully Supported |
| Minimum Insulation Resistance | ≥3MΩ |
| Maximum Conduction Resistance | ≤5Ω |
| Compliance Standard | RoHS Environmental Compliance |
| Application Fields | Heavy-duty diesel truck fault diagnosis, Cummins engine ECU data reading and programming, commercial vehicle maintenance scanner matching, truck repair shop diagnostic equipment accessory cable, engineering diesel machinery inspection wiring |
| Specific Shipping Cost | Please Contact Us |

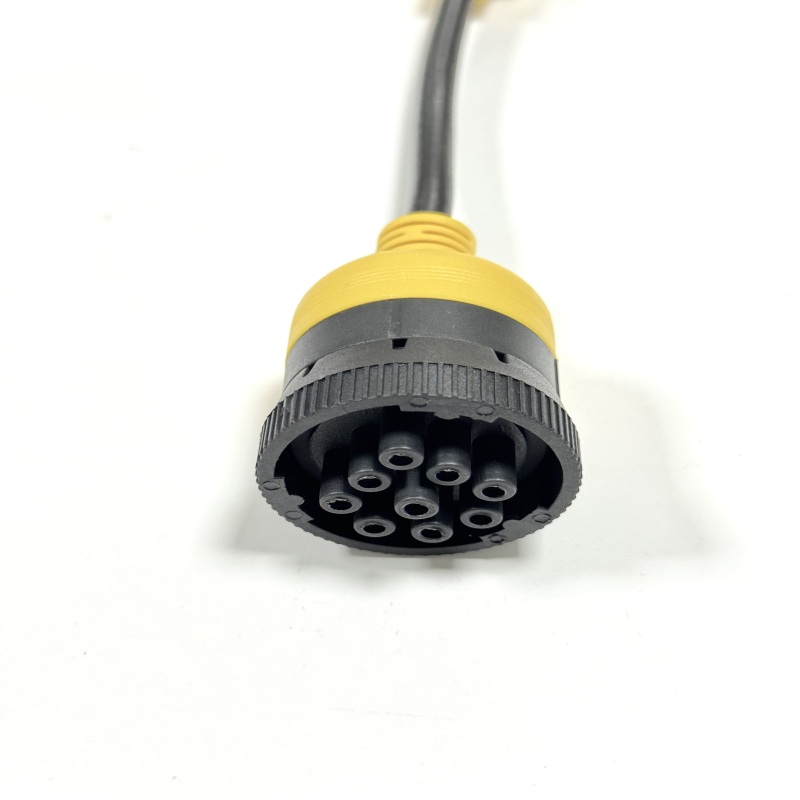

The harness adopts UL2464 multi-core composite cable with standardized color-coded conductors, which can maintain stable data communication under continuous vibration environment of diesel vehicles. Integrated yellow injection molding overmold effectively reinforces the wire outlet position, resisting wire core fracture caused by frequent plugging and repeated bending. The black-ring Cummins 9Pin circular connector adopts precise pin layout and anti-lock structure, effectively avoiding virtual connection and signal interruption during detection. Our technical team can adjust cable length, connector appearance and internal pin definition according to different diagnostic equipment models to develop customized vehicle diagnostic OBDII cable that matches various heavy-duty detection devices.
Each finished cable will pass DC 300V high voltage withstand test and 100% continuity inspection before delivery. All nickel-plated contact pins possess excellent anti-oxidation performance, ensuring stable conduction after long-term repeated plugging. Strictly following official Cummins pin assignment rules, the product effectively prevents communication failure or equipment damage caused by wrong wiring. The compact short cable design is convenient for storage and operation in narrow truck cab space.
This heavy-duty diagnostic conversion cable has clear market positioning and extensive application range. It is widely used in fault code reading, real-time parameter monitoring and ECU programming of Cummins diesel heavy trucks and commercial vehicles. As an important member of our full series of automotive diagnostic cables, it can be combined with multiple conversion adapters to form a complete diesel vehicle diagnostic wiring kit. As a portable maintenance-oriented OBD diagnostic cable, it greatly improves working efficiency for truck repair stations. We can further upgrade anti-interference structure and wear-resistant outer sheath to deliver high-performance vehicle diagnostic OBDII cable solutions for professional heavy-duty diagnostic equipment brands.
