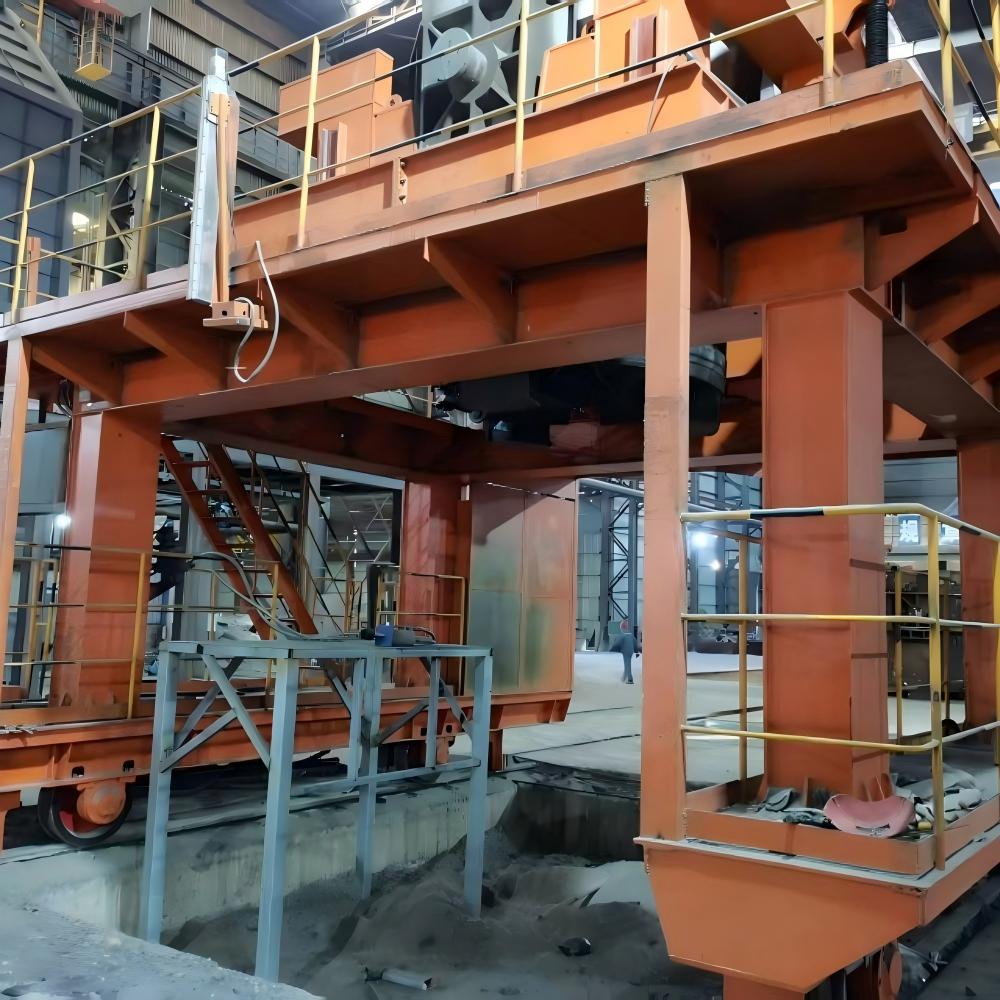

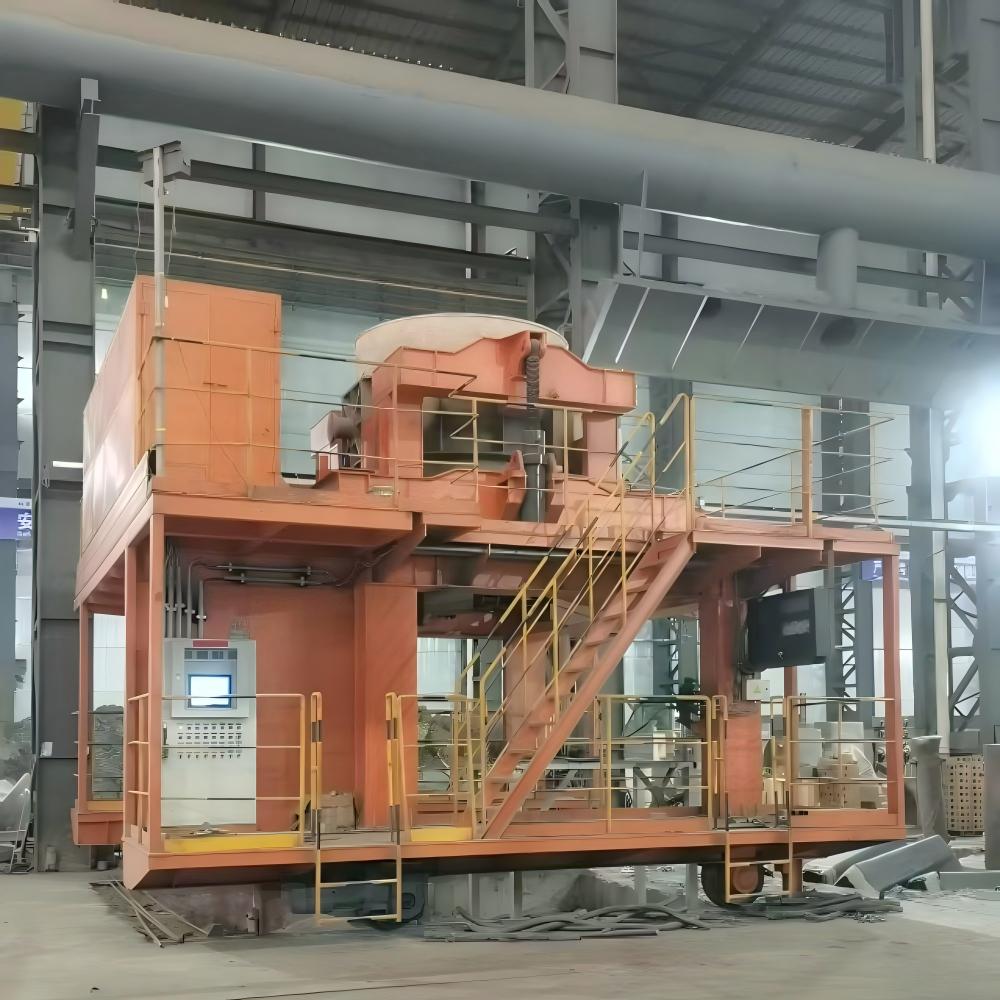

High Temperature Resistant Ladle Pouring Transfer Car
We supply multiple auxiliary equipment such as Casting Ladle Car, Foundry Ladle, Ladle Car, Scrap Basket Transfer Car and Scrap Steel Basket. A wide selection of additional supporting components is also available upon request. The full-automatic steel pouring car is professional core equipment for metallurgical casting lines. Matched with casting cranes, it realizes high-precision molten steel pouring for steel ladles. Integrated with variable-frequency traveling, precise translation, hydraulic lifting, intelligent weighing, laser centering and wireless control functions, the equipment adapts to both pit-type and vehicle-type casting processes. It improves pouring accuracy and automatic production level, serving as essential supporting equipment for modern steelmaking and casting lines.
Implementation Standards
The whole machine is designed, welded, assembled and inspected in strict accordance with international and industrial standards, covering mechanical safety, electrical specifications, hydraulic system, welding technology, coating and packaging. With high standard compliance and stable performance, it meets general acceptance and long-term operation requirements for metallurgical projects.
Core Features & Advantages
- Integrated Multi-function Design: Combines traveling, translation, lifting, weighing and automatic centering. One unit fits dual casting processes with strong universality.
- Full Safety Protection: Equipped with hydraulic self-locking, power-off emergency energy storage, anti-fall, anti-derailment and interlock brake systems to eliminate high-temperature operation risks.
- High-precision Pouring: Laser automatic centering and synchronous lifting system avoid molten steel splashing and deviation, reduce material loss and improve finished product yield.
- High Temperature Resistance & Durability: Key load-bearing and heating parts adopt heat-resistant boiler steel. Integrated thermal insulation and flame-retardant hydraulic medium ensure stable performance under harsh working conditions.
- Intelligent & Labor-saving: Dual control modes of on-board panel and wireless remote control reduce manual intervention and improve production efficiency.
- Low Maintenance Cost: Modular structure with high-quality brand components and non-destructive welding process ensures low failure rate and easy daily maintenance.
Equipment Configuration
1.Main Steel Structure
The main beam is welded with thickened Q235 steel plate, and the high-temperature load-bearing area adopts 20g heat-resistant steel plate. With 6400mm gauge and 300℃ design temperature, it supports 40t rated load and 1.25 times impact load, featuring high structural strength and thermal stability.
2.Traveling & Translation System
The cart adopts variable-frequency drive with smooth acceleration speed of 2-20m/min and precise jog positioning. Buffer and anti-derailment devices are installed at both rail ends. The trolley adopts dual hydraulic synchronous drive, with ±250mm horizontal translation stroke and stable operation.
3. Hydraulic Safety System
Three independent hydraulic units control ladle lifting, platform lifting and nozzle opening. All cylinders are equipped with hydraulic self-locking valves to prevent falling under power-off or pipeline damage conditions. The matched accumulator supports emergency operation, and the water-glycol flame-retardant medium ensures high-temperature safety.
4. Intelligent Weighing System
Equipped with heat-insulated and shock-absorbing weighing sensors to monitor real-time molten steel weight and flow rate. Data is wirelessly transmitted to the on-board LED display. Both static and dynamic weighing accuracy reaches 0.5% for accurate production measurement.
5. Laser Centering System
Automatic laser positioning device realizes fast and accurate pouring alignment. The laser head retracts automatically after positioning to avoid high-temperature damage, greatly improving working efficiency and pouring accuracy.
6. Electrical Control System
Adopts Siemens PLC and mainstream brand electrical components. High-temperature resistant cables and drag chain protection ensure stable circuit operation. Acousto-optic alarm, emergency stop and equipment interlock braking realize safe and intelligent control.
7. Safety Auxiliary Structure
Equipped with anti-slip platform, standard guardrails and maintenance ladders. The whole machine adopts anti-corrosion and high-temperature resistant coating, with non-destructive testing for key welds. Reserved hydraulic and air pipeline interfaces support later functional expansion.
Application Scope
Widely used in metallurgical steelmaking, special steel casting and heavy industry casting production. Suitable for pit-type and vehicle-type casting lines, including new intelligent casting line construction, old equipment upgrading and production capacity expansion projects.
