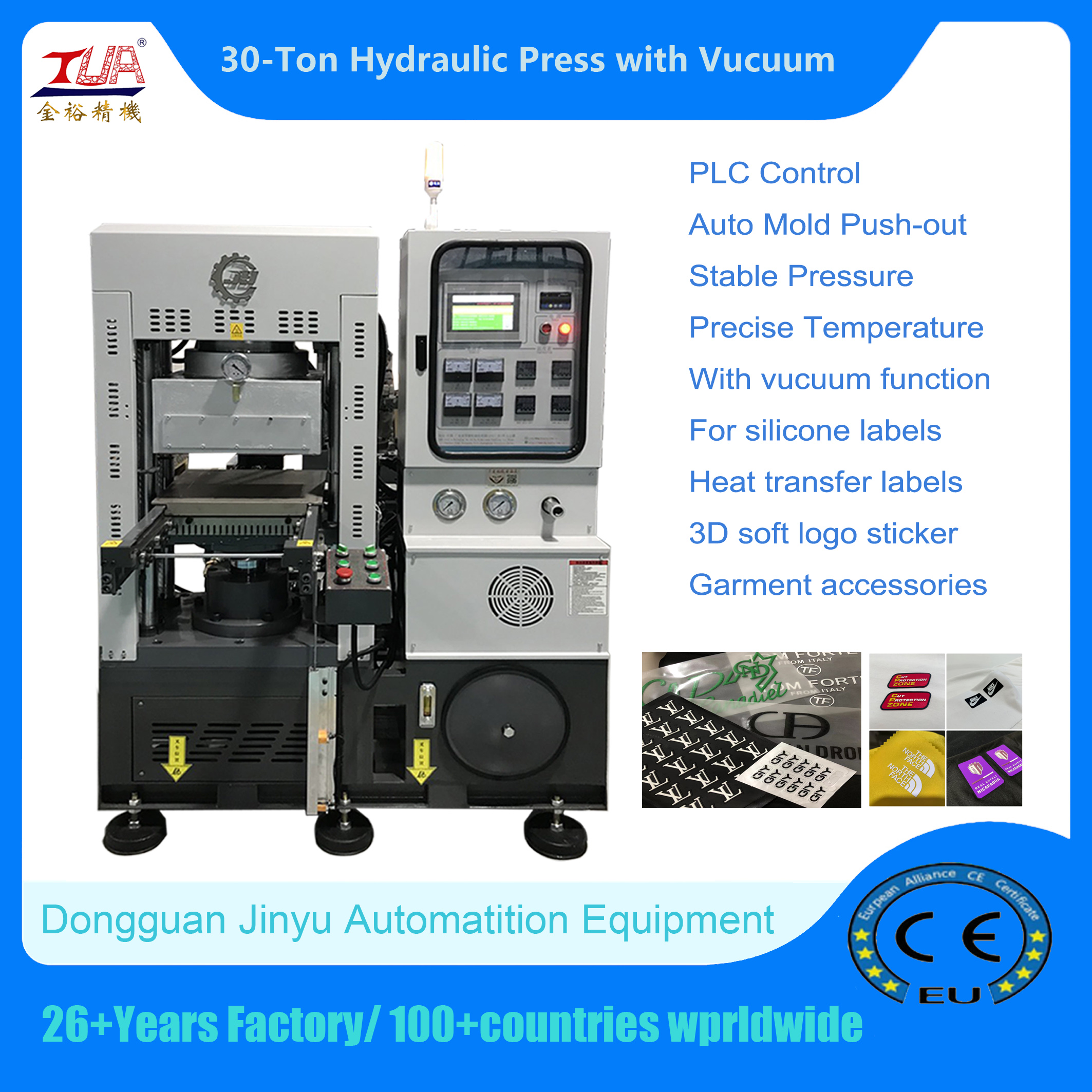

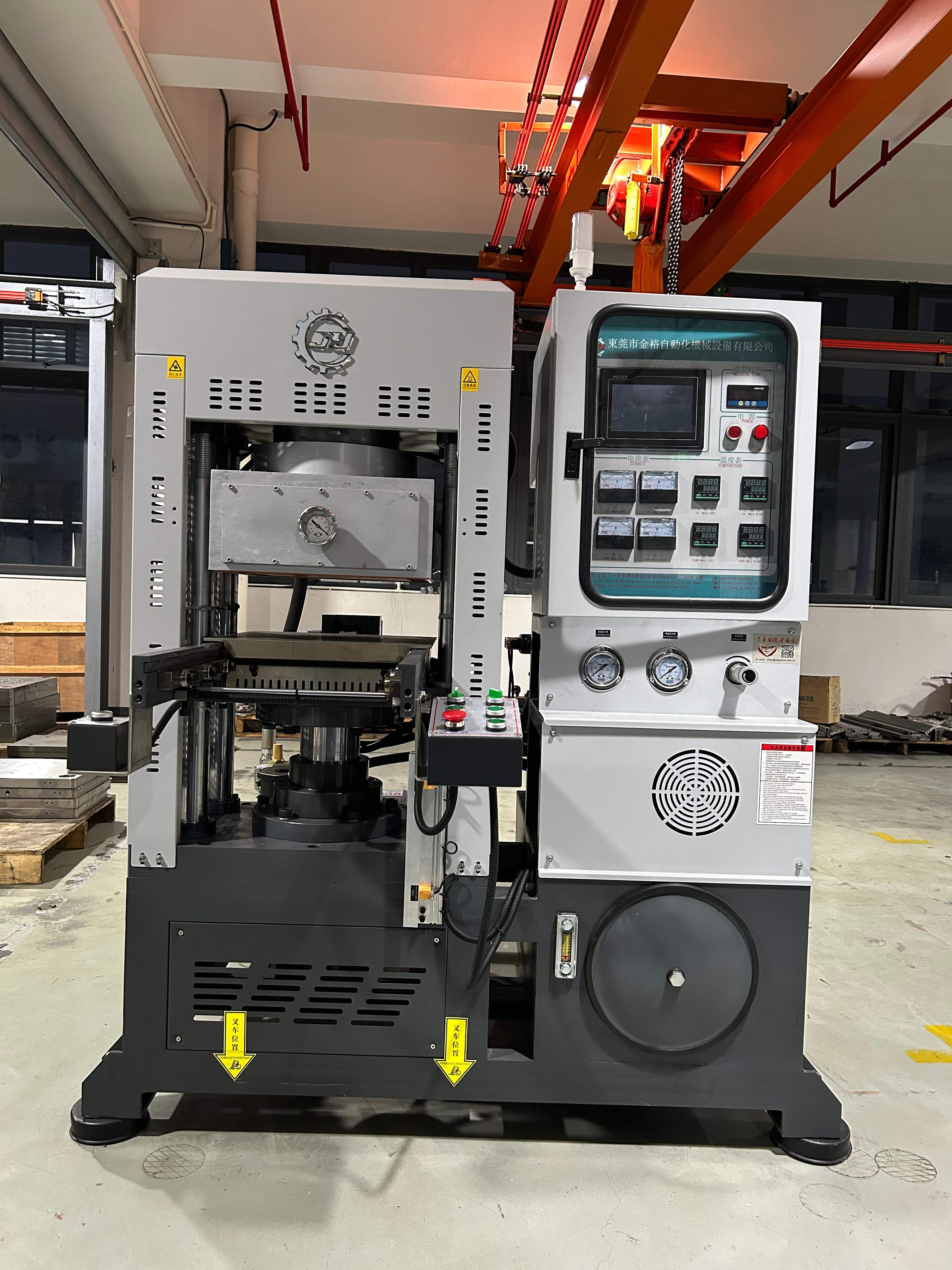

30Ton hydraulic press for silicone 3D label stickers
4 week ago
Product details
Jinyu Machinery TUA's Silicone Label In-Mold Heat Transfer Equipment (Vacuum Hydraulic Press Model) centers on vacuum technology, precise temperature control, stable pressure, and automation. It is specifically designed for the one-step molding of 3D silicone labels, ensuring high yield rates and efficiency.
| Model | JY-A02A-30-D-V1 | JY-A02A-30-F-V1 | JY-A02A-30-D-V3 |
| Voltage | 380V,3phase | 380V,3phase | 380V,3phase |
| Max working pressure | 30 Ton | 30 Ton | 30 Ton |
| Work area | 400*400mm | 300*300mm | 400*400mm |
| Power | 3.7kw | 3.7kw | 3.7kw |
| Total Power | 16kw | 16kw | 16kw |
| Max temp | 400℃ | 400℃ | 400℃ |
| Vucuum pump power | 1.5kw | 1.5kw | 3kw |
| Size | 1460*1700*1680mm | 1250*1530*1550mm | 1450*1780*1470mm |
| Weight | 1600kg | 1200kg | 1650kg |
I. Key Performance Features
Vacuum Molding for Bubble-Free Results
Equipped with a vacuum reservoir for rapid air evacuation; supports vacuum processing for liquid silicone and automatic air venting for solid silicone, resulting in finished products that are bubble-free, resistant to delamination, and possess a distinct 3D profile.
Precise Temperature Control (±2°C)
Adjustable range from room temperature to 400°C with independent upper and lower zone control; uniform heating plate ensures no pattern distortion or edge scorching, while maintaining consistent adhesion.
Stable Pressure for Full, Defined Molding
Available in 30, 50, or 63-ton capacities; features dual high/low-pressure control and multi-stage pressure adjustment. Uniform pressure (±0.5 MPa) ensures solid bonding for thin or thick labels, as well as multi-layer and multi-color designs.

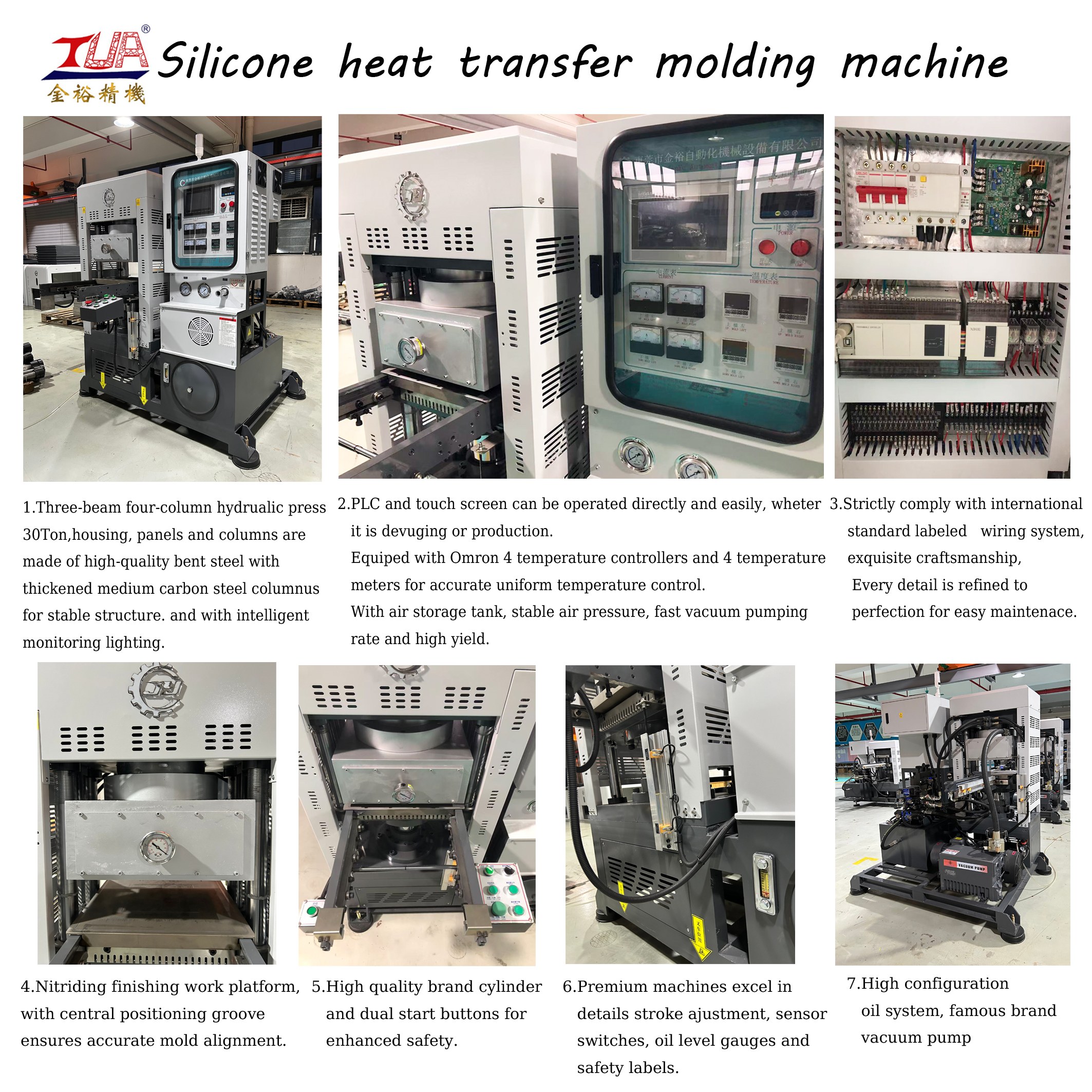

Robust Structure and High Precision
Features thickened four-column construction, precision guide posts, and finely machined platens; ensures accurate repetitive positioning and maintains structural integrity without deformation or misalignment over long-term use.
High Automation and Efficiency
PLC and touchscreen interface; integrates vacuuming, material placement, and vulcanization into a single molding process. Includes automatic mold sliding and optional cold pressing; reduces labor requirements and boosts production capacity by approximately 20%.
Safe, Energy-Efficient, and Easy to Maintain
Enclosed housing and safety light curtains; independent dual-pump control minimizes energy consumption; heating elements are easily replaceable, simplifying maintenance.
II. Finished Product Advantages
• Rich 3D tactile feel with crisp edges; offers a more premium look than flat labels.
• Precise multi-color registration; supports gradients, cut-outs, and embossed/debossed effects; patterns are durable and wash-resistant.
• Strong adhesion to fabrics; resistant to cracking and peeling; maintains excellent elasticity.
Application Scenarios

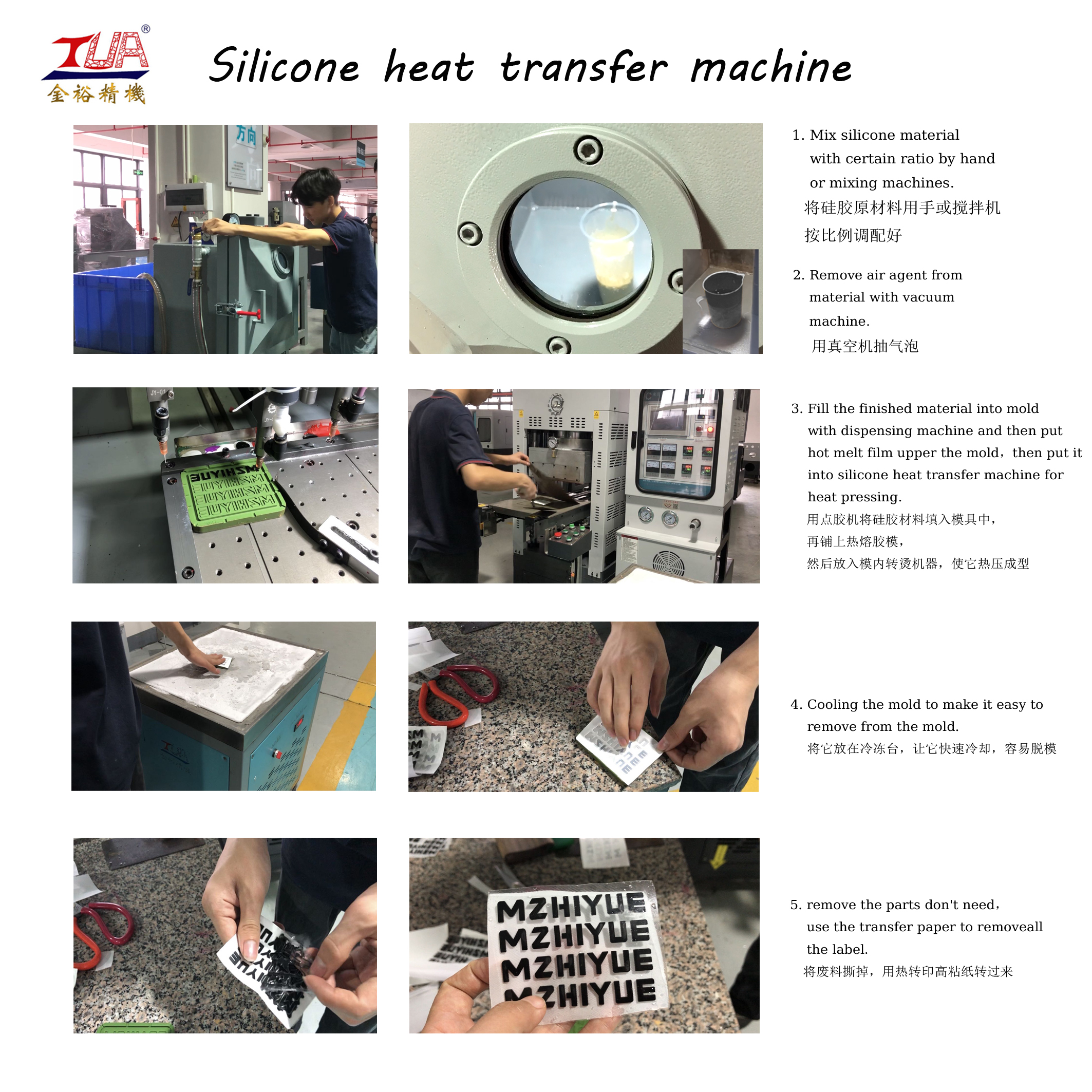

Suitable for 3D silicone labels, dimensional patches, multi-layer/multi-color labels, and soft silicone heat transfers for apparel, luggage, footwear, and headwear. Compatible with both liquid and solid silicone; can be integrated with dispensing machines, pre-heating stations, and cooling stations to form a complete production line.
The whole production line equipment including automtic dispensing machine, intelligent oven, silicone mixing machine, vucuum machine, cooling table, etc. (Silicone Heat Transfer Label Machine,Silicone Heat Transfer Moulding Machine,Silicone Making Machine )
