Multi‑Interface Automotive Diagnostic Harness for Multi‑Vehicle Testing
4 week ago
Product details
Multi Interface Automotive Diagnostic Wiring Harness
Multi-Port Design for Different Diagnostic Setups
The Multi Interface Automotive Diagnostic Wiring Harness is built for situations where one diagnostic connection is not enough. With a multi-port configuration, technicians can work with different compatible interfaces during vehicle testing without having to prepare a separate cable for every connection. It is a practical choice for repair shops and service teams that handle a variety of vehicles and diagnostic equipment.
| Item | Specification |
| Type | J1939 Truck Diagnostic Wiring Harness |
| Voltage | Low‑Voltage Signal; Insulation Test DC 500V / 10MS |
| Pins Material | Nickel‑Plated Brass Terminals |
| Plug Material | Green Cummins 9‑Pin Connector Housing, USB3.0 Type‑C 24P Connector |
| Working Temperature | ‑40℃ ~ +105℃ |
| Length | 2750±30mm |
| Minimum Insulation Resist | ≥10MΩ |
| Maximum Conduction Resist | ≤3Ω |
| Application Fields | Heavy‑duty truck diagnostic communication, commercial vehicle J1939 data reading, automotive industrial low‑voltage signal connection |
| Specific Shipping Cost | Please Contact Us |
This obd2 multi port diagnostic cable gives technicians more freedom when setting up their testing equipment. Instead of changing cables repeatedly, they can select the appropriate interface for the job and keep the diagnostic process moving. For workshops dealing with different vehicle systems every day, that small bit of flexibility can make the whole job easier.
A Practical Harness for Vehicle Fault Diagnosis

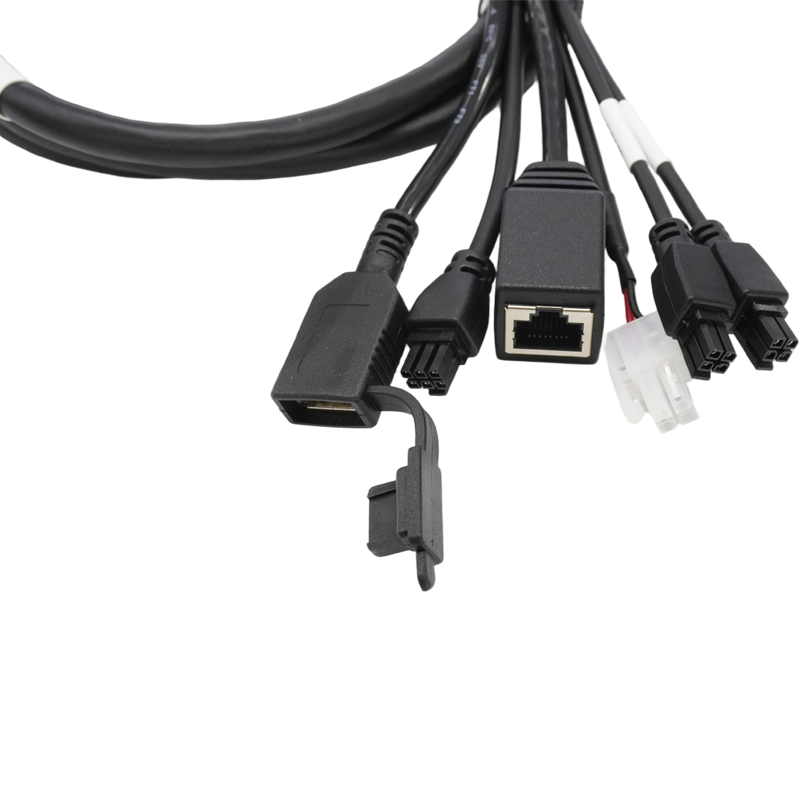

Finding a vehicle fault often means checking more than one electronic system. The vehicle fault diagnosis wiring harness is designed around this kind of working environment, providing a convenient connection option for compatible diagnostic tools. It can be used during routine inspections, troubleshooting, and other service work where technicians need access to vehicle data.

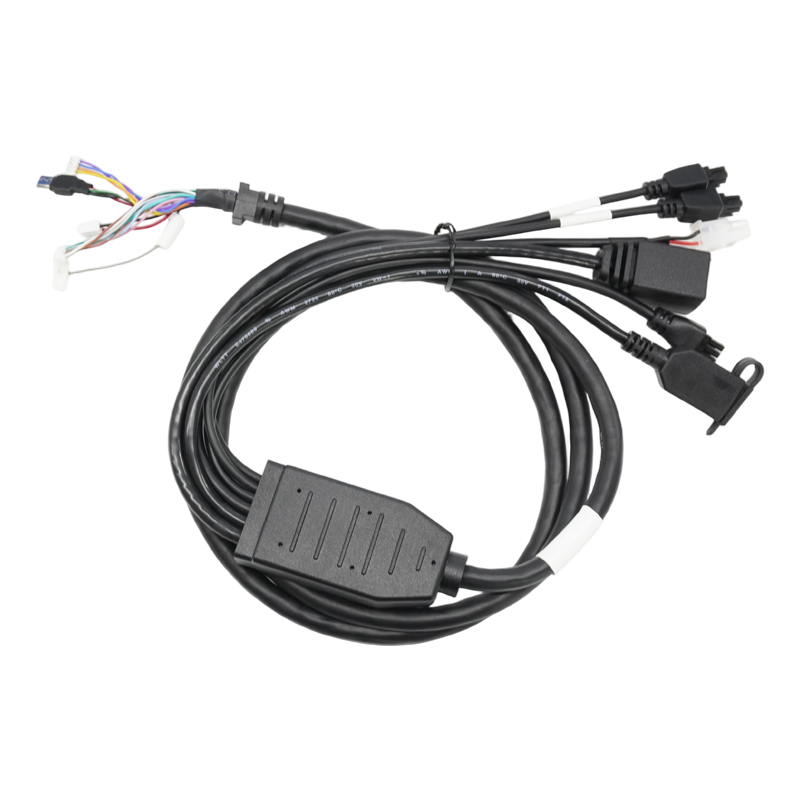

For businesses supplying diagnostic equipment, a flexible cable can also make product combinations easier to manage. FBXSlink develops OBD diagnostic cables and related wiring products for automotive applications, with attention to the connector arrangement and actual use of each cable. This multi port car diagnostic adapter cable can therefore be a useful addition to a workshop's diagnostic equipment range.
Flexible Connection for Automotive Service
Modern vehicles use more electronic control systems than ever, and technicians need dependable ways to connect testing equipment during service. This harness is intended for compatible multi-interface applications, giving service personnel a practical connection between the vehicle and their diagnostic equipment without making the setup unnecessarily complicated.
FBXSlink also produces automotive diagnostic cables, connector cables, and other wiring products for vehicle applications. Because the company works with customized cable requirements, customers can discuss different connector combinations, cable lengths, and wiring arrangements when a standard configuration does not fit their equipment.
Why Choose FBXSlink for This Multi Interface Diagnostic Harness?
FBXSlink has been manufacturing automotive and industrial wiring products since 2013, with its Shenzhen team supporting vehicle diagnostic and customized harness projects. For this Multi Interface Automotive Diagnostic Wiring Harness, the focus is on making multiple diagnostic connections more practical for workshops that work with different vehicles and testing equipment.
The company's production and R&D capabilities also allow customers to request specific connector layouts or harness configurations, making FBXSlink a suitable manufacturing partner when an automotive diagnostic adapter needs to be built around a particular application rather than taken directly from a one-size-fits-all design.
