220V Filter Output to Balance Board AC Cable with 24V C8 Power Cable
4 week ago
Product details
220V AC & 24V Figure 8 Power Ki
220V AC Power Connection
The 220V AC & 24V Figure 8 Power Kit is built for applications that need a 220V AC connection together with a separate 24V power connection. The two-part setup gives equipment builders a more practical way to arrange different power lines within the same system. For customers working on energy storage accessories, this kind of ready-to-use cable combination can make wiring preparation easier.
| Item | Specification |
| Type | Filter‑Balance Board AC Connection Harness / Dual‑Branch Power Wiring Harness |
| Rated Test Voltage | DC 300V 10MS Test Voltage, Working Voltage Customizable |
| Pins Material | Nickel Plated U‑type Terminals, VH3.96‑3P Crimp Terminals |
| Plug Material | PA66+GF VH3.96‑3P Connector Housing, IEC C7 Figure‑8 Power Plug |
| Working Temperature | ‑40℃ ~ +80℃ Or Customized |
| Length | AC Harness Branch 700±10mm, 24V Figure‑8 Cord 400±10mm, Customized Length Available |
| Minimum Insulation Resist | ≥10MΩ |
| Maximum Conduction Resist | ≤3Ω |
| Compliance | RoHS Compliant |
| Application Fields | Power filter output connection, balance board power supply connection, industrial power harness, AC‑DC power unit internal wiring, power supply module interconnection, industrial control cabinet wiring |
| Specific Shipping Cost | Please Contact Us |
The 220v filter balance board ac cable is designed around the AC side of the kit. It can be used where the equipment requires a 220V connection for its power system or related electrical components. Rather than preparing several unrelated cables, users can source the matching power connections as one kit and organize the wiring around the actual equipment layout.
24V Figure 8 Power Cord
The 24v figure 8 power cord handles the lower-voltage side of the kit. Its Figure 8 style makes the cable easy to identify when it is being installed alongside the 220V AC cable. This can be useful when different power connections need to be kept clear during assembly, maintenance, or equipment servicing.
For battery-related equipment, the cable can also be used as part of battery storage wiring accessories, depending on the customer's system and connection requirements. The exact use should always match the electrical design of the equipment. When cable length or the way the wires are arranged needs to be changed for a particular installation, those requirements can be discussed before production.

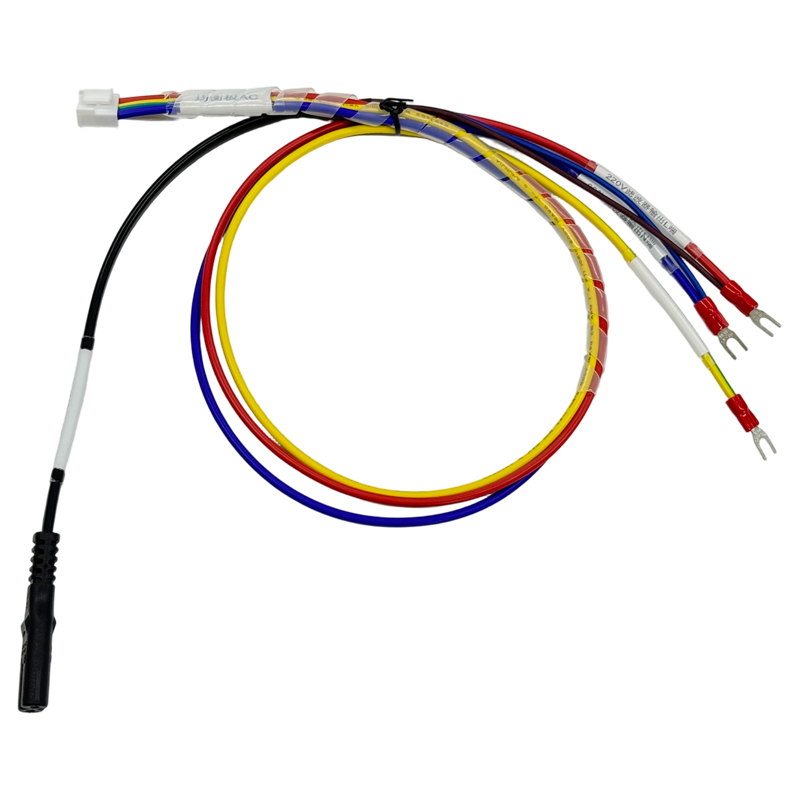

Dual-Power Cable Kit for Equipment Wiring
The main advantage of this product is that the AC and 24V cables are supplied together as a dual-power cable kit. Instead of sourcing the two connections separately, equipment manufacturers can work with one combined cable package for the intended application. This makes the kit a practical choice for projects where different power inputs or circuits need to be connected within the same piece of equipment.
In an electrical energy storage wiring harness, small cable assemblies often need to fit the actual layout rather than simply follow a fixed standard. FBXSlink can work with customers on cable length, connector requirements, and wiring arrangement for customized projects. The 220V AC & 24V Figure 8 Power Kit can therefore be considered as part of a broader energy storage harness when the system calls for this type of power connection.
Why Choose FBXSlink for This 220V AC & 24V Figure 8 Power Kit
For customers sourcing a 220V AC & 24V Figure 8 Power Kit, the company can discuss the actual equipment layout before production and help coordinate the cable configuration around the intended installation. This is particularly useful when the kit needs to become part of a larger energy storage battery harness or customized power wiring project. Instead of treating the product as a generic cable, FBXSlink focuses on the connection details that matter to the finished equipment.
