MX3.0 12P to 4P+6P+4P Multi‑Branch Wiring Harness
4 week ago
Product details

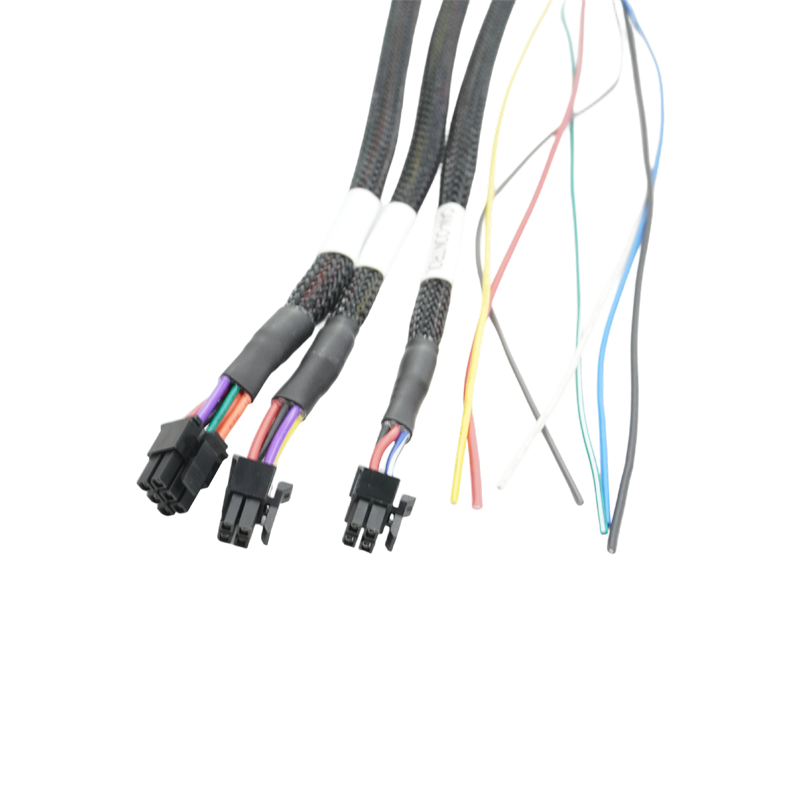

MX3.0 12P To 3 Way Harness

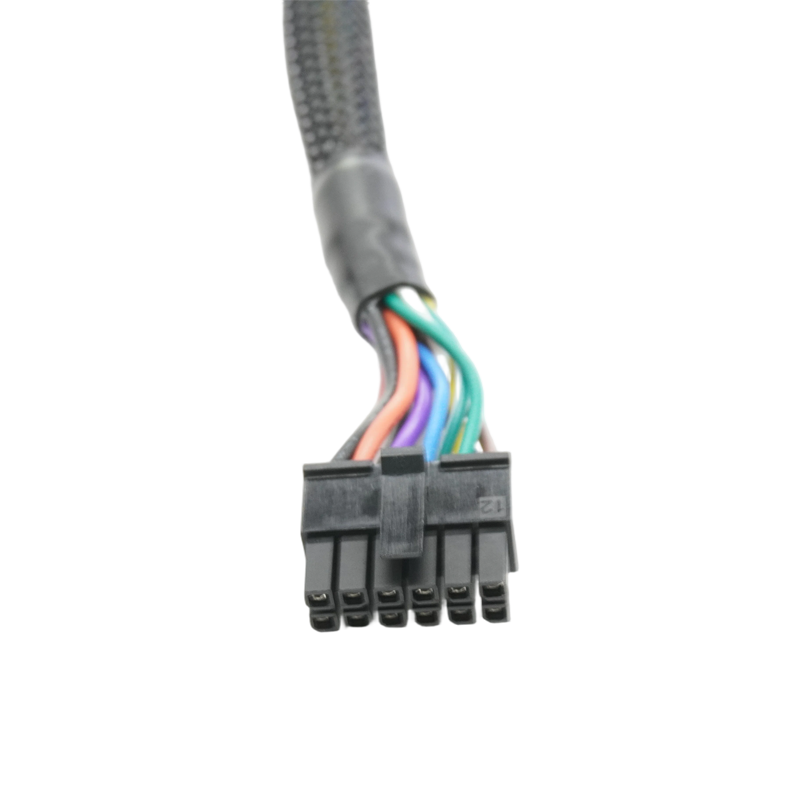

MX3.0 12P Main Connection
The MX3.0 12P To 3 Way Harness uses an MX3.0 12P connection as the main side of the harness, giving the wiring a clear starting point before it branches out to other connections. This setup is useful when several wires need to leave one main connection instead of running separate cables from the equipment. For projects with a fixed connection layout, a custom cable assembly can make the finished wiring easier to fit into the product.
| Item | Specification |
| Type | CAN Bus & RFID Reader Signal Wiring Harness |
| Voltage | Low‑Voltage Signal; Insulation Test DC 500V 10MS |
| Pins Material | Phosphor Bronze Terminals |
| Plug Material | MX3.0 Series Plastic Connector Housings |
| Working Temperature | ‑40℃ ~ +105℃ Or Customized |
| Length | 950±10mm / Customized Length Available |
| Minimum Insulation Resist | ≥10MΩ |
| Maximum Conduction Resist | ≤3Ω |
| Application Fields | CAN‑control communication, RFID reader and relay‑CAN signal transmission, automation equipment multi‑branch signal connection |
| Specific Shipping Cost | Please Contact Us |
The connector arrangement also keeps the harness more organized during assembly. Rather than having several loose cable runs coming from the same area, the wires are brought together through one main connection and then routed to their required positions. This is especially handy when the available installation space is limited and the wiring needs to follow a defined path.
3 Way Splitter Harness Design
The mx3.0 12p 3 way splitter harness is built around a three-way branch structure. One main side connects with the equipment, while the wiring separates into three branches for different connection points. This makes the harness suitable for equipment where multiple connections are located in different positions but still need to be supplied from one main wiring point.
The branch design can also save time during equipment assembly because the three connection routes are prepared as one harness rather than assembled separately on site. If a project calls for a different branch length or connection arrangement, FBXSlink can discuss the requirements as part of a custom cable assembly and wiring harness project instead of forcing the customer to adapt a standard cable to the equipment.
3.0mm Pitch Multi-Branch Wiring
The 3.0mm pitch multi branch wiring harness is suited to applications using this connector pitch and a multi-branch wiring layout. The 3.0mm spacing is part of the connector design, while the three branches give the harness a practical way to distribute connections within the equipment. The result is a wiring assembly that can be planned around the actual positions of the connected components.
The mx3.0 4p 6p 4p breakout cable description reflects another way this type of harness can be arranged, with different branch connections brought out from a common wiring structure. The exact connector combination should follow the customer's equipment requirements. For OEM projects, a custom wiring harness can be developed around the required cable lengths and connection points, helping the finished assembly fit the product more naturally.
Why Choose FBXSlink for This MX3.0 12P To 3 Way Harness
For customers ordering an MX3.0 12P To 3 Way Harness, the production team can work from the equipment's actual connection requirements rather than treating the harness as a one-size-fits-all item. Cable lengths, branch routing, connector combinations, and the overall harness arrangement can be discussed before production. This approach is also suitable when the harness needs to become part of a custom electrical wiring harness or another OEM wiring project.
