Automotive Subwoofer Enclosure Audio Wiring Harness
4 week ago
Product details

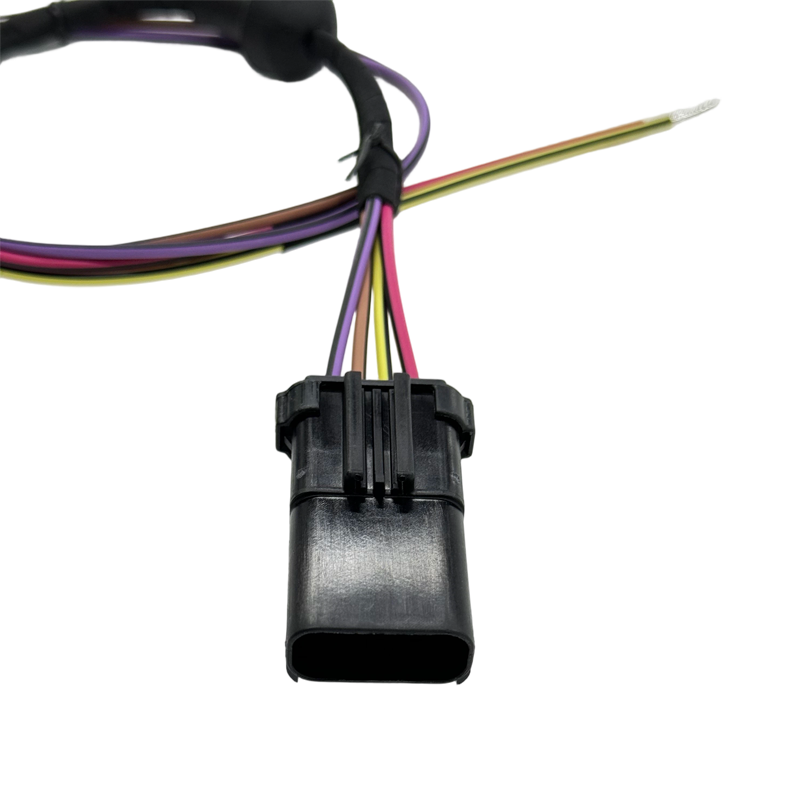

Subwoofer Enclosure Audio Harness
Wiring Inside a Subwoofer Enclosure
The Subwoofer Enclosure Audio Harness is made for the wiring inside a subwoofer box, where the internal connections need to be arranged neatly rather than left as a group of loose wires. A harness keeps the different connection points together and gives the installer a cleaner way to route the wiring around the enclosure. For projects that have their own internal layout, a custom wiring harness can be made around the required connection positions.
| Item | Specification |
| Type | Subwoofer Enclosure Audio Wiring Harness |
| Voltage | Low‑Voltage Audio; Insulation Test DC 800V / 10ms, AC 100V |
| Pins Material | Tin‑Plated Terminals, Tin‑Dipped 12±2mm |
| Plug Material | APTV Original Connector Housing; SR Boot in Kraton D3158/40A Black Rubber |
| Working Temperature | ‑40℃ ~ +125℃ |
| Length | 650±10mm |
| Minimum Insulation Resist | ≥10MΩ |
| Maximum Conduction Resist | ≤3Ω |
| Application Fields | Subwoofer enclosure audio wiring; automotive & industrial low‑voltage electrical connections |
| Specific Shipping Cost | Please Contact Us |
The subwoofer enclosure audio wiring harness is also useful when the wiring needs to stay in place during assembly. Instead of cutting and joining individual wires inside the box, the harness provides a prepared connection assembly that can be fitted as part of the enclosure build. Cable length and branch layout can be adjusted when the standard arrangement does not suit the customer's design.
Subwoofer Box Wiring for Car Audio
The subwoofer box wiring harness is intended for the internal wiring side of a subwoofer enclosure. It gives installers a straightforward way to connect the components inside the box while keeping the wiring route easier to manage. When the enclosure is being installed as part of a vehicle audio system, the internal harness can be planned separately from the external connection cables.

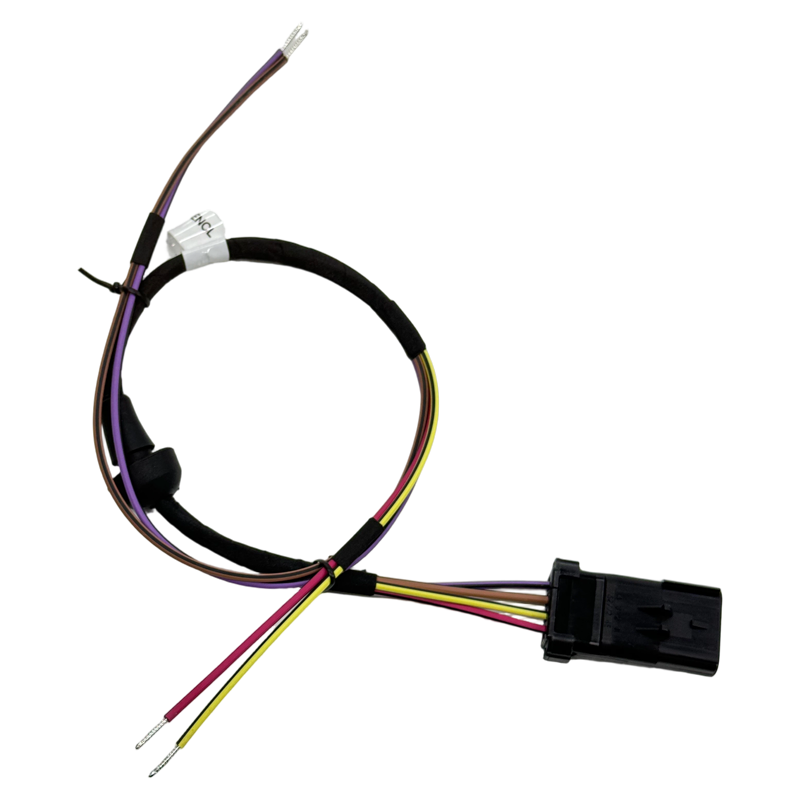

For manufacturers working on different vehicle audio products, this type of wiring can also become part of a custom cabinet harness or a larger wiring assembly. The exact cable arrangement depends on how the subwoofer enclosure is built and where the connection points are located. That makes it more useful to plan the harness together with the enclosure instead of trying to modify a standard cable afterward.
Automotive Subwoofer Internal Audio Harness
The automotive subwoofer internal audio harness is designed around the space inside the subwoofer enclosure. Internal wiring often has to follow the shape and available room of the box, so having the cable assembly prepared for the intended layout can make installation more straightforward. It also keeps the wiring grouped together instead of having separate loose leads running through the enclosure.
For OEM and aftermarket projects, FBXSlink can discuss the harness based on the customer's actual product design. Cable length, connection positions, and wiring layout can be considered before production. This makes the harness suitable for projects that require a custom electrical wiring harness, especially when the subwoofer assembly is being built into a specific vehicle audio product.
Why Choose FBXSlink for This Subwoofer Enclosure Audio Harness
For customers sourcing a Subwoofer Enclosure Audio Harness, the company can work from the enclosure design and connection requirements to discuss the finished harness before production. If the wiring needs to be supplied as part of a broader custom wire harness assembly, FBXSlink can also coordinate the cable arrangement around the customer's equipment and assembly process.
