M/D40SHT FKM Diaphragm For AUTEL Pulse Jet Valve

The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.

Options for your customization:
1. Diaphragm Material: TPE, NBR, EPDM, FKM
2. Seat Material: Nylon, Rubber, PTFE
3. Diaphragm Color: Black, White, Red, Green, etc
4. Diaphragm Size: We can make it as same as your drawing
5. Packaging: We can provide you custom plastic bag with low MOQ

Main Dimension of M/D40SHT Diaphragm:

AE40-V&P_03

Ordering Code of Diaphragm For Autel Pulse Valve:

Diaphragm Order Code	Diaphragm Reference No	Pulse Valve Model No	Pulse Valve Port Size	Diaphragm Material
AE18	M/D20	AE1818B, AE2818B AE1822B, AE2822B	3/4'', 1''	TPE (Standard) FKM+PTFE (High Temperature)
AE25	M/D25	AE1825B, AE2825B AE1825R, AE2825R	1''
AE40	M/D40	AE1440B, AE2440B AE1440R, AE2440R	1-1/2''
AE50	M/D50 M/D60	AE1450B, AE2450B AE1460B, AE2460B	2'', 2-1/2''
AE75	M/D75	AE1475I12, AE2475I12	3''

Pictures of Solenoid Valve Membrane Production:

Related Products:

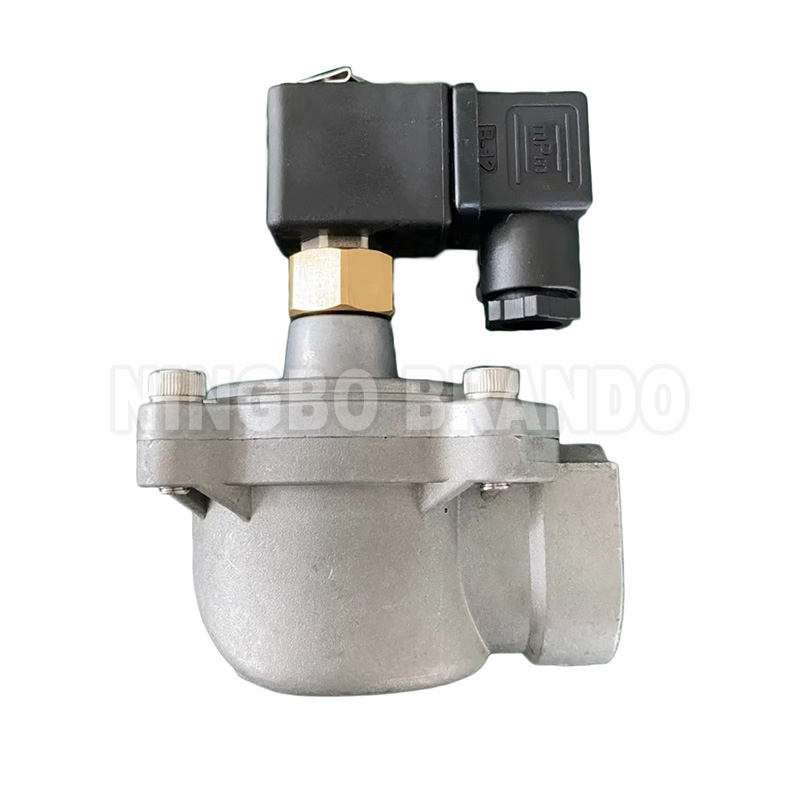

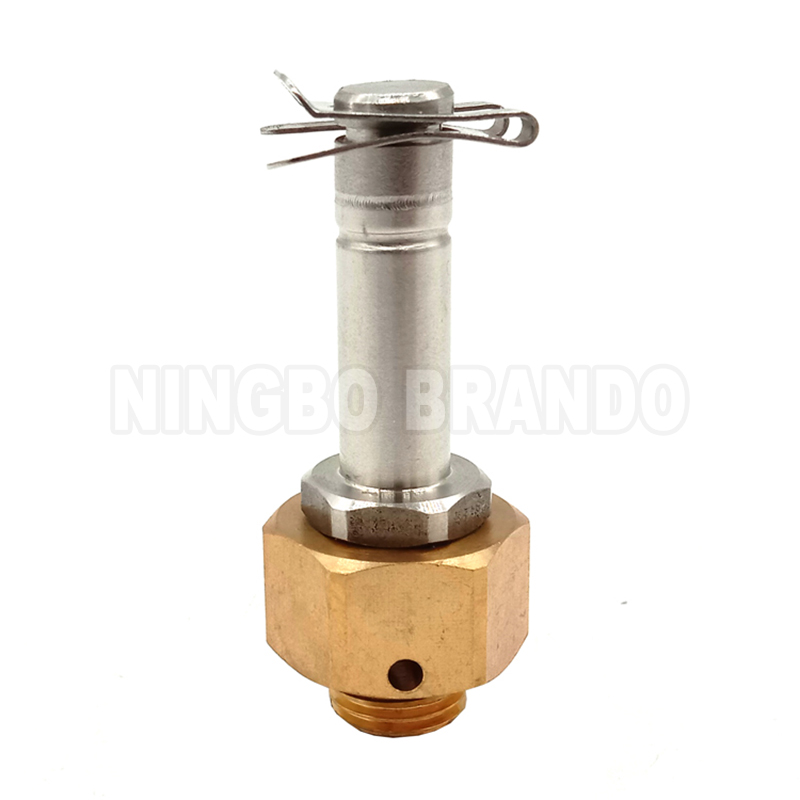

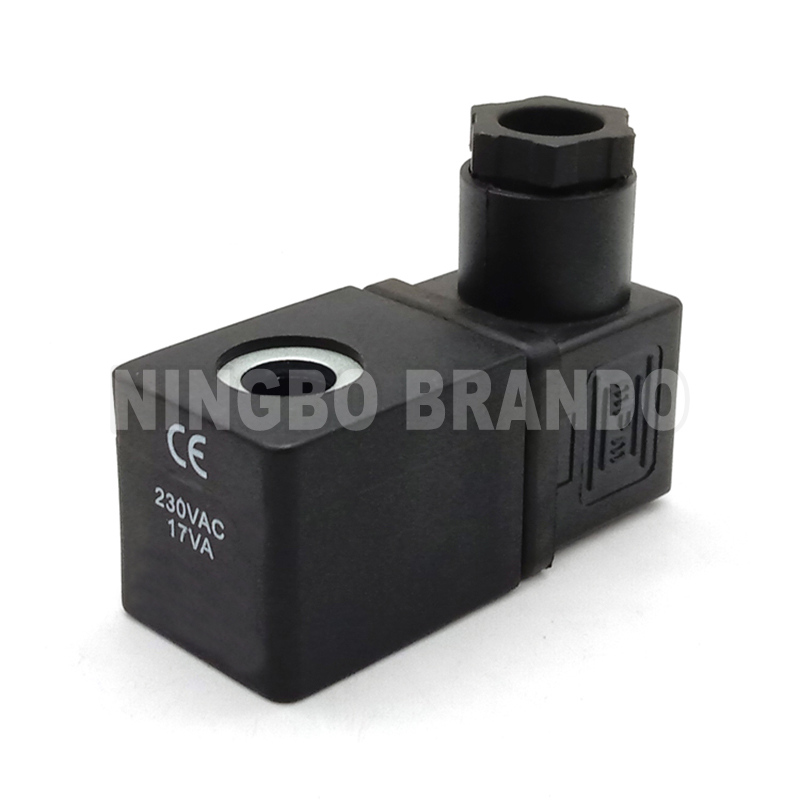

Pulse Jet Valve	Solenoid Coil	Solenoid Armature	Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
