Product Description

Our A200 Series is mature Miniature Waterproof Push Button Switches made in China, one core product of our Water-Proof Metal Flat Switch product lineup, rated IP67 waterproof with fixed 12mm mounting cutout, non-illuminated original design with dual housing options: metal or plastic shell. This is typical Waterproof Push Button Momentary Switch, featuring instant spring rebound after pressing to realize temporary circuit connection. Thanks to strict component screening and sealed internal structure, it runs steadily under complicated humidity & dusty surroundings, widely deployed for beauty devices, household appliances, medical instruments, small yachts, military communication equipment and intelligent network instruments. As direct Chinese manufacturer, we cut intermediate cost for global importers and support flexible bulk ordering & customized development.

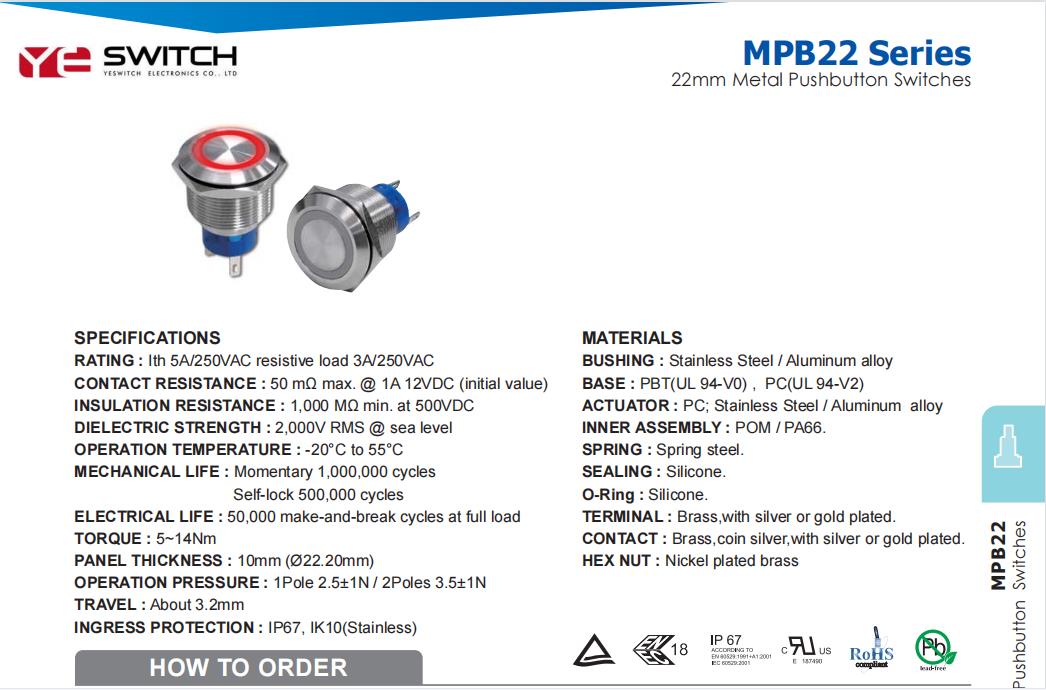

22MM High Current Metal Pushbutton Switches 26A/125VAC Anti Vandal Switch Momentary, LED Colors Selectable With or Without Lock

SPECIFICATIONS

RATING: Ith 5A/250VAC resistive load 3A/250VAC

CONTACT RESISTANCE: 50 mΩ max. @ 1A 12VDC (initial value)

INSULATION RESISTANCE: 1,000 MΩ min. at 500VDC

DIELECTRIC STRENGTH: 2,000V RMS @ sea level

OPERATION TEMPERATURE: -20°C to 55°C

MECHANICAL LIFE: Momentary 1,000,000 cycles; Self-lock 500,000 cycles

ELECTRICAL LIFE: 50,000 make-and-break cycles at full load

TORQUE: 5~14Nm

PANEL THICKNESS: 10mm (Ø22.20mm)

OPERATION PRESSURE: 1Pole 2.5±1N / 2Poles 3.5±1N

TRAVEL: About 3.2mm

INGRESS PROTECTION: IP67, IK10(Stainless)

MATERIALS

BUSHING: Stainless Steel / Aluminum alloy

BASE: PBT(UL94-V0), PC(UL94-V2)

ACTUATOR: PC; Stainless Steel / Aluminum alloy

INNER ASSEMBLY: POM / PA66

SPRING: Spring steel.

SEALING: Silicone.

O-Ring: Silicone.

TERMINAL: Brass,with silver or gold plated.

CONTACT: Brass,coin silver,with silver or gold plated.

HEX NUT: Nickel plated brass
