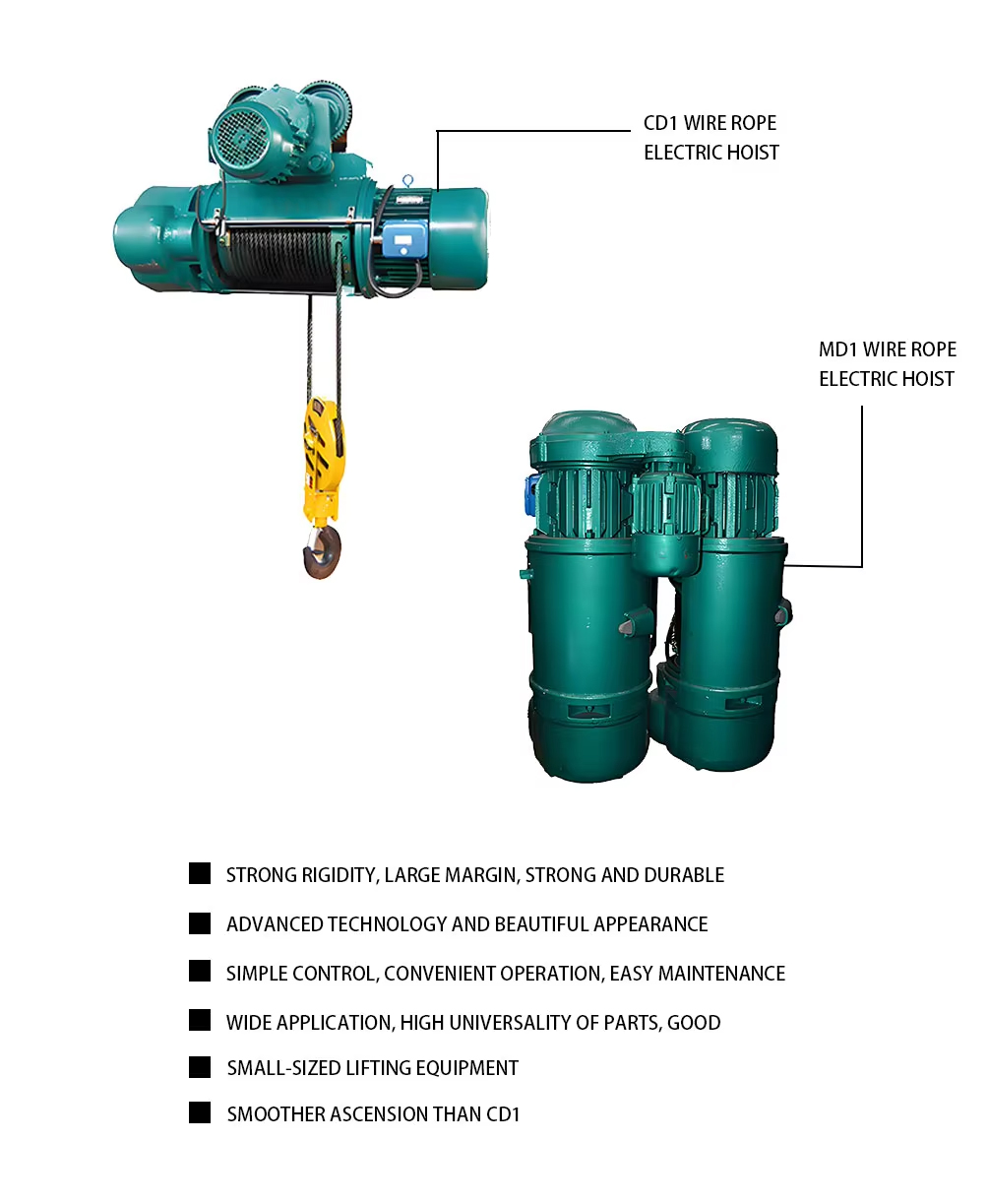

CD1 and MD1 Wire Rope Electric Hoist

Model CD1, MD1 Wire Rope Electric Hoist(Also called Electric Wire Rope Hoist ) is a small-sized lifting equipment, which can be mounted on single beam, bridge, gantry and jib cranes.

Model CD1 electric hoist has only one normal speed, which can satisfy normal application, Model MD1 electric hoist provides two speeds; normal speed and low speed.

The product applies to such an environment as no fire, no explosive danger, no corrosive media and no dirt exist, And the temperature is-20℃ -+40℃ , the wetness is no higher than 85%, the elevation is below 1000 m. lt is banned to lift melted metals, poisonous, combustible and explosive objects, The applicable power source is 3-phase alternating current (A.C for short), 50 Hz frequency and 380V voltage.(60 Hz、415V、440V、660V).

Their rated load must be reduced by 20% accordingly as their working grade increases by one grade compared to their M3~M4 working grade.

We can offers many different capacities, lifts, and options for electric wire rope hoists and european type hoist,chain hoist. Wire rope hoists offer the best option for lifting 5-tons or more. When selecting a wire rope hoist you need to determine the voltage (single phase or 3-phase), capacity, lift (length of cable), suspension (lug, geared trolley, motorized trolley), pendant length (length of push button controller), duty cycle, hoist speed, trolley speed, and beam size. Wire rope hoists also come in a stainless steel option for explosion proof hoist applications. Once you determine your wire rope hoist specifications, you can see which manufacturers meet your requirements.
