Product details

1/2" PVC Or Galvanized Hexagonal Wire Mesh for Chicken

1,Hexagonal wire mesh is also known by the name of chicken mesh or Bird Mesh. It is made of Galvanized Wire or PVC Wire. The diameter of the wire used according to the size of the hexagonal mesh. For Galvanized wire diameter is from 0.3 mm to 2.0 mm. PVC Coated range from 0.8 mm to 2.6 mm. Woven Twisted into hexagonal shapes, the lines on the outer frame edge can be made into unilateral, bilateral, and movable side threads.
Hexagonal wire mesh

2. Assortments:

1) Electro galvanized before weaving

2) Electro galvanized after weaving

3) Hot dipped galvanized before weaving

4) Hot dipped galvanized after weaving

5) PVC Coated hexagonal wire mesh

6) Galvanized redrawn Iron hexagonal mesh

7) Stainless steel hexagonal wire mesh

Hexagonal wire mesh

3. Applications:

1) Structural purposes , Heat insulation (ceilings, boilers..)

2) Pipe wrapping(petrolium) ,Isolation purposes ,

3) Indicator & protection for underground cables and pipes ,Windows Protection

4) Light fencing applications ,Fishing ,Poultry farms ,Sugar industry

5) Rubber industry , rockwool blanket industry.

6) Poultry & animal housing, Crop protection. Fruit cages, Garden Protection, Rabbit Control ,Stucco in

construction, reinforcement in road.

Hexagonal wire mesh

4. Features:

1) corrosion- resistant, rust-resistant.

2) oxidation –resistant, good tensile strength.

3) uniform mesh size, flat and even mesh surface, weave tightly.

4) galvanized /pvc coated for longer life, low costs

5) easy to handle and cut

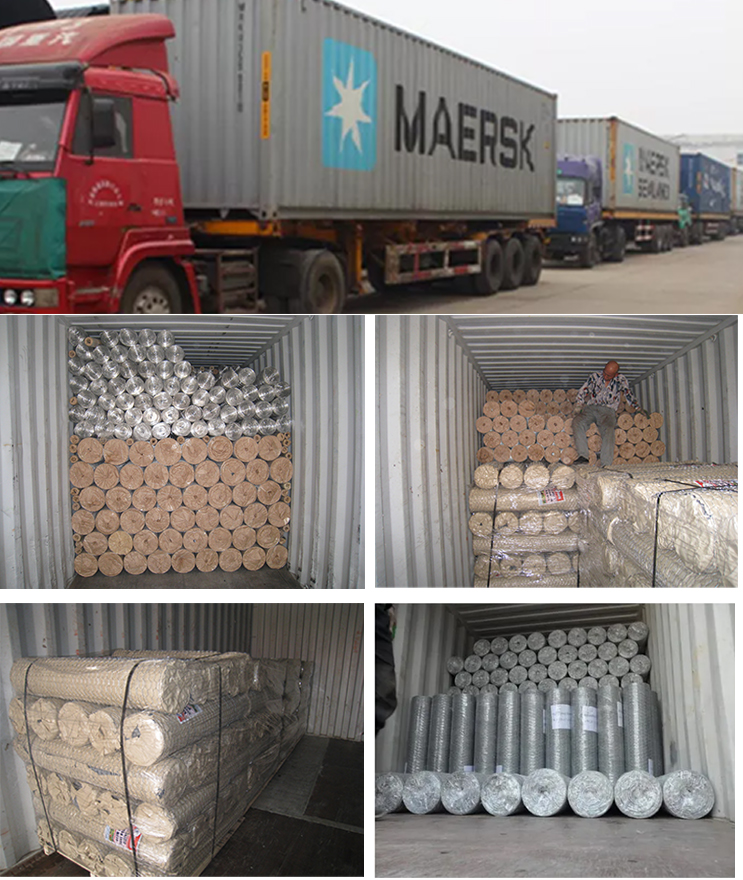

5. Packing:

1)shrink film+ label (customer’s logo is ok )

2) water-proof paper+ shrink film+ label

3) water-proof paper+ shrink film+label, then incardboard carton

4) water-proof paper+ shrink film+label, then in pallet.

We can pack as customers’ specific requirements.

Hexagonal Wire Mesh

Galvanized Hexagonal Wire Netting
Mesh			Min. Gal.v.G/SQ.M	Width	Wire Gauge (Diameter)BWG
Inch	mm	Tolerance(mm)	Min. Gal.v.G/SQ.M	Width	Wire Gauge (Diameter)BWG
3/8"	10mm	±1.0	0.7mm - 145	2' - 1M	27, 26, 25, 24, 23
1/2"	13mm	±1.5	0.7mm - 95	2' - 2M	25, 24, 23, 22, 21
5/8"	16mm	±2.0	0.7mm - 70	2' - 2M	27, 26, 25, 24, 23, 22
3/4"	20mm	±3.0	0.7mm - 55	2' - 2M	25, 24, 23, 22, 21, 20, 19
1"	25mm	±3.0	0.9mm - 55	1' - 2M	25, 24, 23, 22, 21, 20, 19, 18
1-1/4"	31mm	±4.0	0.9mm - 40	1' - 2M	23, 22, 21, 20, 19, 18
1-1/2"	40mm	±5.0	1.0mm - 45	1' - 2M	23, 22, 21, 20, 19, 18
2"	50mm	±6.0	1.2mm - 40	1' - 2M	23, 22, 21, 20, 19, 18
2-1/2"	65mm	±7.0	1.0mm - 30	1' - 2M	21, 20, 19, 18
3"	75mm	±8.0	1.4mm - 30	2' - 2M	20, 19, 18, 17
4"	100mm	±8.0	1.6mm - 30	2' - 2M	19, 18, 17, 16

1.) The above tolerance comply with standard EN10223-2:1997;

2.) Minimum Galvanization is only for typical wire diameter as stipulated separately in the column for your reference; Also it is only for hot dipped Galvanized Netting.

PVC Coated Hexagonal Wire Netting
Mesh		Wire Gauge (MM)	Width
Inch	MM	-	-
1/2"	13mm	0.6mm - 1.0mm	2' - 2M
3/4"	19mm	0.6mm - 1.0mm	2' - 2M
1"	25mm	0.7mm - 1.3mm	1' - 2M
1-1/4"	30mm	0.85mm - 1.3mm	1' - 2M
1-1/2"	40mm	0.85mm - 1.4mm	1' - 2M
2"	50mm	1.0mm - 1.4mm	1' - 2M
We also offer other specifications you need
