Soft tube printing machine

Soft Tube Full Automatic Screen Printing Machine

1. Machine Name & Model:

Name: Soft Tube CNC UV Curing Machine with 1 Varnishing + 4 Screen Printing

Model: SRS1666-1V4S

2. Design Principle:

Various printing functions are realized through digitally controlled servo motors. It is suitable for offset printing glossy or matte varnishes and silk screen printing UV inks of various colors on plastic soft tubes with a diameter of 13-60mm. It can be equipped with hot stamping and finished product inspection functions.

3. Application:

The machine is suitable for offset print 1 color varnish + screen print 4 colors UV ink on plastic soft tubes, can be used for printing facial cleanser, pharmaceutical soft tube.

4. Main Functions:

 Batch storage tubes, automatic material unscrambling, select the direction of feeding (optional).

 Servo-driven manipulator push tube feeding.

 16 servo stations: Feeding and dust-removal → 1 st flame (or corona) treatment → 2 nd flame (or corona) treatment → Offset printing varnish → UV curing → 1 st screen printing → UV curing → 2 nd screen printing → UV Curing → 3 rd screen printing → UV curing → 4 th screen printing → UV curing → Quality Inspection(optional) → Unqualified products discharge (optional) → OK products discharging

 After feeding, there is a cursor to identify the failure of feeding and the function of no printing without parts.

 The printing workstation has the function of electric lifting print head.

 The servo synchronously drives the left and right movement of the screen frame and the rotation of the tube on the turntable, and cooperates with the scraper to complete the printing function.

-  Unscrambling & feeding machine.

-  Plasma surface treatment function.

-  Varnishing function.

-  Hot stamping function.

-  LED-UV curing function.

-  Finished product quality inspection function.

6. Technical Parameters:

 Machine Speed: 0-70pcs/min (depends on the specific tubes)

 Tube Diameter: 16-75mm

 Tube Height: 50-220mm

 Max Printing Area: L220 X H180mm

 Printing Accuracy: ±0.1mm (exclude printing problem caused by tube size errors )

 Liquefaction Supply: 0.15Mpa

 Air Pressure : 6-7 bar

 Power Supply: 3-phase 5-wire 380v 50/60HZ

 Rated power : 40KW

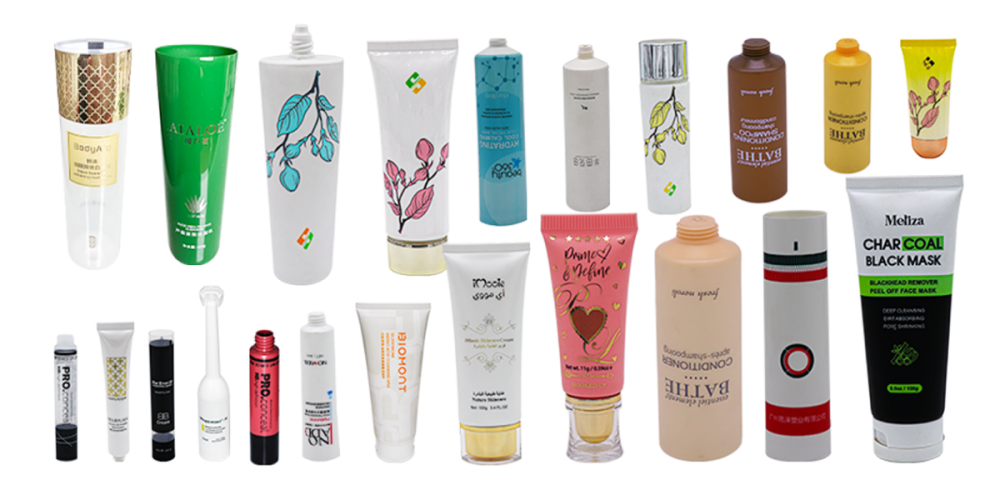

Senny provides a variety of models, using automatic printing technologies such as varnishing, screen printing, and hot stamping, to print exquisite graphics and texts in various colors on plastic soft tubes.

In order to meet the needs of users for high-quality image decoration, we can provide flexo printing, digital printing, and CNC tube printing machines combined with automatic printing technologies such as silk screen printing, hot stamping and varnishing.
