HQJ-1100D Cutting Machine With two/four roll
3 year ago
HQJ-1100D Cutting Machine With Two/Four Roll

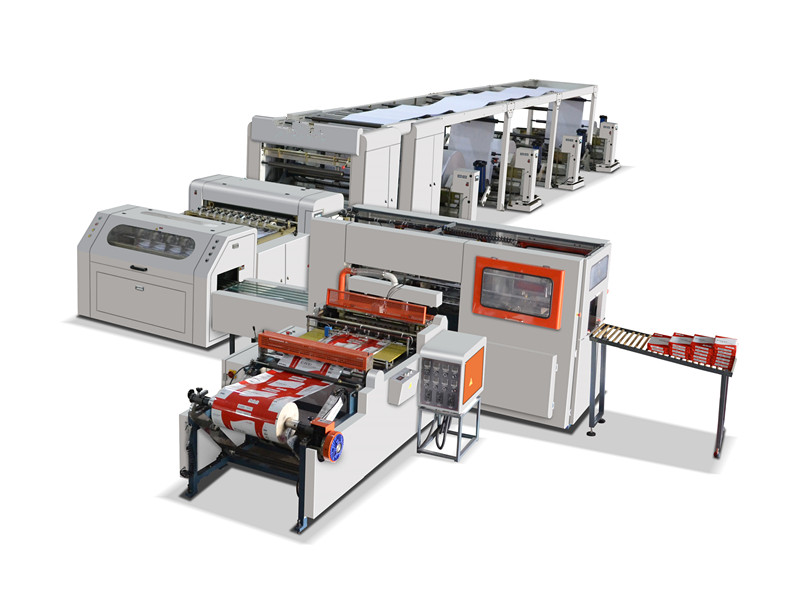

Picture is four reels
1、Suitable for ：
This machine suitable for a lot of paper, A4/A3 paper&film laminated etc best jumbo roll cutting machine.
2、Main Technical Parameters:
Model
HQJ-1100
Cutting part
Max.Diameter of Unwinding
φ1400mm
Max. Cutting Width
1100mm
Cutting Length
A4/A3(297*210mm,297*420mm)
Cutting Speed
50-150times/min
Paper GSM
60-120g
Cutting Precision
±0.2mm
Ream Height(mm)
500pcs
Total Power
15kw
Machine Weight
6200kg
Compressed air(Mpa)
Customer's own responsibility
Main power source
380V/50HZ,3phase 4 wires
Machine Size(L*W*H)
11000×3200×2200（mm）
Package part
Speed
6-8 ream/min
Cutting ppeed of wrapping paper
6-8 pieces/min
Size of wrapped object
210×297×50mm
Size of wrapping paper
550-560mm×386mm
Power
380V 3 phase 4 wire
Motor Power
5.1kw
Rubber roller power
2.25kw
Compressed Aire
0.6-0.8 mpa
Overall Dimension
4530×3050×1450mm
Weight
2.5T
3、Machine configuration
Unwinding Unit：
1.Control way：through PLC tape control way(Panasonic Japan)
2.Unwinding use 3#air shaft (shaftness 3-6# can be choosed)（two sets）
3.Driver roller use aluminum roller, through static balanced aluminum alloy guide roller
4.Base material position can be adjust.
5.Automatic air shaft (shaftness can be customized)loading equipment structure system
6.Unwinding use photocell control edge position control system（two sets）
6、Belt conveyor
1、Automatic conveying device: three-stage conveying mode；
2、Conveyor motor adopts 0.75KW frequency conversion synchronous control；
3、Automatic pneumatic control of baffle.
