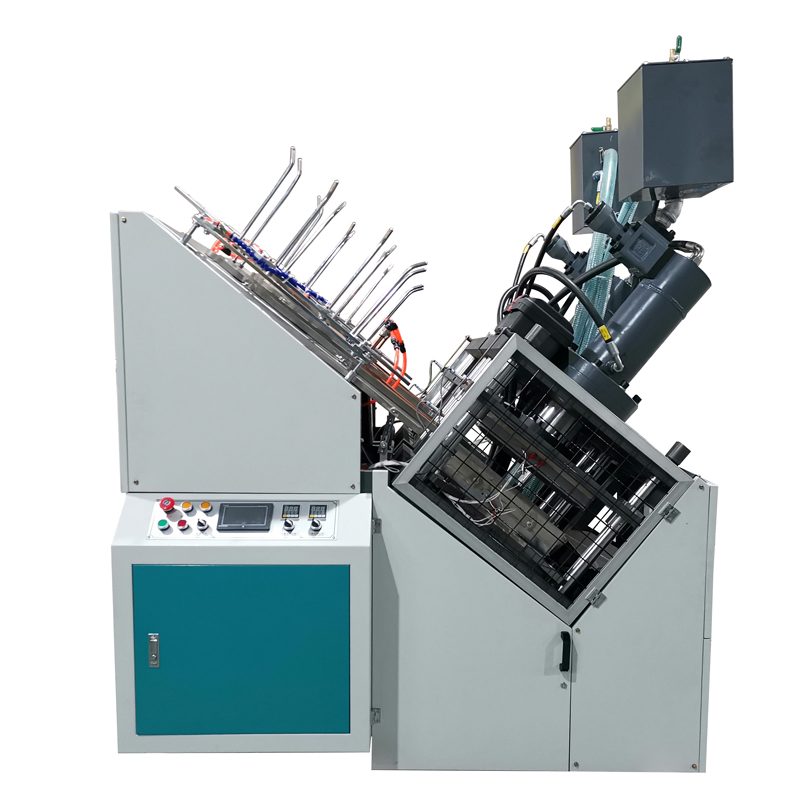

600P paper plate making machine
2 year ago
Model
600P Paper Plate Forming Machine
Suitable material
1000gsm white card board, PE coated paper, Kraft paper
Production speed
20-45pcs/min
Blank paper size
Max Φ19inch
Total power
15KW
Total weight
1100KGS / 1000KGS
Overall dimension
L 2100*W 1710*H 2150 mm
Power source
380V/220V, 50HZ

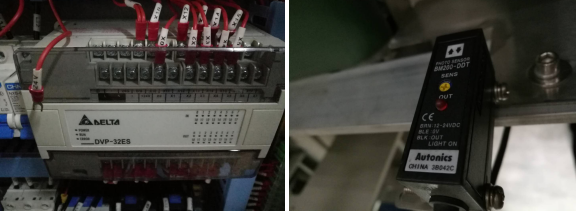

MAIN ELECTRICAL PARTS LIST : （BRAND）
1) Hydraulic press
Faster Hydraulic press (custom designed)
2) Programmable controller
Delta, Taiwan
3) Photoelectrical switch
Autonics, Korea/Omron, Japan
4) Temperature controller
Gaoqi, Jiangsu
5) Switching power supply
Meanwell, Taiwan
6) A.C contactor
Chint
7) Air switch
Chint
8) Reply
Chint
Technical specifications:

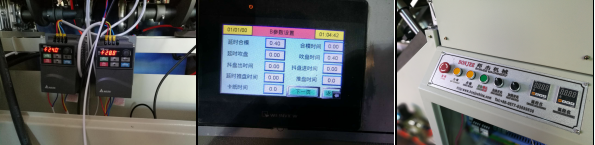

Main electrical parts
Machine brief details
1). It is an ideal equipment to produce paper plate such as big size and thick paper board, main market in middle east.
2). With firm structure, high quality, low noise and high efficiency.
3). It has paper feeding unit, molding unit, finished products and also counting unit.
Main differences and advantages:
1). R&D with very experienced engineers and designer, we never stop, keep improving and perfecting on machines.

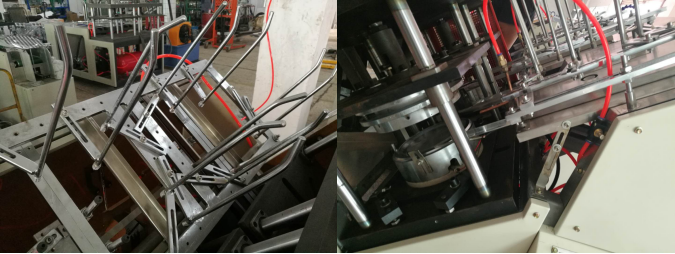

2). Feeding system: 45 degree which can drop directly to lower mold, it works more steady and service for a longer time.

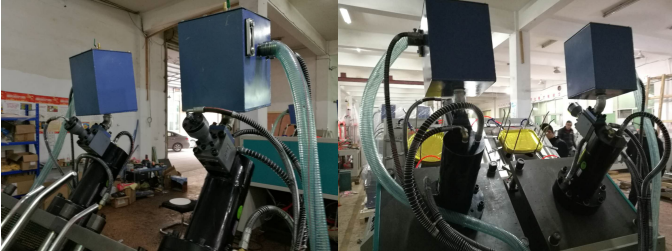

3). Pressure unit: 10-25 tons Hydraulics pressure can meet with round and square heavy thickness paper plate forming.
4). Electrical parts, PLC, Convertor, photoelectrical sensor, etc

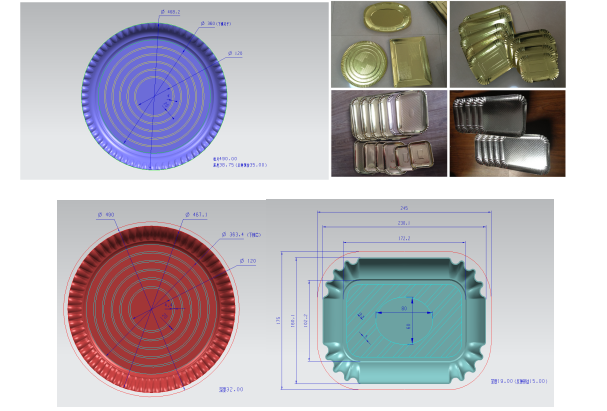

Available paper plate can be made by our 600P plate forming machine
