PU225A-04 1/2'' 2 Way Normally Closed Brass Solenoid Valve 24V 110V 220V
2 year ago
PU225A-04 1/2'' Shako Type 2/2 Way Solenoid Valve PU225A Series
Product Description:
Shako Type Brass Solenoid Valve:
PU225A Series: PU225A-03, PU225A-04, PU225A-06, PU225A-08, PU225A-12, PU225A-14, PU225A-20, PU225A-24, PU225A-28.
Product Features:
1. Port thread 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2" BSP/NPT or Flange (F) JIS10K,( 68269867, 68269806, 59607970,F3) ANSI150Lb,( 68269868, 68269807, 59607971,F4) PN16.
2. Sealing NBR, EPDM or Viton.
3. 0.5 to 10 bar differential, 15 bar maximum working.
4. PU225A 2/2 normally closed, PU225AN 2/2 normally open.
5. Pilot acting for low starting pressure
6. Large flow rate and high working pressure.
7. Quick response.
8. Stainless steel stem provides exceptional durability.
9. Most voltages available from 12v, 24volt, 48volt, 110volt, 230volt and 380 volt AC or DC, optional ATEX coil.
10. Suitable media NBR - air, water, neutral gases and mineral oils - Viton fuel oil, gasoline, hi-test gasoline and diesel fuels - EPDM hot water and liquid detergents.
Technical Data of PU225A Series Solenoid Valve:
|
Model
|
PU225A-03
|
PU225A-04
|
PU225A-06
|
PU225A-08
|
PU225A-12
|
PU225A-14
|
PU225A-20
|
|
PU225AN-03
|
PU225AN-04
|
PU225AN-06
|
PU225AN-08
|
PU225AN-12
|
PU225AN-14
|
PU225AN-20
|
|
|
Orifice Size
|
13mm
|
25mm
|
38mm
|
50mm
|
|||
|
Port Size
|
3/8''
|
1/2''
|
3/4''
|
1'
|
1 1/4''
|
1 1/4''
|
2''
|
|
Medium
|
Water, Light Oil, Compressed Air
|
||||||
|
Action
|
Diaphragm Pilot Operated
|
||||||
|
NC/NO
|
2 Way, Normally Closed, Normally Open
|
||||||
|
Body Material
|
Brass
|
||||||
|
Seal Material
|
NBR (Standard); EPDM, FKM, Si (Optional)
|
||||||
|
Pressure
Range
|
0.05 to 1 MPa
|
||||||
|
Temperature Range
|
-5 to +80℃ (NBR), -5 to +150℃ (EPDM, FKM)
|
||||||
|
Voltages
|
24VDC, 110VAC, 220VAC, other voltage is optional
|
||||||

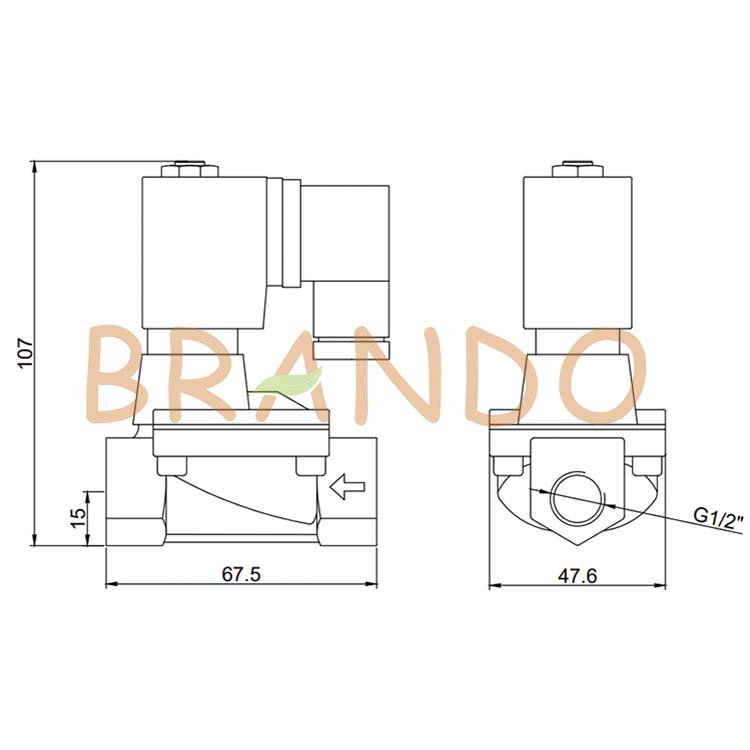

Main Dimension:
More Details:
More Solenoid Valves for you to choose:
 |
 |
| PU220A Series | PU225A Series |
 |
 |
| SPU225A Series | PU225S Series |
