Shanding mini excavator for sale uk
We are looking for agents and partners
The SD12D mini excavator is the earliest product developed by Shanding This small excavator is the one with the most stable performance and the strongest digging power among the 1-ton small excavators;
Suitable for small projects in your own garden nursery.
1 ton hilltop small excavator SD12D information
1. Overall Width：925mm 5. Boom Length：1490mm
2. Overall Length：2770mm 6. Track Length：1210mm
3. Max. Digging Height：2650mm 7. Max Dumping Height：1750mm
4. Max Digging Depth：1650mm 8. Max. Digging Radius：2950mm
This SD12D mini excavator weighs about 10 0 0 kg
relatively small and flexible
Using the Koop 192F,Engine power 8.6 KW
bucket capacity 0.025 m Ø

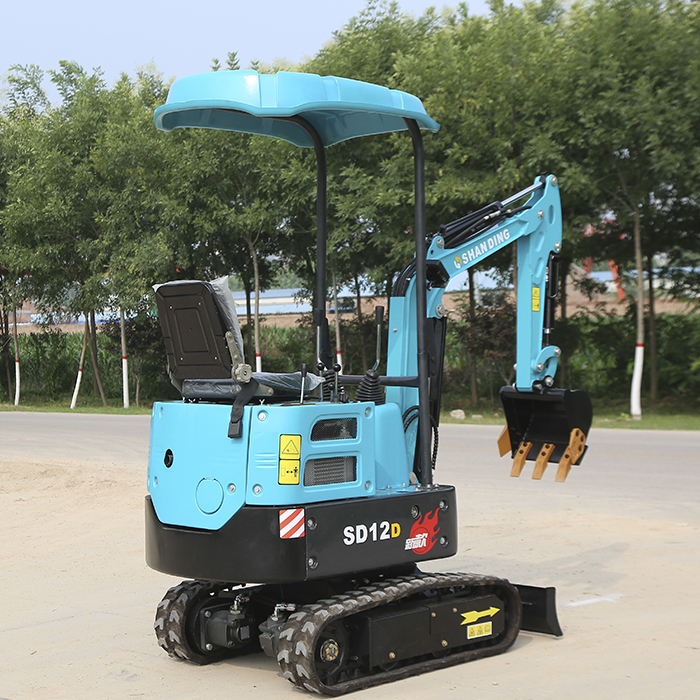

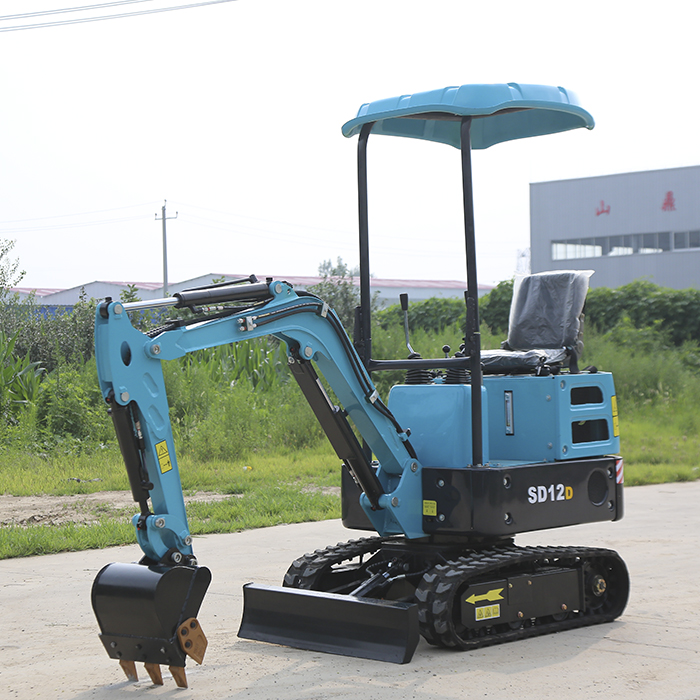

1Ton shanding mini excavator SD12D photos
The SD12D mini excavator is the earliest product developed by Shanding This small excavator is the one with the most stable performance and the strongest digging power among the 1-ton small excavators;
|
Machine parameters |
|
|
Model |
SD12D |
|
Operating Weight |
1000Kg |
|
Bucket Capacity |
0.028m³ |
|
Rated Power |
8.6 kw |
|
Max.Hydraulic System Pressure |
16mpa |
|
Max. Grade ability |
30° |
|
Max. Ground Pressure |
18.9N/m² |
|
Max Walking Speed |
2.1Km/h |
|
Max. Traction |
9.2KN |
|
Platform Rotary Speed |
9-11r/min |
|
Dimensions |
|
|
Overall Length |
2770mm |
|
Overall Width |
925mm |
|
Overall Height |
1550mm/2100(Chair/Roof) |
|
Arm Length |
800mm |
|
Boom Length |
1490mm |
|
Track Length |
1210mm |
|
Track Width |
180mm |
|
Ground Clearance |
240mm |
|
Platform Width |
920mm |
|
Platform Ground Clearance |
420mm |
|
Bucket Width |
370mm |
|
Working range |
|
|
Max. Digging Height |
2650mm |
|
Max Digging Depth |
1650mm |
|
Max. Digging Radius |
2950mm |
|
Max Dumping Height |
1750mm |
|
Min. Radius of Gyration |
1150mm |
|
Radius of Tail Gyration |
680mm |
|
Max. Sinking Depth of Bulldozer |
230mm |
|
Max. Lifting Depth of Bulldozer |
210mm |
|
Machine configure |
|
|
Engine Model |
KOOP 192F |
|
Main valve |
TIANJI |
|
Main Pump |
Shimadzu |
|
Rotation Motor |
SANYO |
|
Walking Motor |
SANYO |
