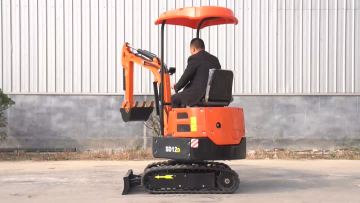

SD12D operation new video (part one)
4 year ago
Shanding Mini Excavator
1-21ton

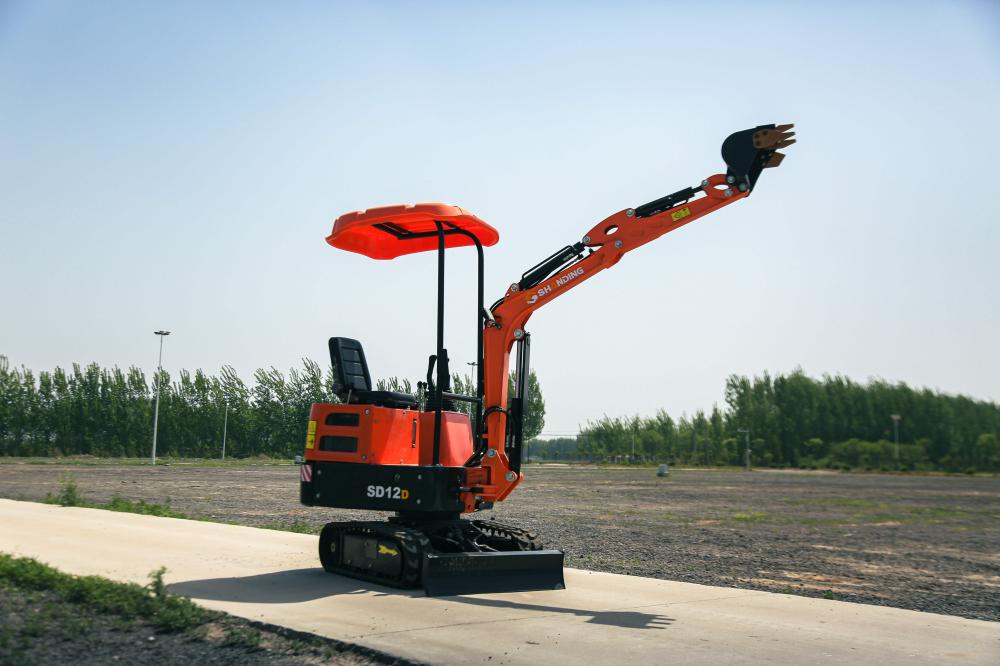

SD12D:1.Mini size can work in a narrow space
2.Install hydraulic oil radiator respirator,powerful cooling fan.
3.Enhance frame(chassis and platform)
4.Solid cast iron counterweight higher stability
5.Add the cylinder guard plate and bottom protection device,the pipeline hidden design ,to prevent the parts of the scratch damage.
6.Reinforced rubber tracks are durable
Machine parameters
Model
SD12D
Operating Weight
1000Kg
Bucket Capacity
0.028m³
Rated Power
8.6 kw
Max.Hydraulic System Pressure
16mpa
Max. Grade ability
30°
Max. Ground Pressure
18.9N/m²
Max Walking Speed
2.1Km/h
Max. Traction
9.2KN
Platform Rotary Speed
9-11r/min
Dimensions
Overall Length
2770mm
Overall Width
925mm
Overall Height
1550mm/2100(Chair/Roof)
Arm Length
800mm
Boom Length
1490mm
Track Length
1210mm
Track Width
180mm
Ground Clearance
240mm
Platform Width
920mm
Platform Ground Clearance
420mm
Bucket Width
370mm
Working range
Max. Digging Height
2650mm
Max Digging Depth
1650mm
Max. Digging Radius
2950mm
Max Dumping Height
1750mm
Min. Radius of Gyration
1150mm
Radius of Tail Gyration
680mm
Max. Sinking Depth of Bulldozer
230mm
Max. Lifting Depth of Bulldozer
210mm
Machine configure
Engine Model
KOOP 192F
Main valve
TIANJI
Main Pump
Shimadzu
Rotation Motor
SANYO
Walking Motor
SANYO
