DDS1946-1P single phase power meter din rail
13 month ago

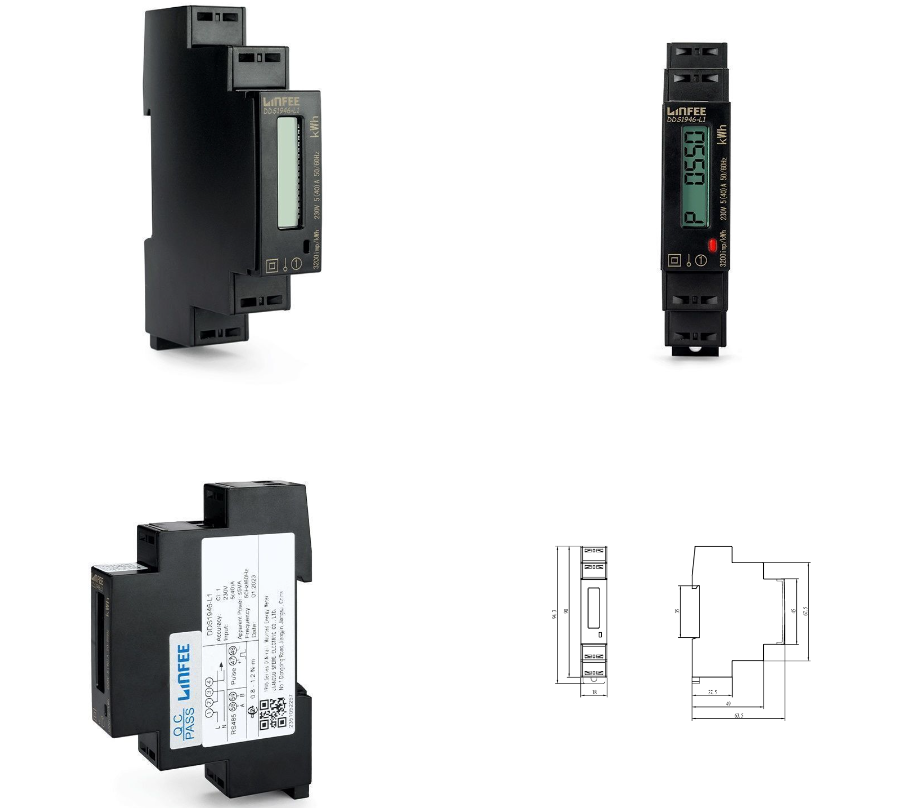

Product Name: Single Phase 220V DIN Rail Energy Meter Application 220V Voltage 5(40) A Current
The Single Phase 220V DIN Rail Energy Meter is a cutting-edge device designed for measuring energy consumption in single-phase electrical systems. The device offers accurate measurements of voltage and current, making it ideal for monitoring power usage in residential and commercial settings.
The energy meter is designed to operate on a single-phase 220V AC voltage and can measure current up to 5(40) A. It allows for easy installation on a DIN rail, making it a convenient option for compact installations.
| Project | DDS1946-L1 | DDSF1946-L1 | DSS1946-L | DSSF1946-L | DTS1946-L | DTSF1946-L | DDS1946-L | DDSF1946-L |
| Active Energy Accuracy | 1s | 0.5s | ||||||
| Rated voltage | 220V | 3*380V | 3*220/380V | 220V | ||||
| Input current(direct access) | 5(40)A | 5(100)A | ||||||
| Input Current(Access via CT) | - | 1.5(6)A | ||||||
| Frequency | 50/60Hz | |||||||
| Wiring | Single phase | Three-phase three-wire | Three-phase four-wire | Single phase | ||||
| Working voltage range | 0.8Un~1.2Un | |||||||
| Power consumption | <5VA | |||||||
| Energy pulse | Optocoupler isolation, pulse width (80±20%) ms | |||||||
| Clock error | ≤0.5s/d | |||||||
| RS485 Communication Interface | Modbus-RTU or DL/T645,Baud rate up to 9600bps | |||||||
| IP protection | IP51(panel)/IP20(shell) | |||||||
| Operating temperature | '-10ºC~55ºC | |||||||
| Storage temperature | '-25ºC~70ºC | |||||||
| Relative temperature | ≤93%RH | |||||||
■ Smart equipment
■ Intelligent building
■ Public facility
■ Industrial and mining enter enterprise
■ Panel Factory
Elecnova Electric is committed to power monitoring, power quality improvement, electric safety products, and industrial automation products development since 1998. Our popular products are very diverse, such as: Multifunctional Power Meter, Active Harmonic Filter, Motor Controller and Power Management System, etc.
Our distribution network is spread to the major economy districts globally. Elecnova Electric and its distributors are delicate to provide high-quality power management solutions and in-time technical support to the local customers.
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
