6213 A 1'' 2 Way Normally Closed Brass Solenoid Valve 12V 24V 110V 220V

3 year ago

23 0 

12 year

Product details

Burkert Type 6213 Servo-assisted 2/2-way Brass Solenoid Valve

Product Features:

1. Working Medium: Water, Air, Gas, Liquid, Oil, etc
2. Working Pressure Range: 0.3 to 10 bar (10mm to 25mm orifice), 0.7 to 16 bar (40mm to 50mm orifice)
3. Medium Temperature Range: NBR (-5 to +80ºC), EPDM (-5 to +120ºC), FKM (-10 to +150ºC)
4. Port Size: 1/4'', 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
5. Orifice Size: 10mm, 13mm, 20mm, 25mm, 40mm, 50mm
6. Body Material: Brass
7. Diaphragm Material: NBR, EPDM, FKM
8. Operation: Diaphragm Pilot Operated
9. Function: 2 Way Normally Closed
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Technical Data:

Model	Port Size	Orifice Size	Kv	Working Pressure	Body	Diaphragm	Function	Voltage
6213	1/4''	10mm	1.3	0.3 to 10 bar	Brass	NBR EPDM FKM	2 Way NC	12VDC 24VDC 24VAC 110VAC 220VAC
	3/8''	10mm	1.9	0.3 to 10 bar
	1/2''	10mm	1.9	0.3 to 10 bar
	1/2''	13mm	3.6	0.3 to 10 bar
	3/4''	20mm	8.3	0.3 to 10 bar
	1''	25mm	11	0.3 to 10 bar
	1 1/4''	40mm	25	0.7 to 16 bar
	1 1/2''	40mm	30	0.7 to 16 bar
	2''	50mm	45	0.7 to 16 bar

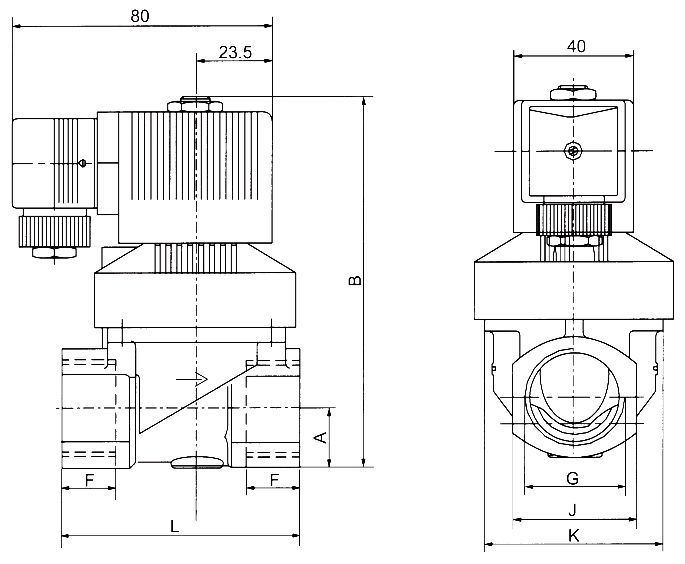

Overall dimension of 6213 Solenoid Valve:

Burkert Type 6213 Diaphragm Operated Brass Solenoid Valve 2 Way NC 220V AC 24V DC 0

Model	G	C	F	L	J	A	B	H	K
6213-15	1/2''	45	16	52	27	82	96	40	80
6213-20	3/4''	45	16	63	31	82	96	40	80
6213-25	1''	65	18	82	41	96	117	40	90
6213-32	1 1/4''	96	20	132	58	112	145	40	132
6213-40	1 1/2''	96	20	132	58	112	145	40	132
6213-50	2''	111	22	160	70	125	166	40	160

Our Production:

Solenoid Valve Production

More Brass Solenoid Valve for you to choose:

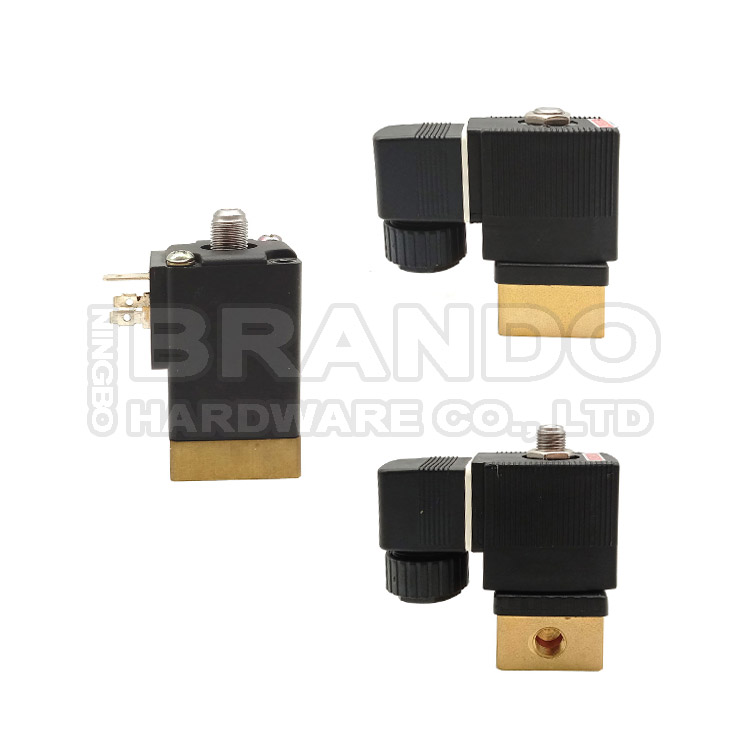

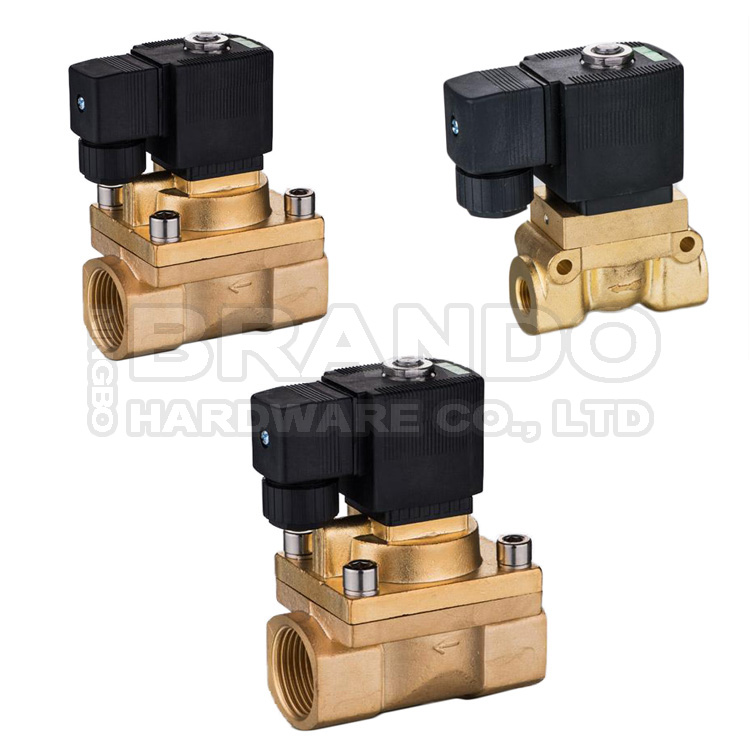

5404 solenoid valve burkert solenoid valve 6012 6013 6014 6011 6212 pu220 brass water solenoid valve

adk11 ckd brass solenoid valve water 2L US steam solenoid valve ud 2w uw Uni-d brass water solenoid valve

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
