3t Wheel Loader From China with Factory Price
2 year ago
|
Description |
Specification |
|
Rated load(kg) |
3000 |
|
standard bucket capacity（m³） |
1.7 |
|
operating weight（kg) |
9600 |
|
Max.breakout force（kN） |
110 |
|
Max.dump height（MM） |
3150 |
|
Max.dump reach（MM） |
1150 |
|
Discharging Angle（°） |
45 |
|
Max.grade ability（°） |
30 |
|
Automatic leveling ability |
Yes |
|
Lifting time（s) |
≤5.6 |
|
Total cycle time(lifting, dumping, lowering)（s) |
≤10 |
|
steering angle（°） |
35 |
|
Min turning radius（MM） |
4800 |
|
Wheel base（MM） |
2580 |
|
Tread（MM） |
1870 |
|
Min.ground clearance（MM） |
417 |
|
Overall dimensions (l×w×h)mm（MM） |
7550*2385*3145 |
|
travel speed（km/h） |
|
|
Forward gear I |
0～6.8 |
|
II |
0～12 |
|
III |
0～23 |
|
IV |
0～35 |
|
reverse gear I |
0～8.5 |
|
II |
0～27 |
|
Engine Model |
Cummins 6BT5.9-C125-II |
|
Type |
In line, water cooled, four stroke, dir.inject |
|
Rated power（kW） |
92 |
|
Rated speed（rpm） |
2200 |
|
acrot orque（N·m） |
480 |
|
Brake system |
|
|
Service brake |
Gas-liquid caliper disc brake |
|
Parking brake |
Control with brake manual gas |
l 3T wheel loader for construction and mining applications
l Powerful engine and hydraulic system
l Maximum load capacity of 3 tons
l Bucket capacity of 1.7 cubic meters
l Comfortable and spacious cabin with adjustable seat and air conditioning system
l Maximum speed of 36 km/h and can climb slopes of up to 30 degrees
l High breakout force and dump clearance for handling heavy materials and loading trucks quickly
l Optional attachments available, such as forks, snow blades, and rock buckets
l Reliable and cost-effective choice for increasing productivity and efficiency on construction or mining sites.
Facebook https://www.facebook.com/zhengtai.taian/
Product description

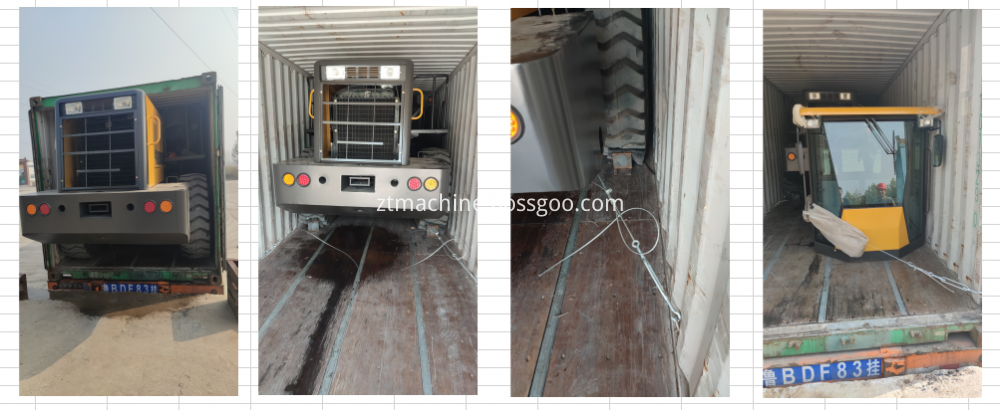

Packing & Delivery
Container 40HC 1 units can be installed
1.Standard packing, the machine body is without packing, but the machine will be well fastened and fixed in the container by wire rope.
2. spare parts or wearing parts will be packed in wooden box or paper carton.
3. Standard shipping method is by container.
