HQJ-B Paper Cutting Machine1
2 year ago
Product details
HQJ-B Paper Cutting Machine
Performance and characteristics
1.This paper cutting machines is suitable for cutting big rolling packaging materials such as paper, paper-plastic, multi-color laminated material, etc.
Main Technical Parameters
Main Specification
1.Unwinding unit
Pneumatic airshaft paper shaft 1000kg
(4) Paper roll inner diameter:3""
(5) Air cylinder drive unit:
(6) Paper guiding roll and shaft
(7) Auto tension control
(8)unwinding tension using magnetic powder control system (20 kg)
(9)Automatic EPC correction system
(10)slitting device
2.Main machine part
(1) Shaft :Trough steel and high quality steel plate structure in 10mm thickness
(2)Main machine adopts frequency control control (3 KW)
3.Traction device:
(1) Structure style:active traction and passive press fasten style
(2) Based seat is casting structure ( 1set)
(3) Traction roller is rubber roller(Spec:2unitφ85×1450mm)
(4) Press fasten style: controlled by pneumatic
(5) Press fasten cylinder:(2unitφ40×20mm )
(6) Transmission guide roller: aluminum guide roller(Spe.:5unitφ75×1450mm)
(1) Adopt servo motor control system Inovance brand
(2) Drive style: drove by main motor and traction through active roller
(7) Whole material-delivery structure will be controlled by displacement sensor
5 . Cutting Unit
(1) Cutting style: fix well the lower cutter and cut actively by upper cutter
(2) Cutter holder: adopts casting heavy style structure
(5) Lubricating oil can be recycled using
(6) Both upper and lower cutters adopts bar style imported steel cutter
(7) Cutting blade (Spec.Thickness×width×Length:15×80×1450mm)
(8) Cutter position can be adjustable by hand
(9) Active transmission style: main motor transmission equipped with derailleur enable centrifugal wheel joined with connecting pole to run cutter reciprocating
6. Paper sheet collection
(1)Automatic sheet collection
(2) Lifting motor adopts 1.5kw frequency converter adjusting speed
(3)Lifting automatic with sensor inspecting ,auto lifting down
(4)Right and left stacking adopts DC motor,the width stacking can be adjustable
2.The electronic original adopts the French "Schneider" brand
3. The system designed with Inovance
1.This paper cutting machines is suitable for cutting big rolling packaging materials such as paper, paper-plastic, multi-color laminated material, etc.
2.It adopts servo motor for controlling constant-length cutting.
3.It adopts pneumatic, photoelectric sensor for controlling transmission system, with photo, electric, gas together.
4.It has the functions of easy operation, high precision, good stability, low noise.
5.This machine has the functions of the frequency converter timing device, automatic counting, stop working by alarm and tension adjustment by magnetic powder or manual with friction unit.
Main Technical Parameters
| Model | HQJ-1400B |
| Max. width of cuttin | 1400mm |
| Cutting thickness | 60-500 g(0.06~0.50mm) |
| Max diameter of material ( shaftless) | Φ1400mm (Maximum 1000kg) |
| Length of cutting | 0-1200mm |
| Speed | 160 order/min |
| Precision of fixed length | ±0.2mm |
| Total Power | 9.5 kw (380V 50 HZ ) |
| Weight (approx.) | 3200KG |
| Overall dimension(L*W*H)mm | 5600*2200*1800 |
1.Unwinding unit
Pneumatic airshaft paper shaft 1000kg
(1)Maximum paper roll diameter:1400mm(55")
(2)Maximum paper roll width:1400mm
(3) Minimum paper roll width:300mm(13.7")(4) Paper roll inner diameter:3""
(5) Air cylinder drive unit:
(6) Paper guiding roll and shaft
(7) Auto tension control
(8)unwinding tension using magnetic powder control system (20 kg)
(9)Automatic EPC correction system
(10)slitting device
2.Main machine part
(1) Shaft :Trough steel and high quality steel plate structure in 10mm thickness
(2)Main machine adopts frequency control control (3 KW)
3.Traction device:
(1) Structure style:active traction and passive press fasten style
(2) Based seat is casting structure ( 1set)
(3) Traction roller is rubber roller(Spec:2unitφ85×1450mm)
(4) Press fasten style: controlled by pneumatic
(5) Press fasten cylinder:(2unitφ40×20mm )
(6) Transmission guide roller: aluminum guide roller(Spe.:5unitφ75×1450mm)
(7)Traction motor adopts servo motor 3kw,Drive in-phase fix the length
(8)Length can be adjustable by micro-computer
(9)Traction adopts frequency control control (1.5 KW)
4 . Material delivery structure (1) Adopt servo motor control system Inovance brand
(2) Drive style: drove by main motor and traction through active roller
(3)Transmission: adopts triangle belt and belt wheel together structure
(4)Material-delivery: adopts floating backrest structure for buffer action to keep material
(5)Floating upper and lower tension adopts pneumatic traction Cylinder
(6) Floating guide roller: adopts aluminum guide roller (7) Whole material-delivery structure will be controlled by displacement sensor
5 . Cutting Unit
(1) Cutting style: fix well the lower cutter and cut actively by upper cutter
(2) Cutter holder: adopts casting heavy style structure
(5) Lubricating oil can be recycled using
(6) Both upper and lower cutters adopts bar style imported steel cutter
(7) Cutting blade (Spec.Thickness×width×Length:15×80×1450mm)
(8) Cutter position can be adjustable by hand
(9) Active transmission style: main motor transmission equipped with derailleur enable centrifugal wheel joined with connecting pole to run cutter reciprocating
6. Paper sheet collection
(1)Automatic sheet collection
(2) Lifting motor adopts 1.5kw frequency converter adjusting speed
(3)Lifting automatic with sensor inspecting ,auto lifting down
(4)Right and left stacking adopts DC motor,the width stacking can be adjustable

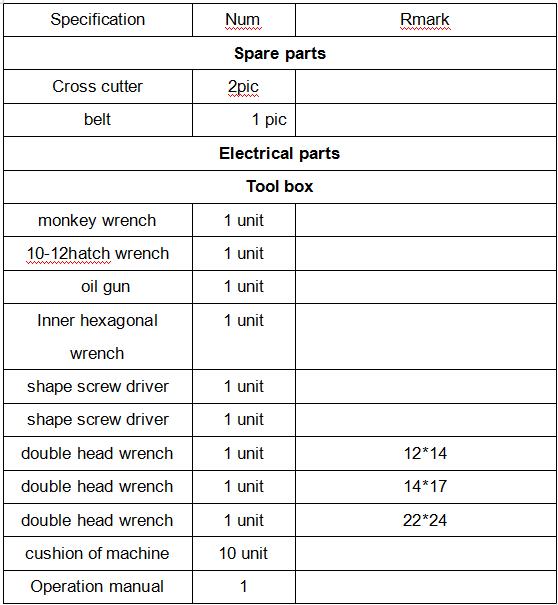

7.Electical control part:(PLC Control )
1.The whole machine adopts PLC control2.The electronic original adopts the French "Schneider" brand
3. The system designed with Inovance
