D150F750 DIY astronomical primary mirror

4 year ago
123 0
Product details
D8-50.8mm optics mirror lens protective aluminium mirror


The product details as following list:

Optical Mirrors are used for beam deflection, interferometry, imaging or illumination. Using polished glass or metal as the substrate, the beam hits the surface to form a specular reflection.
In order to obtain as much reflected light as possible, a layer of reflective film, including metal film and dielectric film, is often coated on the substrate. Commonly used materials for metal films are: aluminum, silver, and gold. Aluminum has high reflectivity from the ultraviolet region to the infrared region. At the same time, a layer of aluminum oxide can be formed on the surface of the aluminum, so the film layer is firm and stable. The silver film has high reflectivity in the visible and infrared regions, and the polarization effect introduced by changing the incident angle is also very small. Gold film has high reflectivity in the infrared region, and its strength and stability are better than silver film, so it is often used for infrared reflection. The metal film is soft and easy to be scratched and damaged, so a protective film is often coated on the metal film. The metal film mirror is not sensitive to the incident angle, it only needs to meet the geometric reflection conditions, and can be used in a relatively wide wavelength range.
Generally speaking, metal film mirrors can already meet the needs of optical instruments. If higher reflectivity is required, multi-layer dielectric reflective films and dielectric reflective films can be used to improve reflectivity and reduce absorption loss. The incident angle and wavelength will affect the reflection efficiency of the dielectric film, and the incident angle is generally marked: 0° or 45° and a specific working wavelength range. The incident angle and wavelength will affect the reflection efficiency of the dielectric film, and the incident angle is generally marked: 0° or 45° and a specific working wavelength range.

Material Size Thickness Size Tolerance Thickness Tolerance Parallism
H-K9L dia 5.0mm 2 +0.0/-0.1mm ±0.2mm < 3 arcmin
H-K9L dia 6.3mm 2 +0.0/-0.1mm ±0.2mm < 3 arcmin
H-K9L dia 10mm 2 +0.0/-0.1mm ±0.2mm < 3 arcmin
H-K9L dia 12.5mm 2 +0.0/-0.1mm ±0.2mm < 3 arcmin
H-K9L dia 15.0mm 2 +0.0/-0.1mm ±0.2mm < 3 arcmin
H-K9L dia 20.0mm 2 +0.0/-0.1mm ±0.2mm < 3 arcmin
H-K9L dia 20.0mm 4 +0.0/-0.1mm ±0.2mm < 3 arcmin
H-K9L dia 25.0mm 2 +0.0/-0.1mm ±0.2mm < 3 arcmin
H-K9L dia 25.4mm 4 +0.0/-0.1mm ±0.2mm < 3 arcmin
H-K9L 25*25mm 2 +0.0/-0.1mm ±0.2mm < 3 arcmin
H-K9L dia 30.0mm 3 +0.0/-0.1mm ±0.2mm < 3 arcmin
H-K9L dia 38.0mm 4 +0.0/-0.1mm ±0.2mm < 3 arcmin
H-K9L dia 40.0mm 4 +0.0/-0.1mm ±0.2mm < 3 arcmin
H-K9L dia 50.0mm 4 +0.0/-0.1mm ±0.2mm < 3 arcmin
H-K9L dia 50.8mm 4 +0.0/-0.1mm ±0.2mm < 3 arcmin
H-K9L 50*50mm 4 +0.0/-0.1mm ±0.2mm < 3 arcmin

RTS Dia 8-50.8mm optics mirror lens protective aluminium coated optical mirror


We are good at producing optical lens,including Protected Aluminum Mirror,UV Aluminum Mirror,Protected Silver Mirror,Protected Gold Mirror,Parabolic Mirror,Dielectric Coatings Mirror.
If you are interested,We will give you a most favorable price, and send samples for your reference and testing.


 RTS Dia 8-50.8mm optics mirror lens protective aluminium coated optical mirror



customized product

Production equipment

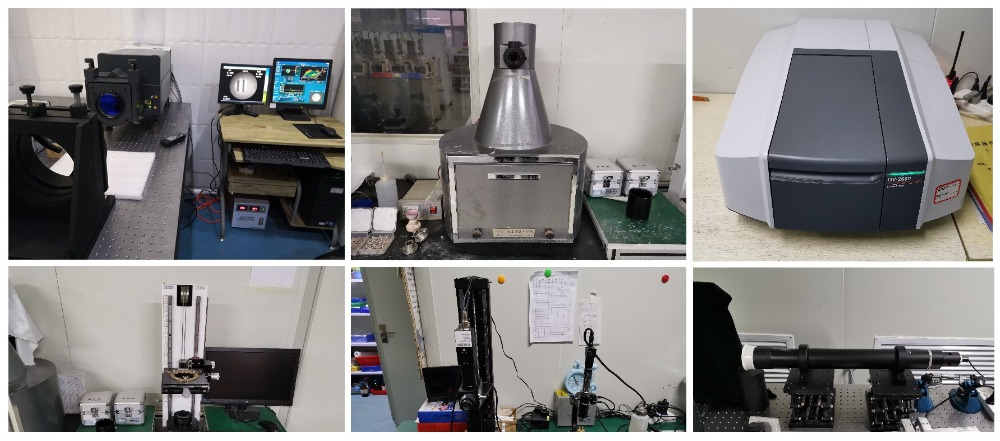

Inspection equipment

Company Information
