High speed CNC can ends making line
4 year ago
Punch press machine making metal end cap
Punch press machine making metal end cap
|
Product Name
|

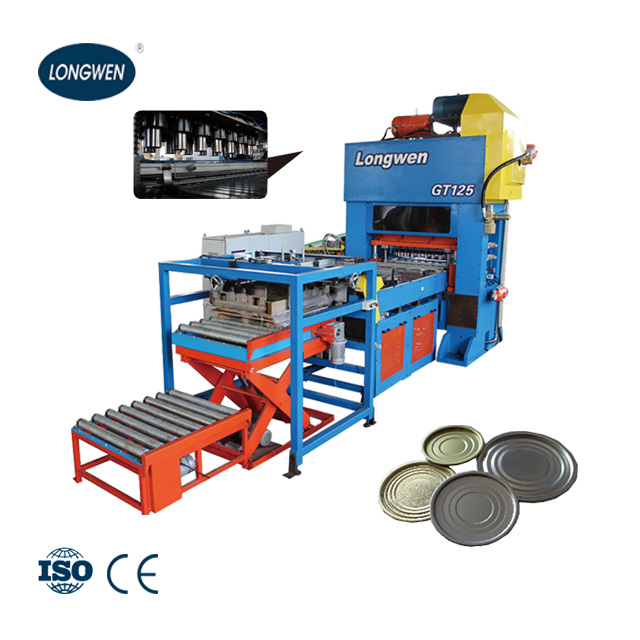

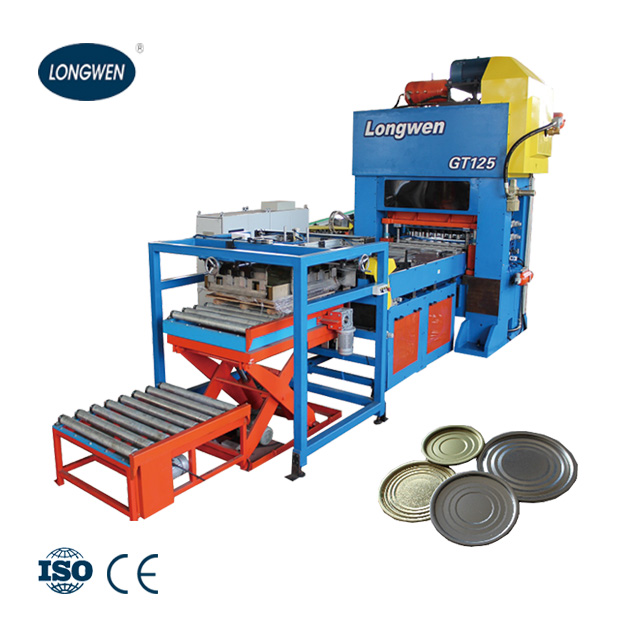

CNC Sheet Feed Press
|
|
Model
|
GT2A125
|
|
Material
|
stainless steel
|
|
Nnominal Pressure
|
125KN
|
|
Press stroke
|
50 mm
|
|
Stroke per min (MAX.)
|
220 SPM
|
|
Tooling max.
|
16-out
|
|
Adjustment of die shut height
|
10 mm max.
|
|
Max. Capacity
|
3000 EPM
|
|
Die shut height
|
385 mm Max.
|
|
Ram lift height
|
100 mm
|
|
Punch table dimensions
|
1220×700mm
|
Advantages:
♥ Simplified the sheet feeding system to increase the capacity
♥ Both aluminum and tinplate, coil and sheet can be punched
♥ with a counter
♥ With temperature monitoring to protect the machine always
♥ The ram can be lift quickly
♥ With a position indicator of crankshaft
♥ Hydraulic overload protection system is installed on the ram directly in order to report pressure overload timely and protect the critical dies
♥ With hydraulic lock, the machine precision and the die life can be ensured
♥ With variable frequency driving motor
♥ With lubrication monitoring, the effective lubrication can be ensured
♥ With centralized adjustment for the mechanical shut height
♥ With servo-drive system, the sheet feeding precision can be ensured
♥ With automatic control and self-diagnosis on display upon the occurrence of troubles, the machine is easy to op
Applicable end type
|
model
|
End for food and beverage can
|
shell for easy open end
|
End for milk powder can
|
Ring for milk powder can
|
End for aerosol can
|
Shell for aerosol can top end
|
End for paint can
|
|
GT2A125
|
√
|
√
|
1. What is LONGWEN -Machinery feature goods?
LONGWEN is leader Producer in:
-Metal can making machine and line solution/3pcs can making line/ Irregular shaped can making machine
-Metal end making machine and line solution/Aerosol cone line/Peel off end making line
-DRD can making machine and line solution
-Twist-off cap making machine and line solution
2. LONGWEN’s main market
-Southeast Asia / Middle East / Central and South America / Africa.
3. Any oversea service or not?
-Of course yes! .We will send our engineers to your factory to install the machines and train your staff how to operate the machines. This will be our after-sales service.
4. What’s your guarantee of the quality if we buy your machines?
-We offer you high quality machines with 1 year guarantee and lifetime support for the provision of technical services.
5. What's your delivery time?
-Usually 45-90 days, depends on your projects.
