Automatic flanging beading seaming milk powder can making production line machine
5 year ago

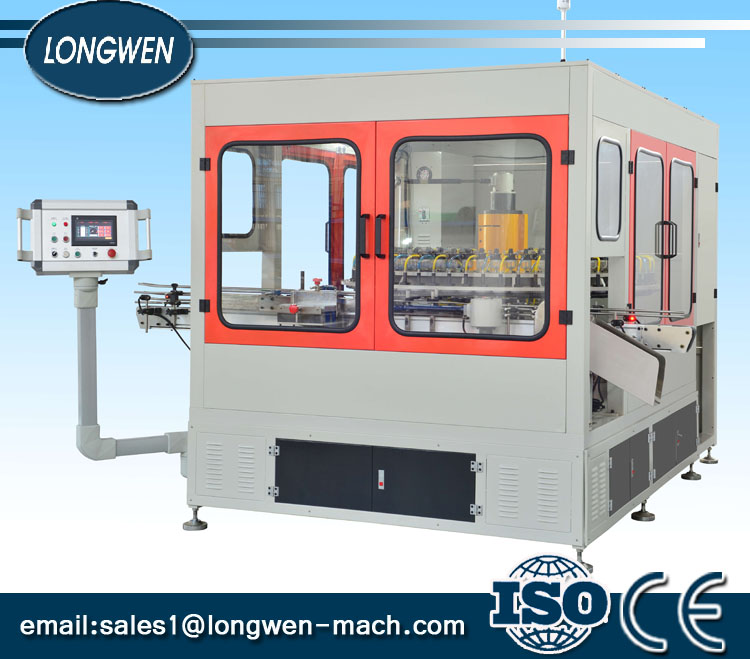

Chemical Tin Can Box Production Line Automatic Welding Machine
|
Product name
|
Can body welding machine
|
|
Model
|
NEW DODO-300D
|
|
Welding Speed
|
36m/min(max)
|
|
Production Speed
|
Max. 250cans/min
|
|
Welding Points Distance
|
0.5~0.9mm
|
|
Overlap
|
0.25~0.5mm
|
|
Sheet thickness
|
0.16~0.30mm
|
|
Can Inner Diameter
|
99~153mm
|
|
Can Height
|
65~265mm
|
|
Material
|
Tinplate, Ni plate
|
|
Hardness
|
T2.5~DR8
|
|
Copper Wire
|
1.24~1.38mm
|
|
Welding Frequency
|
200~450Hz
|
|
Compressed Air
|
>800L/min , >0.5MPa
|
|
Coolong Water
|
>0.5MPa , 12~18℃, 20L/min
|
|
Power Supply
|
380V, 50HZ, 24KW
|
Main feature:
♥ Equipped with the most advanced man-computer interface device, the whole operation can be made on the touch screen.
♥ Equipped with Schneider Electric Control System for all electrical elements and Servo Motor Control System.
♥ Equipped with adjustable electronic static inverter power supply.
♥ Equipped with failure self-detected system, system arlarms automatically and provides the solution proposal.
♥ Equipped with copper-wire profiling roller in ceramic, improve the insulation quality and lower the consumption.
♥ Equipped with the very durable ceramic unit on the can conveying system to reduce wear out.
♥ Equipped with the standard mercury lower welding roller, non-mercury welding roller also available as a option.
♥ Lower welding arm available for both internal powder coating and internal lacquer spraying coating with Nordson pump.
