520 double wire binding machine
5 year ago

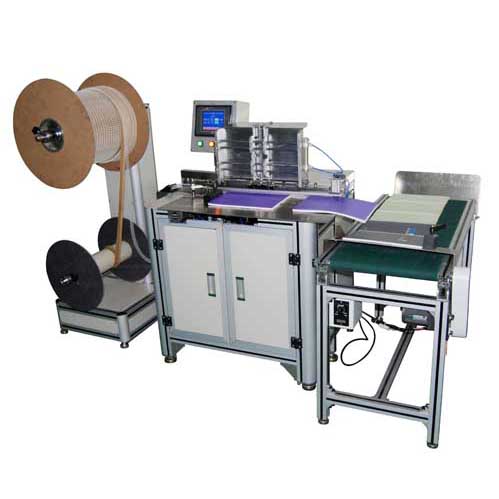

DWB520 semi automatic double wire binding machine
Specifications:
1. Working speed up to 1200 ~1800 books per hour
2. Binding diameters can be 1/4"- 9/16", pitch can be 3:1 or 2:1
3. Skip-binding at one time is available, up to 5 skips binding once
4. Touch screen and automatic error reminder
5 Automatic hanger binding device, automatic books convey device
6. New slide-type pneumatic components extend the machine life and ensure the machine stability
Parameters:
|
DWB-520 Specifications |
|
|
Feeding Model |
manual delivery |
|
Wire spec |
auto cut, bind |
|
Max. Paper Width |
520 mm |
|
Max. Binding Width |
507mm |
|
Min. Paper length |
75mm |
|
Working Speed |
1,200-1800 t/hour |
|
Size of Worktable(W*D) |
600*300mm |
|
Air Compressor(not include) |
1.5 KW |
|
Air Pressure |
6-8 ba |
|
Main Machine Dimensions |
1,000*760*1,230 mm |
|
Net Weight |
400 KG |
|
Dimensions of pay-off unit |
490*760*1230mm |
|
Net weight |
500 KG |
