CA35T 1.5'' Threaded Dust Collector Pulse Jet Solenoid Valve 24V 110V 220V

1 1/2'' CA35T Goyen Type NBR Diaphragm Valves

Since people now have higher requirements for living environment, and some factories have higher requirements for the production environment, this time requires dust removal equipment to carry out dust removal. Now there are many dust removals equipment, such as the current bag filter, can truly become a device that people will know and is required in many occupations.

Nowadays, such bag-type dust removal equipment can play a good role in dust removal, still due to this equipment, the main is the pulse jet valve used to carry out the dust removal, and then through the dust bag to complete the current dust filtration, reached a good dust removal effect. BRANDO is a professional manufacturer and exporter of dust collector pulse jet valves. Our CA35T diaphragm valves are sold overseas and are well praised. We provide not only quality products, but also professional technical consulting services.

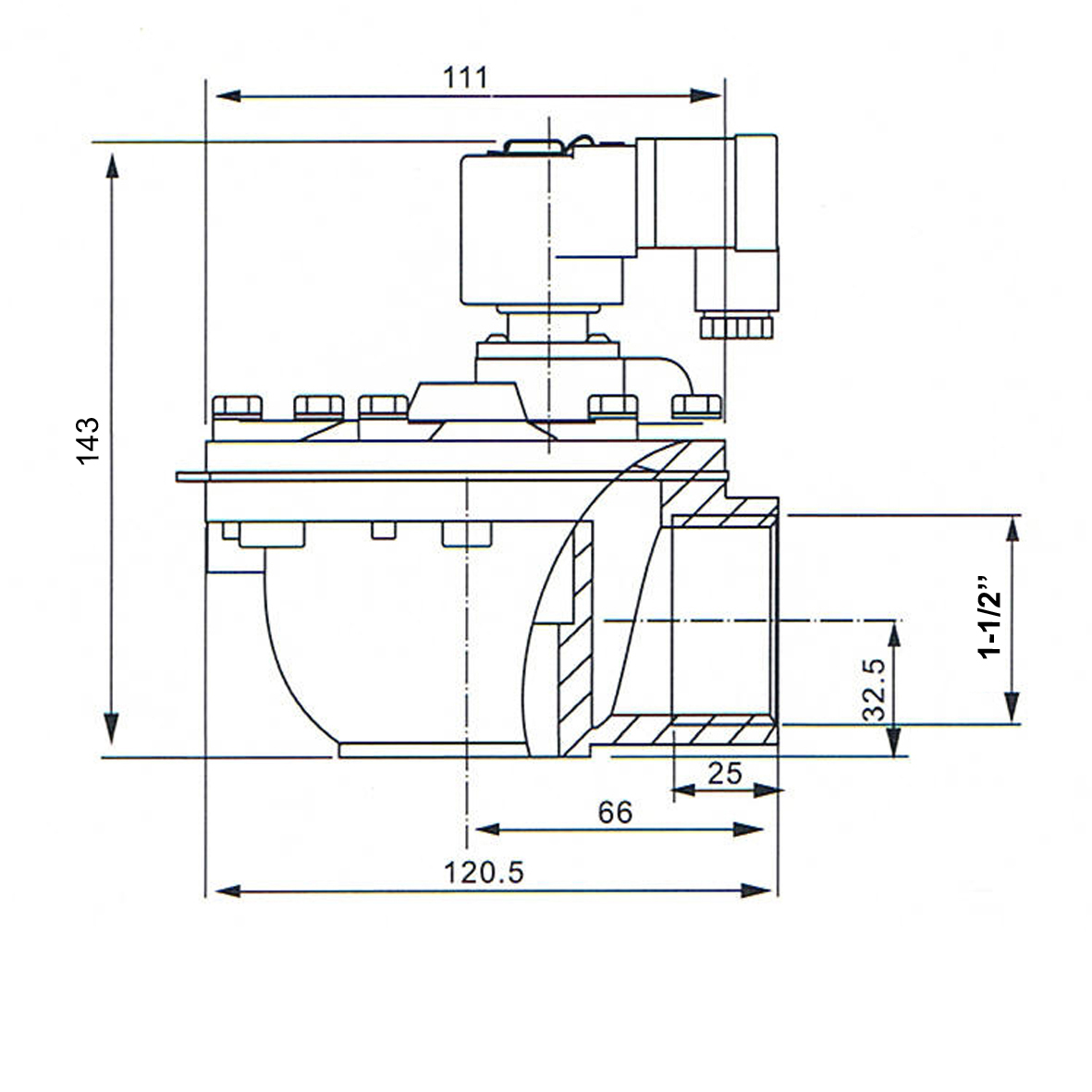

Overall dimension of CA35T 1 1/2 Inch Dust Collector Valve:

Details show of CA35T Integral Pilot Impulse Diaphragm Valve:

Technical data of Goyen Replacement T Series Pulse Jet Valves:

Pulse jet valves common fault handling methods:

After the pulse solenoid valve is put into use, some or most of the pulse valves will be leaked from the large vent hole of the valve after being energized, resulting in a [resonance phenomenon" of the diaphragm, even a spring break and a diaphragm breakage.Our company not only provides the CA35T pulse valve as a whole, but also all the accessories related to the right angle type pulse valve.

1. The air bag capacity is too small, or the air supply pipe of the air bag is too small, and the air supply after the injection is insufficient, the pulse solenoid valve cannot be closed normally (closed), and the diaphragm oscillates (resonance phenomenon).

Treatment: connect several small air bags into a large-capacity gas storage circuit; place the gas-regulated gas tank as close as possible to the dust collector air bag and add the air-filled gas supply pipe.

2. There is no installation of water, oil and sewage separation triple parts at the site. There is no sewage valve or sewage valve under the air bag has not been opened for a long time. Water and debris enter the valve, blocking small diaphragm air pins and small air outlets. As a result, the pulse solenoid valve cannot be turned off instantaneously, resulting in a "resonance phenomenon". The push rod was slammed and the diaphragm could not be reset normally.

Treatment: The quality of the compressed gas must be handled well: connect the freeze-drying, install the triple piece, install the automatic or manual drain valve in the air bag and manage and maintain it regularly. Then remove all diaphragms of the pulse solenoid valve, check if it has broken and need to be replaced, clean the internal piping of the pulse valve, or replace the entire pulse valve.

3. The pulse width of the pulse solenoid valve is too long, and the coil is energized for a long time, which causes electromagnetic memory. The push rod in the electromagnetic pilot valve cannot be reset, the diaphragm cannot be closed, the residual pressure in the air bag is too low, and the air supply is insufficient. .

Solution: Replace the pulse solenoid push rod and replace the upper cover of the small diaphragm if necessary.

4. The pulse gap of the pulse solenoid valve is too frequent and the air bag capacity is too small, so that the residual pressure in the air bag after injection is too low, and the air supply pressure is insufficient. The last few valves in each air bag cannot be reset and leak.

Solution: Check the input of the pulse width of the pulse solenoid valve, and adjust the pulse width from 100ms to 200ms. Replace the solenoid pilot valve coil that has generated electromagnetic memory. Increase the air bag capacity according to the above improvement scheme. If it is not feasible, it is necessary to extend the blowing gap or increase the air bag pressure to ensure the speed of the air bag.
